Minix Neo Z83-4U Ubuntu Edition Mini PC TV Box review

May 6,2019 0

4. CPU tests



Review Pages

1. Features, specs
2. Unboxing, main unit
3. Booting up
4. CPU tests
5. 4K video and HD audio tests
6. Summary

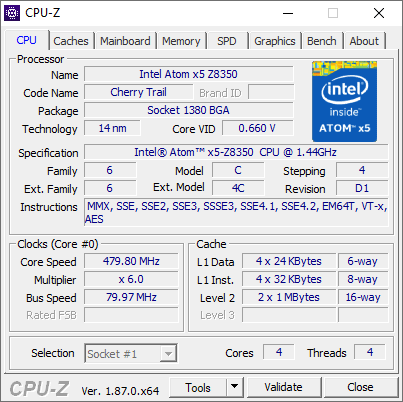

The Intel Atom x5-Z8350 processor was announced on February 8, 2016. It is a 64-bit, ultra-low power (2W) quad-core SoC clocked at a base frequency of 1.44 GHz with a burst up to 1.92 GHz. The chip supports up to 4 GB of memory and packs the HD Graphics (Cherry Trail) GPU:

The installed memory runs at 1600MHz at CL11:

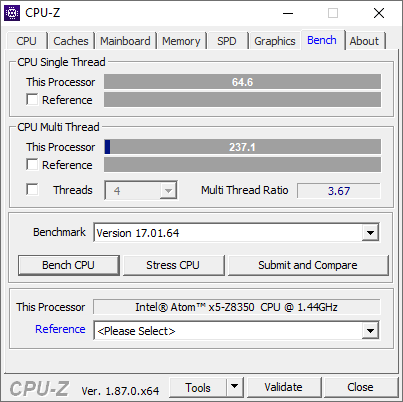

Below you see the a CPU benchmark provided by the CPU-Z software:

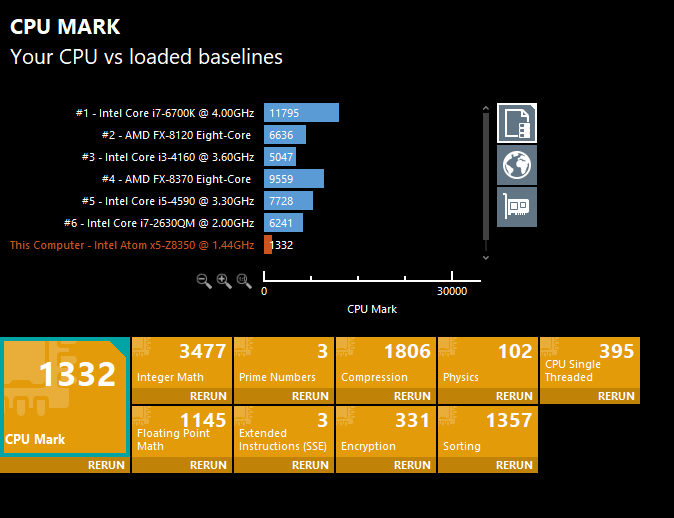

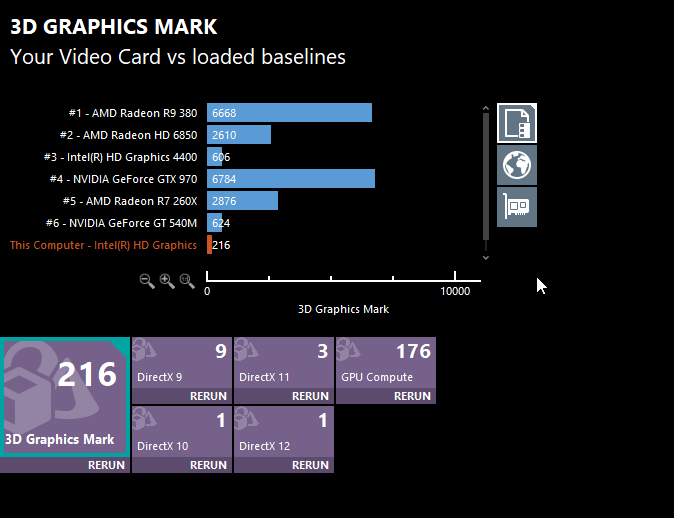

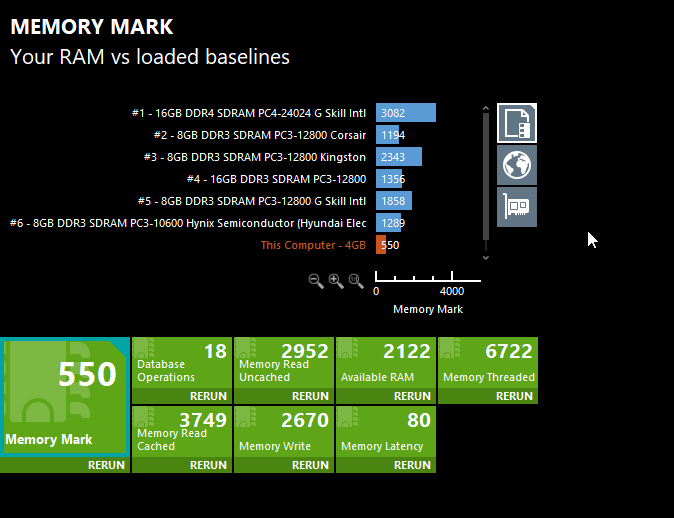

Below you see more benchmark statistics and comparisons with other desktop CPUs, provided by the online PassMark software archive:

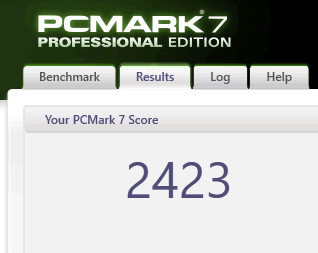

In the PCMark 7 benchmark, the system scored 2423 points:

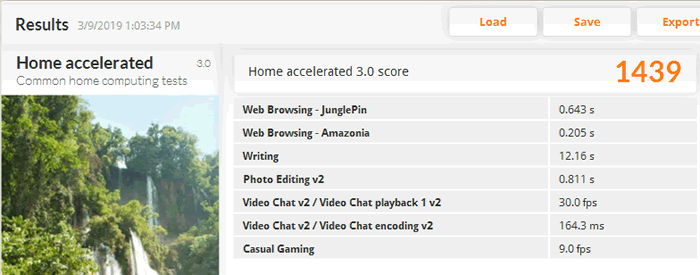

Below you see more benchmark resultsby PCMark 8 and PCMark 10:

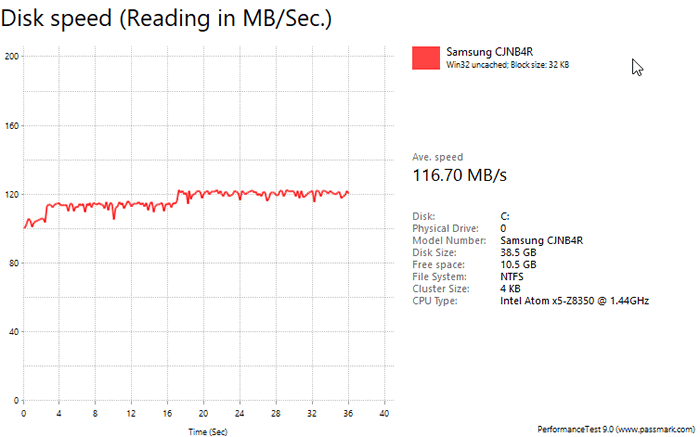

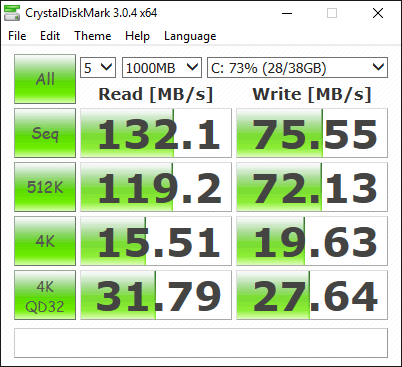

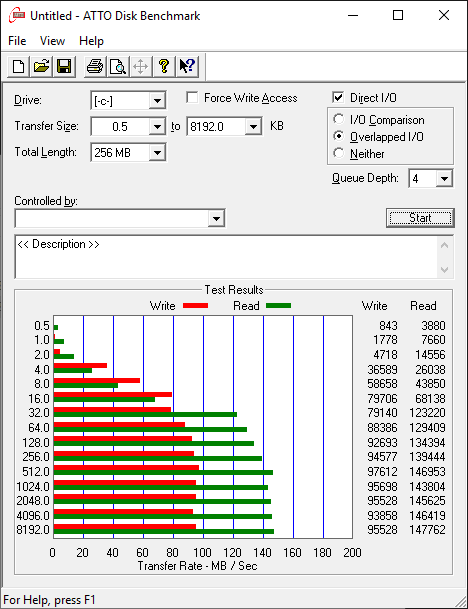

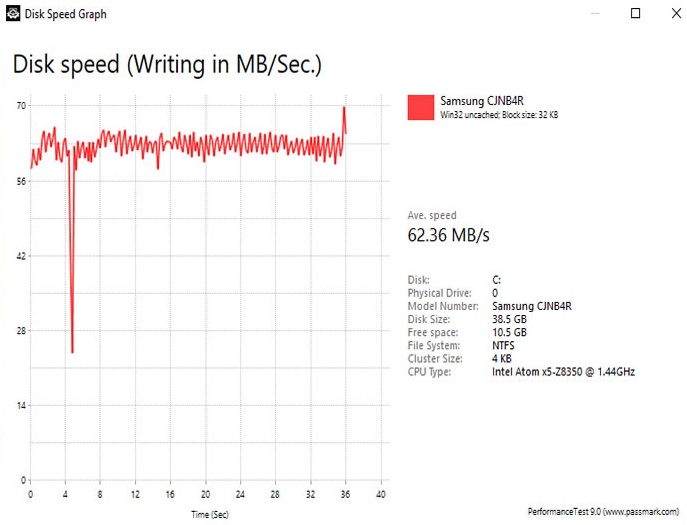

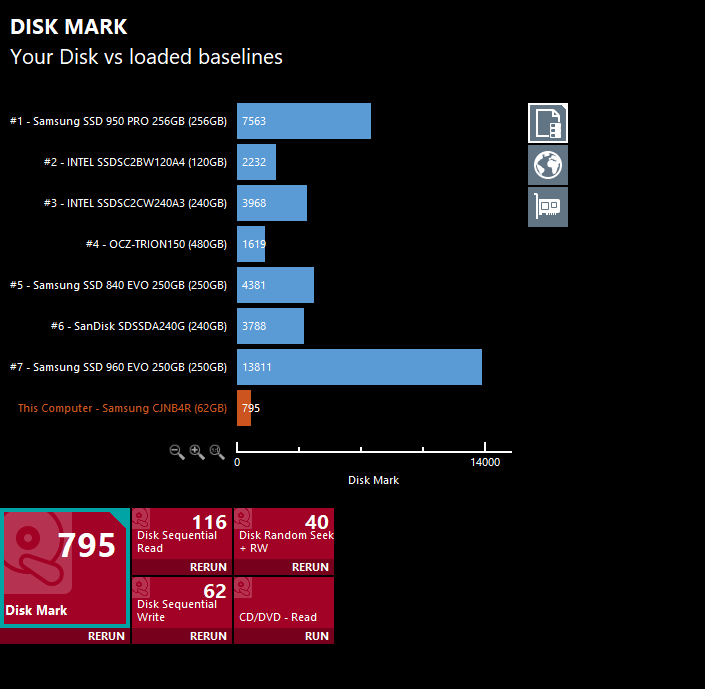

The read/write speeds of the eMMC drive of the Minix Neo Z83-4U system are adequate, reaching 130-140Μb/sec for read and 70-75Mb/sec for write.

On the otehr hand, the older Minix Neo Z83-4 returned 118~130Mb/sec and 39~72Mb/sec for read and write, respectively. This device uses an eMMC v5.0.



The reported CPU temperatures are relatively low and did not exceed the 50 degrees Celcious thoughout testing and under full load:
