Home > Hardware Reviews > Graphics Cards

Tuesday, June 01, 2004
VGA Roundup

3. Asus V9950 FX 5900 GE

ASUS V9950 FX 5900 GE 128MB

HomepageAlthough Asus' 5900 VGA card has been released on the market a long time time ago, it is still one of the top FX models based on the NV35 GPU currently available. So, even for comparison reasons the V9950 is a good reference. We have in our hands the V9950 FX 5900 Gamer Edition. Although this card belongs to the previous generation, in this review you will also be able to see the card's performance in the latest cutting edge games.

- Specifications

Memory Bus Width
Memory interface 256 Bit DDR
Memory Type BGA DDR2
Core Clock 400 MHz
Memory Clock 700 Mhz (2x350)
Memory Bandwidth 22.4 GB/sec
Pixel FillRate 3.2 Gpixels/sec
Geometry rate 300 Mtriangles/sec
Bus 8x/4x/2x AGP
Processing technology 0.13µ
Output Connections VGA + TV + DVI
Cooling single-slot Fansink
2D Display 32 bit Resolutions & Hz 640x480@240, 800x600@240, 1024x768@200, 1152x864@170, 1280x1024@150, 1600x1200@100, 1920x1440@75, 2048x1536@60
3D Maximum resolution 2048x1536 with 16.7M colors
Anisotropic Filtering modes (AF) 2x/4x/8x
Full Scene Anti-Aliasing (FSAA) modes 1x/2x/4x/6x/8x
Dual Display Supported
Pipelines 4
Texture units per pixel pipeline 2
Technologies supported

- Intellisample HCT is a new compression scheme for better compression at high resolutions with Anti-Aliasing.
- UltraShadow Technology enables a Higher Quality and cinematic experience in games
- CineFX 2.0 Engine delivers cinema-quality video to your PC
- LMA II contains a lossless form of Z-compression, saving memory bandwidth for higher performance

Pixel Shader Support 2.0+
Vertex Shader Support 2.0+
DTV/HDTV decoding
System requirements

The recommended system requirements for the card and complementary software:
- PC with Pentium 4 / III 450 MHz or AMD Athlon processor with AGP 4x/8x universal slot
-64MB of system memory
-8x speed CD-ROM drive, DVD playback requires DVD drive
- Windows 2000, 98SE, ME, XP and DirectX 9.0
- Microsoft DirectX 3.0 compatible sound card

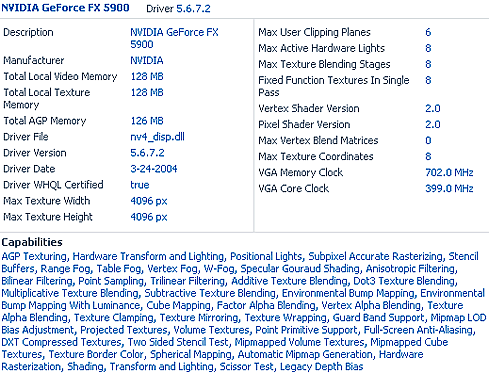

- 3D Mark detailed specifications

- The chipset

Click to enlarge

With that golden fan the card looks really nice. Also two golden heatsinks cover the DDR2 memories.

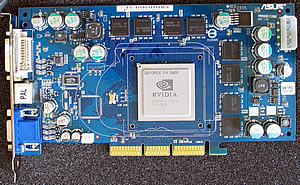

After removing the peachy fan, the two memory heatsinks and the heat paste conductor we were able to see the following:

Click to enlarge

Asus V9950 GeForce 5900 exposed for your eyes only.

Click to enlarge

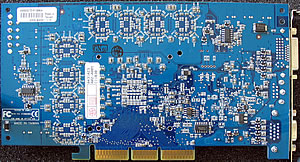

Back side

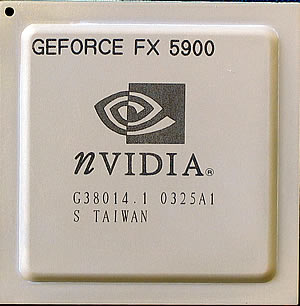

A closer look at the "brain" of the card,

and the memories. Samsung as usual.

As you can see from above, the Asus FX 5900 is equipped with the following outputs: one VGA, one DVI, and one video out.

- The package

The software bundle contains several tools: ASUS Tweak (overclocking), ASUS SmartDoctor (hardware monitoring), ASUS Video Security, Digital VCR and ASUS Live Update. The card also includes the ASUS DVD XP v4.0 DVD player software and the ASUS GameFace for real-time video/audio communication.

The gaming bundle is a great variety of last year's great games and it's consisted of "Gunmetal" (2003), "Battle Engine Aquila" (2003) and "Delta Force - Black Hawk Down" (2003). A compact disk with the latest gaming demos ("Splinter Cell," "Warcraft III," "Big Mutha Truckers," "Breed," "Colin McRae Rally 3," "Toca Race Driver") is also included. The greatest variety of software we have ever seen.
