Home > Hardware Reviews > Graphics Cards

Monday, July 08, 2013
HIS Radeon HD 7850 4GB iPower IceQ Turbo, Radeon HD 7950 IceQ X2

3. Meet the HIS Radeon HD 7950 IceQ X2

Model Name HIS 7950 IceQ X² Boost Clock 3GB GDDR5 PCI-E DVI/HDMI/2xMini DP
Chipset Radeon HD 7950 PCIe Series
ASIC RadeonTM HD 7950 GPU
Manu. Process (Micron) 28nm
Memory Size (MB) 3072
Memory Type GDDR5
Engine CLK (MHz) 850MHz (Boost Clock 950MHz)
Memory CLK (Gbps) 5Gbps
Memory Interface (bit) 384bit
Power Supply Requirement 500 Watt or greater power
Max. Resolution 4096x2160 per display (DisplayPort 1.2)
2560x1600 per display (Dual-link DVI)
2048x1536 per display (VGA)
Bus Interface PCI Express 3.0 x16
Mini Display Port Yes
HDMI Yes
DVI Dual-link DVI-I
VGA No

Below you see the HIS Radeon HD 7950 IceQ X² Boost Clock edition, a graphics card with a nice 3GB graphics memory.

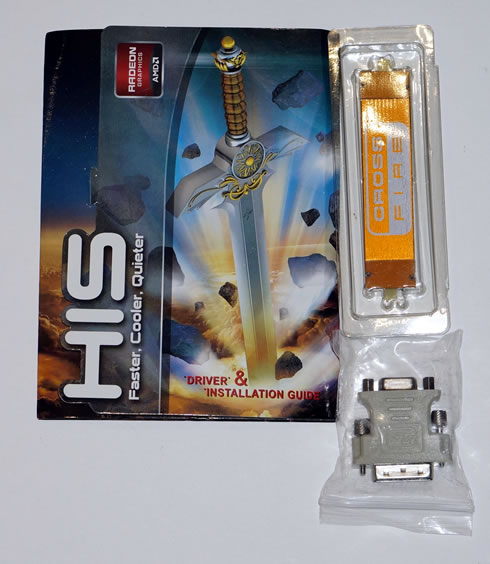

Besides the graphics card, the bundle includes a manual a demo and driver CD, a CrossFireX bridge, power converters and monitor connector converters.

The card is long, due to the extended PCB but mostly due to the cooler. As a result you will need 31CM of free space, that's 12.2 Inches.



This card features the big IceQ X² cooler, which has been designed to keep the card at excellent temperatures versus low noise levels. The card is below 28dB when watching movies or surfing on the web.

The large 2x 89mm dual axial fans draws massive amount of cool air to cool the GPU directly. The Q&C fan blade increases air velocity make cooling more efficient. The fan has a life span of up to 50,000 hours.

3x 6mm and 2x 8mm wide heatpipes optimize cooling performance by removing heat from the core area. A 40x47.5mm copper heatsink provides a large area to dissipate heat. The card also carries memory and mosfet heat sinks to provide extra heat dissipation from these areas.

The card also features fan control and monitoring, you are able to read fan speed & Asic temperature from iTurbo or other softwares.

Two Crossfire connectors are available, meaning that up-to 4-way Crossfire would be your maximum. This 7950 utilizes one 6-pin and a 8-pin power connector, a 550W PSU will be sufficient.

Finally a metal rib provides extra strength to the PCBs to avoid warpage, making the cards extra stable and durable.

  HIS 7950 IceQ X² Boost Clock AMD 7950 Ref Board
Power Input 6+8 6+6
PWM Phase 4+1+1 2+1+1

Connectivity includes two mini display port connectors, HDMI (1.4) and one DVI connector.

We installed the card and fired up the GPU-Z utility, which confirms the card's basic specifications:
