Shuttle XS35GTA v3 review

1. Features, specs

Shuttle has built a respectable name at the market as a maker of compact and high-quality barebones and miniPC systems. Earlier this year the company refreshed its XS35 series, which now includes models with integrated or discrete graphics. The XS35 series now includes the XS35V2, XS35V3, XS35GTA V2 and the XS35GTA V3 models.

The main difference between the latest "V3" models - the Shuttle XS35GTA V3 and the XS35V3 - is related to their graphics power. Depending on your needs, you may choose the XS35V3 that uses the Intel GMA 3650 GPU onboard or the XS35GTA V3, which is equipped with an AMD Radeon HD 7410M GPU. Both models feature HDMI and VGA outputs.

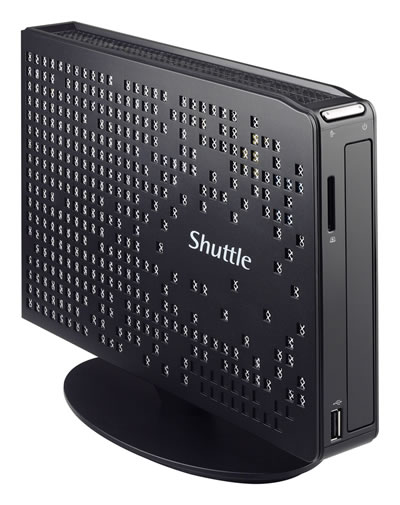

Today we will take a look to the most interesting model of the new series, the XS35GTA V3. The device is powered by an Intel Atom D2700 processor (2.13 GHz), it has two SO-DIMM ports to hold up to 4GB DDR3 RAM and also offers enough space to fit a 2.5" SSD/HDD drive along with a slim-type optical disc drive. A second 2.5" drive can be also fitted instead of the optical drive using the optional PHD2 accessory. The 36 mm thin PC also comes with a card reader, WLAN (n) and Gigabit LAN ports. Peripheral devices (e.g. TV tuner, USB sticks, multi-functional devices etc.) can be connected to the five USB 2.0 ports. Finally, the XS35GTA V3 can be operated in upright position using their seatbase or otherwise attached to the rear side of a monitor using the optional VESA PV01 mount. The recommended retail price for the XS35GTA V3 is €233.00 (ex VAT).

- Specifications


Multiformat card reader
Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked.
Fan-less external power supply
An external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables.
Generous supply of USB ports
This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the Microsoft Windows 7 operating system.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet.
HDMI interface
Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in high quality via the HDMI cable. If your Mini-PC already has a Blu-ray drive, the path to high-definition entertainment is clear.

Below are the full specifications for the XS35GTA V3 (also called XS35GS V3 outside EU).

  • Fanless and silent
    Passive cooling, no fan noise at all
  • Low power consumption
    Power consumption: ca. 19W (idle mode) and ca. 27W (full load)
  • Chassis
    Dimensions without Stand: 25.2 x 16.2 x 3.85 cm (DxHxW) = 1.57 L
    Weight: 2.1 kg net, 2.8 kg gross
    Hole for the Kensington Lock at the back panel
    Optional accessory: 75mm and 100mm VESA mounting kit (PV01)
  • Operation System
    This system comes without operating system.
    It is compatible with Windows 7 (32 or 64 bit)
  • Processor
    Intel Dual Core Atom processor D2700 (Codename: Cedarview)
    Intel Hyper-Threading technology: 2-threads per core
    32 nm manufacturing process, Micro-FCBGA11 package
    Intel 64 architecture, Core clock: 2.13 GHz
    L2 Cache: 1024kB , TDP: max. 10W
    Supports SSE2, SSE3, SSSE3, Execute Disable Bit
    Integrated North Bridge with controller for memory and graphics
  • Passive cooling without fan
    Passive, completely fanless cooling through convective heat transfer
    Warning: Please make sure the system is always placed
    upright using either its stand or the optional VESA mount.
    Ventilation holes must not be blocked to ensure sufficient cooling.
  • Chipset
    Intel NM10 Express Chipset (south bridge)
    Platform Controller Hub (PCH)
    Code name: Tiger Point
  • BIOS
    AMI BIOS in a 8Mbit Flash ROM supports PnP, ACPI 2.0
    Supports external USB flash memory card boot up
    Supports Power fail resume / AC power on state / always on / always off
    Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
    Supports Unified Extensible Firmware Interface (UEFI)
  • Memory
    2x SO-DIMM slots with 204 pins
    Supports two modules DDR3-1066 (PC3-8500)
    DDR3-1333 is supported at DDR3-1066 clock rate
    Supported maximum capacity: 4 GB
  • Optical drive (optional)
    Support an optical DVD or Blu-ray slim-line drive
    Serial ATA interface, 12.7mm height, Slimline SATA connector
  • Hard disk drive/SSD
    Supports one Serial ATA hard disk (5400 / 7200 rpm)
    or one SATA SSD drive in 6.35cm/2.5" format
    The SATA 2.0 interface supports up to 300MB/s data transfer speed
    Supports a drive with 9.5mm height (12.5mm is not supported)
    Supports Unified Extensible Firmware Interface (UEFI)
  • Discrete ATI Graphics
    AMD Radeon HD 7410M graphics processor (Codename "Seymore-LP")
    Dedicated 3D graphics card
    VRAM: 512MB DDR3, 800MHz, 64 bit (no shared memory)
    160 Stream Processing Units, 40nm technology
    Supports DirectX 11, Shader Model 5.0, OpenGL 4.1
    Unified Video Decoder (UVD 3) dedicated video playback accelerator
    Supports full HD decode (1080i/p)
    Support for up to 2 simultaneous displays:
    1) Digital HDMI™ 1.4a, max. resolution: 1920x1200
    2) Analog D-Sub VGA, max. resolution: 2048x1536
    Supports Extended Desktop Mode and Clone Mode
    Supports Blu-ray play back in combination with an optional slim-line
    Blu-ray drive and appropriate software
    Integrated HD audio controller for 7.1 Surround Sound via HDMI.
    Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats.
  • Integrated Audio
    IDT92HD81 Audio Codec with Azalia support
    Two analog audio connectors (3.5mm):
    1) Line out (head phone)
    2) microphone input
    Supports digital 7.1 HD audio via the HDMI port.
  • Card Reader
    Integrated card reader supports SD, SDHC and SDXC memory flash cards
  • Wired Network
    RJ45 connector supports Gigabit LAN at 10/100/1000 Mbit/sec.
    Network controller JMC 251
    Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
  • Wireless Network (WLAN)
    Supports IEEE 802.11b/g/n, max. 150Mbps up-/downstream
    Security: WPA/WPA2(-PSK), WEP 64/128bit, IEEE 802.11x/i
    Half size Mini-PCIe-Card
  • Connectors
    HDMI v1.3 digital video and audio output
    D-Sub/ VGA analog video ( 15 pin)
    5x USB 2.0 (1x front, 4x rear)
    Gigabit network (LAN, RJ45)
    Audio Line-out (head phone)
    Microphone input
    DC input for the external power adapter
  • LEDs and Buttons
    Power button
    Power LED (white)
    Hard disk LED (blue)
  • Power supply
    External 40W AC/DC power adapter (fanless), 19V / 2.1A
    AC Input: 100~240V AC, 50~60Hz
    Automatic voltage adjust
    Dimensions: 89.5 x 37 x 26.5 mm (LWH)
    DC Connector: 5.5/2.5mm (outer/inner diameter)
  • Optional Accessories
    - VESA mount made of metal (PV01)
    - Adapter for second 2.5" drive instead of optical drive (PHD2)
  • 24/7 nonstop operation
    This device is approved for 24/7 permanent operation.
    Requirements:
    - Free circulation of air amongst the PC must be guaranteed.
    - Ventilation holes must be clear.
    - If a hard disk is installed, this must also be approved for permanent operation by its manufacturer (max. one hard disk)
