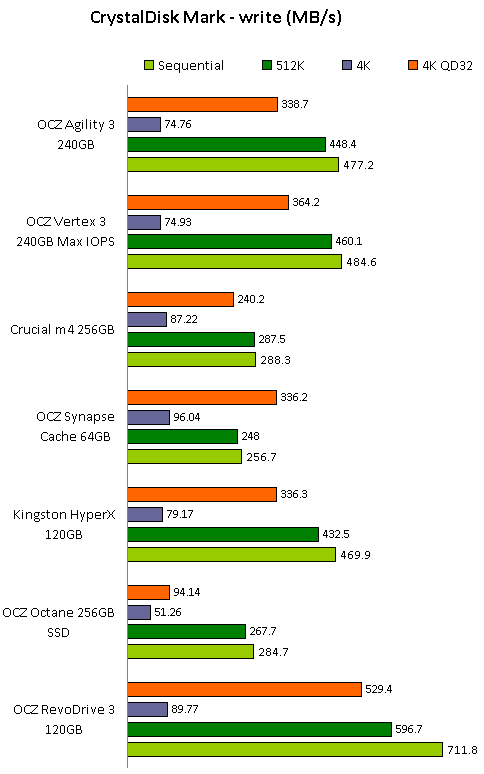

The next benchmark is the CrystalDiskMark. The software provides throughput data based on sequential reads and writes, and random (512K/4K/4KQD32) reads and writes of various sizes.
The RevoDrive3's speeds reached a 829/712 MB/s in read and write sequential operations, leaving most other SSDs behind. The drive also showed its full potential in the 512K (596.7 MB/s ! ) and 4K QD 32 (529.4 MB/s !) writing tests. The RevoDrive 3 has been designed to to exhibit peak performance in a real world environment that uses a Queue Depth higher than 32 after all.
On the reading tests , the RevoDrive 3 120GB SSD was also very fast with large 512KB files and also performed well with 4K and 4K QD32 files:
