Home > Hardware Reviews > Optical Storage

Friday, October 22, 2010
Optiarc AD 7260S review

2. CD, DVD reading

For our CD/DVD transfer rate tests we used the Nero DiscSpeed utility and a set of data and audio CD/DVD R/RW/ROM media. Here we test the maximum reading speed of the Optiarc drive for each type of disc. For comparison, we have included the corresponding reading results two other 24x DVD burners, the LiteOn iHAS524 and the the Optiarc AD-7240S.

-CD-ROM

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 35.14x 36.67x 36.68X
Random seek 98 ms 149 ms 137 ms

- US-RW

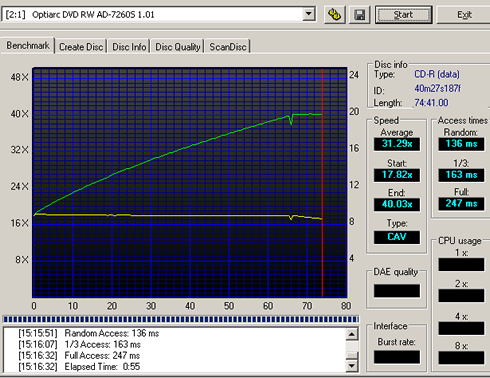

The following CD Speed graph shows the reading performance with US-RW media.

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 29.06x 31.27x 31.29x
Random seek 96 ms 151 ms 136 ms

- AudioCD

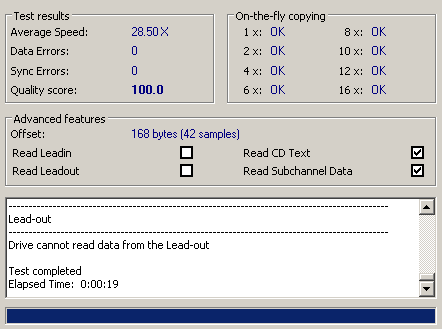

In the CD Speed Advanced DAE quality test, the drive's average speed was 28.50X with a quality score of 100.

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 33.83x 28.49x 28.05x
Quality score 100 99.1 100

- CD DAE

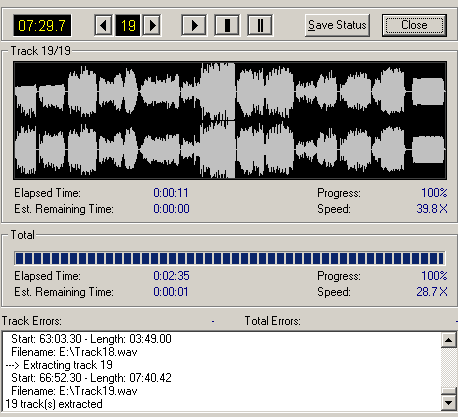

A typical audio ripping task finished at an average reading speed of 28.7X:

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 33.3x 28.7x 28.7x

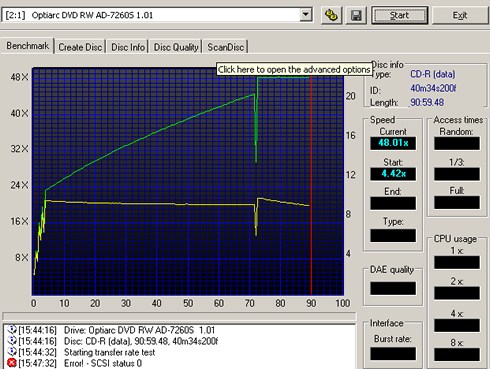

- 90 mins Audio disc

90min Audio disc

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 28.71x 36.78x read error
Random seek 127ms 115ms

- DVD Format

Now let's take a look at how the drive performs with DVD media. This time, a set of SL and DL DVD media was used. The drive is capable of reading at 16X maximum speed for single layer DVD ROM and at 12X for dual layer DVD ROM media.

DVD-ROM SL media



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 11.46x 12.04x 12.04x
Random seek 103ms 130ms 142ms

PTP DVD-ROM

The two layers of a PTP DVD-ROM disc are read sequentially with the drive starting reading from the inner part of the disc, which is the beginning of each layer, progressing towards its outer range.



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 8.65x 8.85x 8.90x
Random seek 118ms 130ms 148ms



OTP DVD-ROM

The first layer of an OTP dual layer DVD-ROM is read exactly the same way as the first layer of the PTP disc we tested previously. The difference here is the reading strategy of the second layer of the disc. The beginning of the second layer is located in the outer part of the disc, so the drive starts reading from the outer tracks and progresses towards the inner part of the disc.



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 8.62x 8.85x 8.85x
Random seek 119ms 131ms 133ms



DVD-R

LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 11.47x 12.07x 12.01x
Random seek 128ms 126ms 242ms

DVD-RW



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 8.52x 9.77x 9.74x
Random seek 110ms 128ms 118ms

DVD+R



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 11.47x 12.06x 12.14x
Random seek 128ms 129ms 307ms



DVD+RW



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 6.18x 9.79x 9.76x
Random seek 106ms 126ms 113ms

DVD+R DL



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 8.53x 9.01x 9.01x
Random seek 161ms 131ms 141ms

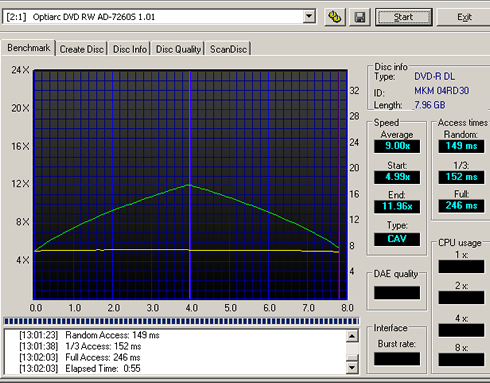

DVD-R DL



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 8.53x 9.01x 9.00
Random seek 168ms 131ms 149ms

DVD-RAM (12x)



LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average Speed 10.21xx 10.07x 10.13x
Random seek 150ms 299ms 237ms

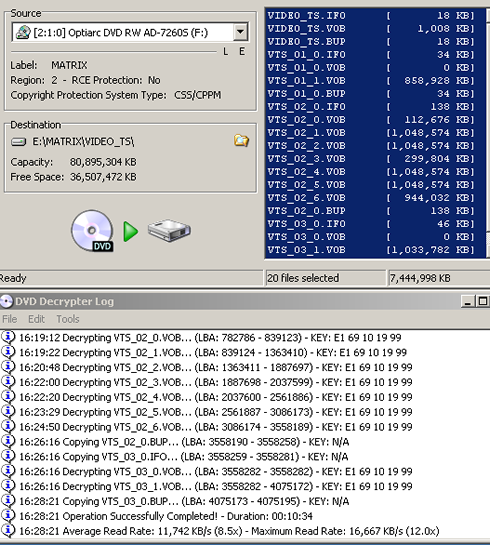

DVD Ripping speed -

Ripping of a single layer DVD movie:

  LiteOn iHAS524 Optiarc AD-7240S Optiarc AD-7260S
Average 5.766KB/s KB/s (4.2x) 11.761KB/s (8,5x) 11.742KB/s (8,5x)
Maximum 16.741 KB/s (12.1x) 16.451KB/s (11.9x) 16.667 KB/s (12x)

Summary

The reading process of almost all media was completed without read errors and at speeds that match the drive's specifications. It is obvious that the CD and DVD reading capabilities of the AD-7260S and the AD-7240S drives are the same.
