Thursday, November 22, 2007

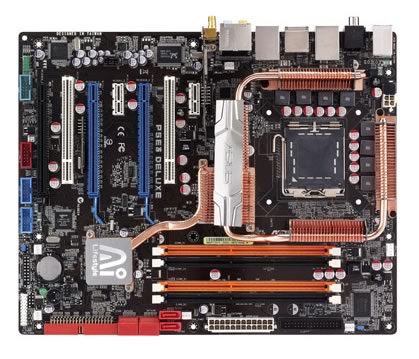

Asus P5E3 Deluxe WiFi

1. Introduction, features

Asus has a tradition of creating new products with innovating features. The Intel X38 Express chipset has been on the market for quite sometime and several manufacturers released a product series based on this chipset. Asus followed a different direction and with the P5E3 series, introduced a rather interesting feature called "ExpressGate". This feature allow users to have access to the Internet, check their email and login to MSN messenger without the need of any operating system. Apart from this newly introduced feature, the P5E3 Deluxe WiFi Edition is loaded with 802.11n Wireless, two PCI Express with x16 lanes and a energy efficient feature called ASUS EPU. Let's meet the Asus P5E3 Deluxe WiFi Edition and its main features in depth.

- Main features

The P5E3 Deluxe/WiFi-AP@n is an Intel® X38 chipset based motherboard that combines powerful performance and great energy efficiency. It also supports DDR3 1800MHz dual-channel memory architecture and Dual PCI Express 2.0 x16 lanes for extreme graphics performance. It also comes with the world’s first ASUS EPU (Energy Processing Unit), allowing the CPU power supply to be digitally monitored and fine-tuned with improved VRM efficiency in heavy or light loadings – attaining the best possible power efficiency and energy savings to help save the environment. The P5E3 DELUXE/WiFi-AP@n also supports 802.11n WiFi specifications onboard for faster data transfers, and ASUS Express Gate – an optional Linux OS bootup for instant access to the Internet in 5 seconds.

AI Lifestyle Series motherboards bring lifestyle and personal computing together. They provide you better system performance to enjoy graphic-intensive games and applications. The cutting-edge audio feature dramatically enhances the quality of voice signal. Thoughtful design allows you to set up your system easily. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don´t change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life.

Intel® X38 Chipset

The Intel® X38 Express Chipset is the latest chipset designed to support 8GB of dual-channel DDR3 1333/1066/800 architecture, 1333/1066/800 FSB (Front Side Bus), Dual PCI Express 2.0 x16 graphics and multi-core CPUs. With the specially included Intel® Fast Memory Access technology, available memory bandwidth usage is optimized and memory access latency is reduced - allowing faster memory speeds.



PCIe 2.0

Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.



Dual-Channel DDR3 1800(O.C.)/1333

The motherboard supports DDR3 memory that features data transfer ratesof 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 17 GB/s. Furthermore, the supply voltage for the memory is reduced from 1.8 V for DDR2 to just 1.5 V for DDR3. This voltage reduction limits the power consumption and heat generation of DDR3 which makes it an ideal memory solution.



ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows

With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.



ASUS WiFi-AP @n
6 Times Faster than 802.11g WiFi Technology

With spec 300 Mbps transfer rates, 802.11n supports the latest WiFi specifications for better signal coverage, stronger signals and faster data transmissions in comparison to previous 802.11b/g standards. With two antennas, you will not suffer from signal loss like before. You can also enjoy the choice to set the device in AP-Mode or Client Mode.



ASUS EPU
Energy Efficiency

The ASUS EPU utilizes innovative technology to digitally monitor and tune the CPU power supply with improved VR responses in heavy or light loadings. It automatically provides power for higher performance or improve efficiency by 7% when the PC is running low intensity applications. Working together with AI Gear 3, this can help you attain the best possible power efficiency and energy savings up to 58.6% to help save the environment.



ASUS 3rd Generation 8 Phase Power Design
Longer Life, & Higher Efficiency!

With power efficiency so important to operating temperatures, ASUS´ 3rd generation 8-phase VRM design leads the industry with its 95% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss & lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy efficiency.

In order to get familiar with the full features of the Asus P5E3 Deluxe WiFi Edition, please visit Asus special website.

- Full specifications

CPU
LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® next generation 45nm Multi-Core CPU
Chipset
Intel® X38 / ICH9R with Intel® Fast Memory Access Technology
Front Side Bus
1600/1333 / 1066 / 800 MHz
Memory
4 x DIMM, max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
*Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
3 x PCIe x16 (blue @PCIe2.0 x16 mode, black @PCIe x4 or x1 mode) supports CrossFire Technology
2 x PCIe x1
2 x PCI
Storage
Southbridge
- 6 x SATA 3.0 Gb/s ports
- Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10
JMicron® JMB363(JMB368) PATA and SATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- 2 x External SATA 3.0 Gb/s port (SATA On-the-Go)
- Supports SATA RAID 0,1,JBOD
LAN
Dual Gigabit LAN controllers
Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
RealtekRTL8110SC® PCI Gigabit LAN controller featuring AI NET2
Wireless LAN
ASUS WiFi-AP @n
300Mbps IEEE 802.11n and backwards compatible with IEEE 802.11g / b
- Software Access Point mode
Audio
ADI® AD1988B 8-channel High Definition Audio CODEC
- Support Jack-Sensing, Enumeration, Multi-streaming
- Coaxial / Optical S/PDIF out ports at back I/O
- AI Audio 2
- ASUS Noise Filter
IEEE 1394
Agere® L-FW3227 1394a controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
USB
12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS AI Lifestyle Features
ASUS Power Saving Solution
- ASUS EPU (Energy Processing Unit)
- ASUS 3rd Generation 8-phase Power Design
- ASUS AI Nap
ASUS AI Lifestyle Features:
- ASUS Express Gate
- ASUS WiFi-AP @n
- ASUS AI Direct Link
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Q-Fan 2
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Special Features
ASUS MyLogo 3
Multi-language BIOS
Overclocking Features
ASUS AI Booster utility
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 64-step DRAM voltage control
- vChipset (N.B.): 33-step DRAM voltage control
- vFSB Termination: 15-step reference voltage control
- vCPU PLL: 64-step CPU PLL voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 800MHz up to 3200MHz
- PCI Express frequency tuning from 100MHz up to150MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x S/PDIF Out (Coaxial + Optical)
2 x External SATA
1 x IEEE1394a
2 x RJ45 port
6 x USB 2.0/1.1
2 x WiFi-AP @n antenna jack
8-channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
4 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
2 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories
UltraDMA 133/100/66 cable
FDD cable
6 x Serial ATA cables
1 x 2-port Serial ATA power cable
ASUS Q-Shield
User's manual
ASUS WiFi-AP @n manual
3 in 1 Q-connector
1 x 2-port USB2.0 / 1-port IEEE1394 module
2 x Optional Fan for Water-Cooling or Passive-Cooling only
ASUS WiFi-AP @n omni-directional antenna
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Suite
ASUS WiFi-AP @n Wizard
Anti-virus software (OEM version)
Image-Editing Suite
Form Factor
ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)
