Thursday, July 26, 2007
Asus P5N32-E SLI Plus

1. Introduction

- Introduction

The nVidia 680i chipset was very successful with motherboards like the Asus Striker Extreme, which made a huge impact on users. However, there was a "minor" problem. The retail price of the board was very high, since the Nvidia chipset is very expensive. Asus engineers have managed what seems the impossible, in making an Nvidia based motherboard which combines two different chipsets, the Nvidia 650i SLI and Nvidia 570i SLI! The result is the "P5N32-E SLI Plus" and should be able to offer what 680i based motherboards offer, but at a reduced retail price. Let's take a good look at this ingenious motherboard.

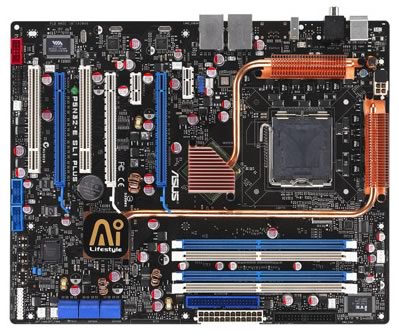

- Asus P5N32-E SLI Plus

The Asus P5N32-E SLI Plus is based on Nvidia's 650i & 570i SLI chipsets, supporting Intel® Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron® D Processors and Intel® Quad-core CPU processors for Socket (LGA775). It features 1333/1066/800/533MHz(FSB), dual-channel un-buffered DDR2 800/667/533 x 4DIMMs at a maximum of 8GB.

- Main features

The P5N32-E SLI Plus is the best Quad-SLI™ ready motherboard with excellent gaming performance. But what we care about is not just performance, it's also about realistic. Extreme HD gaming with the highest resolution that feels like the enemy jumps out of the screen, the supreme audio with a stand-alone card-SupremeFX, induces a better Signal-to-Noise Ratio, features with DTS surround sound, sounds like the enemy is just around. The unique 3 PCIex16 slot, reserved one additional slot for GPU Physics card when running Quad-SLI™, the experience can't be more real. This board is also of AI Lifestyle descent, while quiet thermal solutions increase the stability and reliability when running resource demanding games or applications, EZ DIY features enhance the DIY experience and make PC much more interesting.

The main features are:

- Intel® Quad-core CPU Ready
- Intel® Core™2 Extreme/Core™2 Duo Ready
- NVIDIA® Dual X16 SLI
- ASUS HybridUp Technology
- NVIDIA Quad-SLI™ Ready
- Dual-channel DDR2 800/667/533
- 1333/1066/800/533MHz
- SupremeFX/DTS connect
- Stack Cool2 and Heat-pipe Thermal Solution
- 8 Phase Power Design

LGA775 Intel® Quad-core Processor Ready
This motherboard supports the latest Intel® Quad-core and Intel® Core™2 processors in LGA775 package. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world

NVIDIA® Dual x16 SLI(C55/MCP55P)
The NVIDIA® Dual x16 SLI chipsets(C55/MCP55P) supports the NVIDIA® Scalable Link Interface (SLI™) technology that allows two graphics processing units (GPUs) in a single system. It's designed for enthusiast gamers, extreme overclocking capability, ultimate gaming performance with SLI technology support. It's definitely one of the fastest platform in the world.

NVIDIA SLI™ Technology
NVIDIA SLI™ (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance!

Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz,DDR2 memory provides great performance for 3D graphics and other memory demanding applications.


ASUS HybridUp Technology
ASUS HybridUp technology creates new combination of chipsets to deliver best value to users. With NVIDIA dual PCI Express x 16 SLI support, and great overclocking capability, this motherboard fits the need of enthusiasts in all aspects.

Advanced Thermal Design
ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge.


Stack Cool 2
Stack Cool 2 is a fan-less and zero-noise cooling solution offered exclusively by ASUS. It effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation.

8 Phase Power Design
ASUS 8-Phase Power Design keeps CPU and power module away from suffering risk of high power stress, which makes CPU lifetime much longer and system more stable. Furthermore, It provides high efficiency operation to generate less heat than conventional power solutions and consequently achieve cool system environment. With this strong power pump, this motherboard is made for overclocking.

Fanless Design: Heat-pipe Thermal solution
Cooling fans, though a popular thermal solution, also come with noise and malfunction likelihood. ASUS Motherboard's fanless concept is specifically created to provide a cool environment without all the baggage. The heat pipe, heat sinks and strategic board layout were tailor made to dissipate heat in the most efficient manner.


ASUS Q-Connector
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

ASUS CrashFree BIOS 2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support DVD. Users can reboot their system through the support DVD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

ASUS EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

ASUS MyLogo3
Personalize your system with customizable boot logo. The ASUS MyLogo 3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos.

SupremeFX (ADI 1988b)
The SupremeFX audio card is designed to provide you the best game sound experience. With 24bit/192kHz full sampling in all surround channels, no matter if you're hearing your game through headphones or 7.1 surround speakers, we'll deliver the effects loud and clear!

DTS Connect™
This feature is consists of two elements: DTS interactive and DTS NEO:PC. DTS interactive re-encodes your stereo or multi-channel sound into a DTS audio signal and send it out from your PC to any DTS enabled system. While DTS NEO:PC turns your stereo audio such as MP3, WMA, CD, and other sound format into a convincing multi-channel audio experience.

AI NOS™
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speeds.
ASUS O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.


IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices

High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved life span, and enhanced thermal capacity.

Music Alarm
Wake up to the music of your choice instead of the irritating sound of an alarm clock. The ASUS Music Alarm gives you a personal wake-up call with your favorite CD music when system is off.

- Full specifications

CPU
LGA775 socket for Intel® Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron® D Processors
Intel® Quad-core CPU Ready
Compatible with Intel® 06/05B/05A processors
* Refer to www.asus.com for Intel CPU support list
Chipset
NVIDIA® Dual X16 SLI
(C55+MCP55P; a.k.a. nForce®650i SLI & nForce®570 SLI)
ASUS HybridUp Technology
* Support SLI-Ready Memory Technology
Front Side Bus

1333**/1066/800/533 MHz
** available when CPUs are ready for 1333MHz FSB

Memory
Dual channel memory architecture
4 x DIMM, max. 8GB, DDR2-800/667/533, non-ECC, unbuffered memory
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
2 x PCI Express x16 slot, support NVIDIA® SLI™ technology, at full x16, x16 speed (blue)
1 x PCI Express x16, at x8 speed (white)
1 x PCI Express x1
2 x PCI 2.2
Scalable Link Interface (SLI™)
Support two identical NVIDIA SLI-Ready graphics cards (both at x16 mode)
Storage
South bridge supports:
 - 1 x Ultra DMA 133/100/66/33
 - 6 x Serial ATA 3.0Gb/s
 - NVIDIA MediaShield™ RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
LAN
NVIDIA® Dual X16 SLI built-in dual Gigabit MAC with external Marvell PHY
Support NVIDIA DualNet® technology
High Definition Audio
SupremeFX Audio Card
 - ADI 1988B 8-channel High Definition Audio CODEC
 - Support Jack-Sensing, Multi-streaming and Jack-Retasking
Coaxial, Optical S/PDIF out
DTS® Connect
IEEE 1394a
VIA6308P controller supports 2 x 1394a ports
USB
Max. 10 USB2.0/1.1 ports(6 ports at mid-board, 4 ports at back panel)
Overclocking Features
Intelligent overclocking tools:
 - AI NOS™ (Non-delay Overclocking System)
 - AI Overclocking (intelligent CPU frequency tuner)
 - ASUS AI Booster Utility
 - O.C. Profile
Overclocking Protection:
 - ASUS C.P.R.(CPU Parameter Recall)
Special Features

ASUS EZ DIY:
 - Q-Connector
 - ASUS CrashFree BIOS2
 - ASUS EZ Flash2
ASUS Music Alarm
ASUS MyLogo3
ASUS Q-Fan 2
Uses 100% High-quality Conductive Polymer Capacitors

Back Panel I/O Ports
1 x PS/2 Keyboard port(purple)
1 x PS/2 Mouse port(green)
1 x Optical + 1 x Coaxial S/PDIF Output
2 x LAN (RJ45) port
4 x USB 2.0/1.1 ports
1 x IEEE1394a port
Internal I/O Connectors

3 x USB 2.0 connectors supports additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
6 x SATA connectors
8 x Fan connector: 1 x CPU / 1 x Power Fan / 1 x Chassis / 5 x Optional
1 x Front Panel Audio connector (on SupremeFX audio card)
1 x IEEE1394a connector
1 x S/PDIF output connector
1 x Chassis Intrusion connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
System panel connector

BIOS
8Mb Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-Language BIOS
Manageability
WOL by PME, WOR by PME, Chassis Intrusion, PXE
Accessories

1 x SLI bridge
1 x ASUS Q-Connector Kit (USB, 1394, system panel; Retail version only)
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
4 x SATA cables
2 x SATA power cable for 4 devices
1 x 2-port USB2.0 module
1 x IEEE1394a module
User's manual

Software
Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Booster
NVIDIA MediaShield™ RAID
Anti-virus software (OEM version)
Form Factor
ATX Form Factor, 12"x 9.6" (30.5cm x 24.5cm)
