Home > Hardware Reviews > PC Parts

Wednesday, July 11, 2007

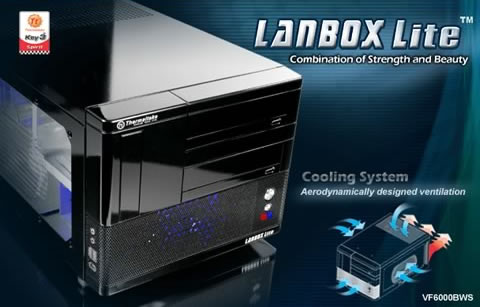

Thermaltake Lanbox Lite

1. Introduction

Thermaltake is a well known case manufacturer. For home users and especially for home entertainment, small form factor PCs (SFF PC) have become a convenient solution, so Thermaltake releases onto the market its new Lanbox Lite series, with an emphasis on gaming.

- Thermaltake Lanbox Lite

The release of the LANBOX has redefined the true meaning of the small form factor and portable PC market, ushering in a new generation of mobile power gaming PC. Today, Thermaltake is broadening the flexibility of the LANBOX series chassis by introducing the LANBOX Lite, which allows users from different market segments to take full advantage of all the great features found on the LANBOX.  The mirror-finish found on the LANBOX Lite exhibits extraordinary elegance along with a steel meshed front bezel design for greater thermal performance.

In addition, the LANBOX Lite inherits the LANBOX spirit. Unlike tower chassis, small form factor PC often lacks sufficient cooling capability or expandability to allow enthusiasts to build a capable gaming machine. Designed from the ground up, LANBOX Lite is a fully modular chassis where all components may be removed from the body for easier installation. Everything from Motherboard Tray to 5.25” Bay Drive cage can be easily removed with a twist of the thumb screws.

Thermal engineering played an equally important part when designing the LANBOX Lite. Today’s most high-end graphic cards or processor often requires added cooling and high-wattage power supply in order to operate at their maximum capability. Before, gaming enthusiasts that opted to build a small form factor PC were limited to mid-end graphic card or processor that resulted in mediocre performance.

Today, LANBOX Lite enables the use of standard Micro ATX motherboard, most high-end CPU, powerful graphic card and even a standard full-size PSU; the result, a small form factor PC that is equally powerful as full sized PC. LANBOX Lit is the ultimate chassis solution for your high-efficiency small form factor PC.

- Features

  • A fully modular chassis where all component may be removed from the body for easier installation
  • Aerodynamically designed ventilation holes to enable the system efficiently
  • Supports Micro ATX form factor & mini ITX form factor
  • Supports ATX PS2 power supply
  • Supports 7’’ LCD monitor (optional)
  • 2 external "5.25" or 7" drive bays are recommended for optical device and Thermaltake 7" LCD monitor only.
  • Sufficient space for settling Nvidia GeForce 8800 series graphic cards.

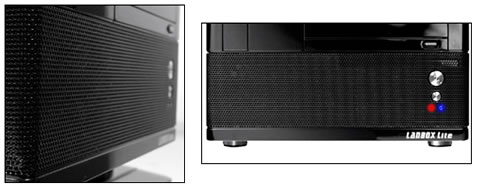

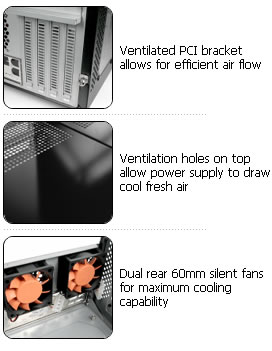

Efficiently Ventilation

Front panel mesh design for maximum ventilation

Piano Mirror Coating

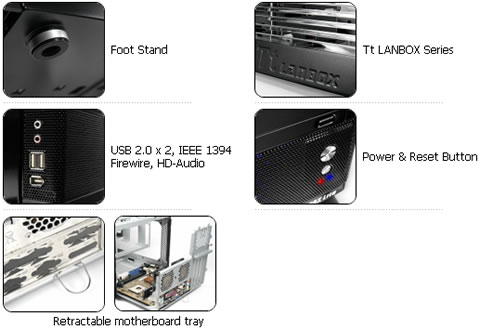

 Detailed Features

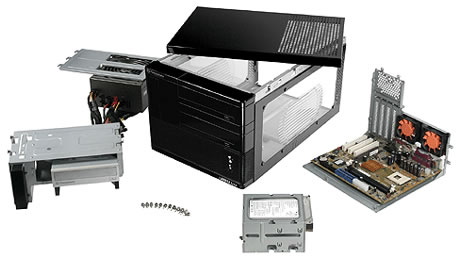

Modular Chassis

The need for a compact yet powerful PC has inspired Thermaltake to engineer this unprecedented mobile gaming powerhouse, LANBOX Lite Unlike tower chassis, small form factor PC often lacks sufficient cooling capability or expandability to allow enthusiasts to build a capable gaming machine. Designed from the ground up, LANBOX Lite is a fully modular chassis where all component may be removed from the body for easier installation. Everything from Motherboard Tray to 5.25” Bay Drive cage can be easily removed with a twist of the thumb screws.

Thermal engineering played an equally important part when designing the LANBOX Lite. Today’s most high-end graphic cards or processor often requires added cooling and high-wattage power supply in order to operate at their maximum capability. Before, gaming enthusiasts that opted to build a small form factor PC were limited to mid-end graphic card or processor that resulted in mediocre performance. Today, LANBOX Lite enables the use of most high-end CPU, powerful graphic card and even a full-size PSII; the result, a small form factor PC that is equally powerful as full sized PC.

NVIDIA SLI Application

- Full specifications

Model
VF6000BWS
Case Type
Gaming Cube
Dimension
(W*D*H mm)
300 x 430 x 230
Window side panel
Window
Chassis Material
SECC Japanese steel
Color
Black
Cooling System
- Front : 90mm fan with blue LED x 1, 1500rpm
- Rear : 60mm fan x 2, 1800rpm (up to 60mm fan x 3)
Motherboard
Micro ATX form factor & mini ITX form factor
Drive Bays
- 5.25" x 2
- 3.5" x 3 (Exposed x 1, Hidden x 2)
Front I/O
USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Expansion Slots
4
Weights
6.1 kg / 13.45lb
