Saturday, March 24, 2007

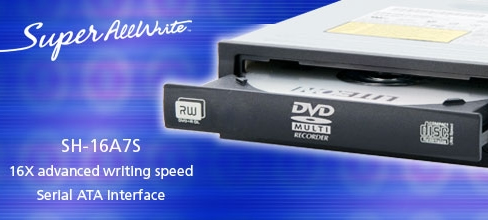

LITE-ON DVDRW SH-16A7S

1. Introduction

Today we take a look at a 16x DVD burner from LiteOn. Though the SH-16A7S is not new on the market, it comes with a SATA interface and supports all types of DVD media currently available.

Writing speeds for the LiteOn DVDRW drive are set at 16X for DVD±R, 8X for DVD±R DL, 8X for rewriting DVD+RW, 6X for rewriting DVD-RW, 12X for DVD-RAM,32X for CD-RW and 48X for CD-R.

The basic features of the drive include:

  • ATAPI/E-IDE Half-Height internal DVD+R / DVD+RW / DVD-R / DVD-RW / DVD+R9/ DVD-R9/ DVD-RAM /DVD-ROM / CD-R/ CD-RW / CD-ROM combination drive.

  • Supports Double Layer DVD +/- R9 Recording Function.

  • SMART-BURN avoiding Buffer UnderRun Error, Automatically adjusting writing strategy & running OPC to provide the best burning quality.

  • SMART-X function adjusts CD-DA / VCD / DVD data extraction to a fastest allowable speed according to both data request rate from host and disk quality.

  • ABS® system reduce vibration and noise during recording and reading.

  • Support Fixed Packet, Variable Packet, TAO, SAO, DAO, Raw Mode Burning & Over-Burn.

  • DVD read compliant: DVD single/dual layer (PTP/OTP), DVD-R(3.9GB/4.7GB), DVD-R multi-borders, DVD-RAM,DVD+R, DVD+R multi-sessions, DVD-RW, and DVD+RW.

  • CD read compliant: CD-DA, CD-ROM, CD-ROM/XA, Photo-CD, Multi-session, Karaoke-CD,Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW.

  • Support both 8 cm and 12 cm disc of CD and DVD family.

  • Conform to Orange Book : Part 2 CD-R Volume 1, Part 2 CD-R Volume 2 Multi Speed, Part 3 CD-RW Volume 1 ( 1x, 2x, and 4x ), Part 3 CD-RW Volume 2 : High Speed, Part 3 CD-RW Volume 3 : Ultra Speed.

  • Support Fixed packet, Variable packet, Disc-at-once, Session-at-once and Track-at-once.

  • Supported transfer mode: PIO mode 4, DMA mode 2 and Ultra DMA mode 4.
Specifications
DVD Family Write
DVD+R 16X  maximum
DVD-R 16X  maximum
DVD+R9 8X  maximum
DVD-R9 8X  maximum
DVD-RAM 12X  maximum

ReWrite
DVD+RW 8X    maximum
DVD-RW 6X    maximum
Read 16X  maximum
Access time 160ms
CD Family Write
CD-R 48X  maximum
ReWrite
CD-RW 32X  maximum
Read 48X  maximum
Access time 160ms
Buffer Size 2MB (MAX)
PC Required Pentium 4 1.3GHz or higher CPU and 128MB or higher RAM are
required.
HDD must have access time < 20ms; with a minimum of 650MB free
space.
9GB free space for creating a DVD image file (9GB for double layer;
5GB for single layer).
Compatibility Microsoft Windows 98SE / ME / 2000 / XP
MTBF (Life) 70000POH
S/N Ration > 75dB
General Environment
Operating 5°C to 50°C; Relative Humidity: 15% to 80%
Non-Operating -40°C to 65°C; Relative Humidity: 15% to 95%
Dimension 145(W) x 41.3(H) x 170(D) mm
Weight < 0.9Kg
Voltage Requirements
+5V +/-5% and less than 100 mVp-p ripple voltage
+12V +/-5% and less than 200 mVp-p ripple voltage

The drive

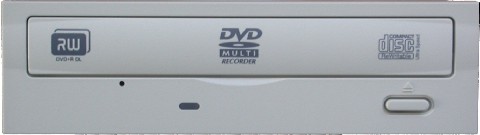

The typical front panel on the drive includes the DVD Multi Recorder logo, indicating the multi-format support for the various DVD formats.

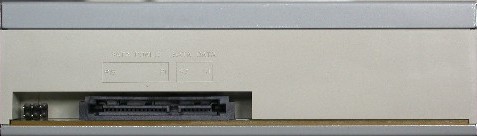

The rear panel on the drive is also typical, featuring the SATA interface.

Our test sample was manufactured in October 2006.

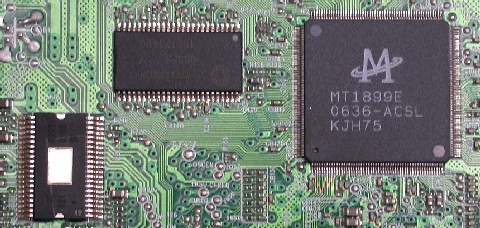

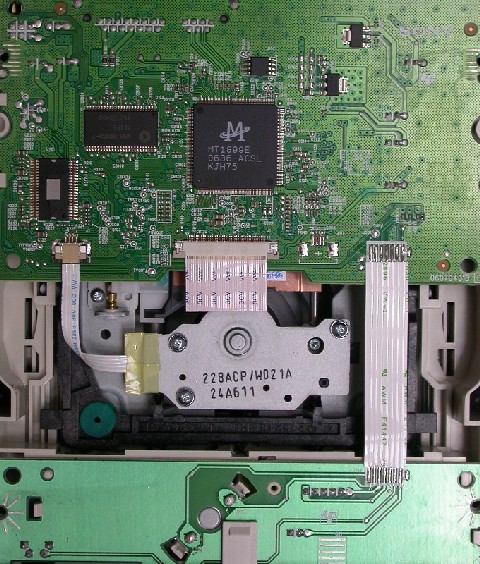

This drive is based on the MediaTek MT-1899E Chipset, as seen in the pictures below.

Click for High Resolution Image

Click for High Resolution Image

Installation

The LiteOn drive was connected via a SATA interface and was recognized as "LITE-ON DVDRW SH-16A7S". The basic features of the drive are given below, from Nero and DVDInfo Pro software utilities.
