Monday, April 17, 2006
OCZ PC4000 XTC Platinum Edition 2X1GB

3. SiSoft Sandra 2005

SiSoftware Sandra is a 32 and 64-bit Windows system analyser that includes benchmarking, testing and listing modules. It tries to go beyond other utilities to show you more of what is really going on under the hood so you draw comparisons at both a high and low-level in a single product.

You can get information about the CPU, chipset, video adapter, ports, printers, sound card, memory, network, Windows internals, AGP, ODBC Connections, USB2, Firewire etc. You can save/print/fax/e-mail/post/upload or insert into ADO/ODBC databases reports in text, HTML, XML, SMS/DMI or RPT format.

This version supports multiple sources of information gathering including: remote computers, PDAs, Smart Phones, ADO/ODBC databases or saved system reports. All benchmarks are optimised for both SMP & SMT (Hyper-Threading), up to 32/64 CPUs depending on the platform.

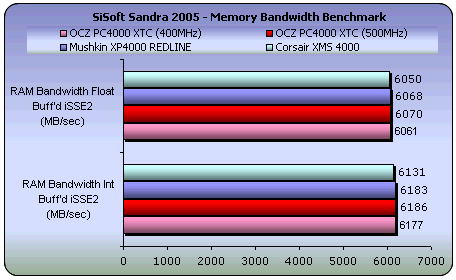

Memory Bandwidth Benchmark

Tests how your memory sub-system compares to other systems with the same or similar memory in other systems. The benchmark is based on the well-known STREAM memory bandwidth benchmark.

Cache & Memory Benchmark

Tests how your CPU cache and memory sub-system(s) compares to other systems with the same or similar CPU & memory in other systems. The benchmark is based on the Memory Bandwidth Benchmark test.

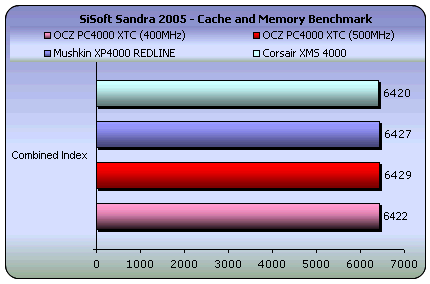

Combined Index: is a composite figure representing the overall performance rating of the entire Cache-Memory performance in terms of MB/s. The value is the logarithmic average of all the results for the entire address space. (Higher is better, i.e. better performance)

For block sizes that could not been tested - the average of previous blocks is used, thus the size of the memory (as long as it is not comparable to largest cache size) is not significant; all cache sizes are significant - larger caches will result in a higher index.

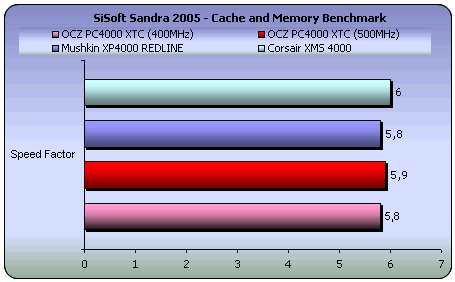

Speed Factor: is a figure representing the speed differential between the CPU’s cache and memory. The value is the ratio of the fastest cache (i.e. L1) bandwidth to the main memory bandwidth. (Lower is better, i.e. the memory is not very much slower than CPU’s cache)

As the factor is a ratio, it is useful only in comparing different CPUs and memory sub-systems rather than having a direct, physical interpretation associated to its numerical value.

Both Mushkin and Corsair memory modules received a CDRinfo award. The "Editor's Choice" for Corsair and "Best Performance" for Mushkin. This means that OCZ is up against some tough competition. These are the best modules that OCZ, Mushkin and Corsair can offer at 2x1GB. Also, all memory runs at the same operating frequency, with the Corsair modules having the highest timings and OCZ with Mushkin the lowest.

OCZ gave us excellent results, similar to the results we got with the Mushkin Redline memory. We also observed that SiSoft cannot easily discern the differences between 400MHz and 500MHz. Although it shows differences at these frequencies, they did not reflect the actual speed gain we got when we used 500MHz.
