enters the 8x DVD recording market with the new
DVR-107D. Being the first 8x DVD burner offering this speed
for
DVD±R
and 4x for DVD±RW, the drive brings the anticipated "balance"
in the recording speeds of the +R/RW and the -R/RW formats. With NEC (ND-2500A)
and LiteOn (SOHW-812S) as its main competitors in the retail market, the benchmark
results of Pioneer DVR-107D would be interesting to most of you.
- Features
Pioneer's DVR-107D offers wider compatibility compared to previous Pioneer
DVD writers, supporting high speed writing with various media. DVD±R
writing at 8x and DVD±RW
at 4x. Moreover, Pioneer has developed a series of technologies
with
the aim towards the improvement of final recording performance.
- Precision Recording Technology
Precision
Recording Technology utilizes an auto-adjustable writing technique to enable
recording under the best conditions for each disc characteristic at all times.
This technology, first introduced in the DVR-A06, enables the DVR-107D to
achieve
optimal initial writing performance and helps to minimize the normal deterioration
of re-recordable discs due to repeated writing. As a result, the quality for
repeatedly used DVD-RW discs is up to 10 times better than previous writers.
The drive
also uses an industry- first DRT-DM (Distributed Real Time Defect Management)
offering
a form of defect management that conforms to the DVD format without sacrificing
write performance. The result is compatible writing even on discs that
have been rewritten many times, without causing a degradation of disc quality.
- Ultra DRA (Dynamic Resonance Absorber)
Imbalanced
discs can cause vibrations that affect performance during high speed recording
and playback. An
Ultra Dynamic Resonance Absorber reduces vibrations that can affect performance
during
high-speed recording and playback of some discs. With this feature, the high
precision servo system
remains stable during both high-speed recording and playback.
In the picture below you can see the Ultra DRA effect on the total vibrations
of the drive. The feature reduces the vibrations by 65% at 9200rpm rotation
speed.
- Smart laser drive technology
Pioneer?s advanced laser drive uses a pickup that incorporates a write strategy
control circuit, ensuring stable write performance at high speed recording.
- Liquid crystal tilt technology
Pioneer?s liquid crystal tilt mechanism provides accurate and reliable operation
with discs having uneven curvature or thickness. This mechanism is used for
both recording and playback.
- Specifications
Interface |
ATA/ATAPI-5 |
IDE Data Transfer Mode PIO Mode 4, Multi Word DMA Mode 2,
Ultra DMA Mode 2 |
Buffer Size |
|
2MB |
Write Speed |
DVD-R |
1X , 2X , 4X , 6X and 8X Z-CLV |
|
DVD-RW |
1X, 2X and 4X CLV |
|
DVD+R |
2.4X, 4X , 6X CLV and 8X Z-CLV |
|
DVD+RW |
2.4X and 4X CLV |
|
CD-R |
4X , 8X , 12X, 16X CLV and 24X Z-CLV |
|
CD-RW |
4X, 10X ,16X CLV and 24X Z-CLV |
Read Speed |
DVD-ROM (Single) |
5.0x-12X CAV |
|
DVD-ROM (Dual layer) |
3.3X-8.0X CAV |
|
DVD-R (4X media) |
3.3X-8.0X CAV |
|
DVD-RW (2X media) |
2X CLV |
|
DVD+R/+RW |
3.3X- 8.0X CAV |
|
DVD-RAM |
2.0X CLV |
|
DVD-Video (Single) |
2.0X-5X CAV |
|
DVD-Video (Dual) |
2.0X-5X CAV |
|
8cm DVD |
1.3X – 2.1X CAV |
|
CD-ROM/-R |
17.2X- 40X CAV |
|
CD-RW |
13.7X-32X CAV |
|
CD-DA (DAE) |
17.2X- 40X CAV |
|
CD-Audio Play |
4.3X-10X CAV |
|
Video CD |
4.0X CLV |
|
8cm CD (with Adapter) |
4.1X- 6.2X CAV |
Disc Format |
|
DVD single layer/Dual layer
DVD-R (Ver.1.0 for authoring 3.95GB & Ver.2.0 for authoring 4.7GB and
general 4.7GB; But in case of write, General disc only.)
DVD-RW (Ver.1.0 &1.1)
DVD+R (Ver.1.0 & Ver.1.1)
DVD+RW (Ver.1.2)
DVD-RAM (Ver.2.0 & Ver.2.1)
CD-ROM Mode 1
CD-ROM XA Mode2 (form 1, form2) Video CD
Photo CD (single and multiple session)
CD-DA
CD-R
CD-RW (Supports AM2, Supports High Speed CD-RW, Support Ultra Speed CD-RW)
CD-Text |
Write Format |
|
DVD-R: Disc at Once,
Incremental recording, Multi-border recording
DVD-RW: Restricted
Overwriting
DVD+R: Incremental recording,
DVD+RW: Random recording
CD-R and CD-RW: Disc at Once, Track at Once, Session at Once, Packet
write
|
Random Seek Time |
|
DVD (-R/RW)(+R/RW): 130 msec
DVD-RAM: 140 msec
CD: 120 msec |
The drive uses a 2MB buffer memory. The RAW DAO 96 writing (CD) is supported
while Mount Rainier is not.
The Pioneer DVR-107D uses the RPC II region control, allowing a user to change
the drive's region at most 5 times. For our tests, we set the region
code to 2 (Europe).
- Retail package
In
our labs we received a sample engineers version of the Pioneer drive, having
come without logos, as can be seen on the following pictures.
Pioneer Europe
will not be releasing a "retail" version of the DVR-107D, due to
the lack of 8X media at the time. As well, there is only a short period between
the DVR-A07
and the DVR-A07XL (Advance). This will be on-sale in Europe as a retail product
by
approximately Mid-March.
In the retail version
(picture above) available in Australia and US, however, the included software
is:
Ulead DVD MovieFactory 3 Disc Creator allows you to burn
movies, slideshows, data and music to CD or DVD in an instant.
Ulead Video Studio 7SE allows first-time users to easily
create professional-looking video. Ulead Photo Explorer 8.0 provides an efficient
way to transfer, browse, modify and distribute digital media.
Ulead My Scrapbook 2 offers everything the scrapbooker needs
to create scrapbook pages, clip art and titles on the computer.
Ulead Burn.Now is easy to use disc recording software.
Users can take full advantage of their CD/DVD burner to create data and
audio discs plus copy discs.
Ulead DVD Player offers high compatibility and plays
commercial DVDs and DVDs created by other Ulead products.
NovaBACKUP 7.1 allows you to back up your computer to
just about any tape drive, hard disk, removable, CD-R/RW or DVD drive.
- The drive
As was previously mentioned there is no Pioneer logo on the drive's front
panel since we received a sample version. The drive's front panel
is colored light gray and despite being a sample version, has the CD-RW and
both the +RW and -RW logos. On the right is the eject button and next to it
two ventilation holes just like in previous Pioneer writers. The activity led
indicator is placed left of the ventilation holes and further left is the emergency
eject hole.
On the rear panel there are
the analogue audio output, the IDE connector
and the power input.
Removing the screws and opening the drive's cover voids the drive's warranty.
For reference reasons, we post the following pictures.
- Installation
The Pioneer drive was connected to our test PC and was identified
as "Pioneer DVD-RW DVR-107D" under
WinXP. All tests were done with firmware v1.05.
The following pages include the test results of the Pioneer drive in comparison
to two other dual DVD burners, the new Sony DRU-503A and the Plextor PX-708A
2. Data CD Reading Tests
Pioneer DVD±RW
DVR-107D - Page 2
Data CD Reading Tests
- Pressed CD results (Click for
CDSpeed results)

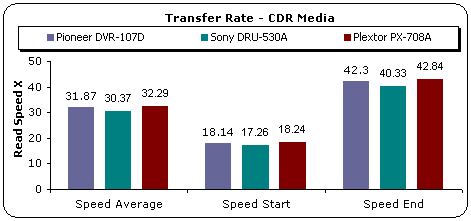

The Pioneer DVR-107D supports a maximum reading speed of 40x. The drive reached
a final reading speed of 41.93x. The Plextor drive was the fastest and had a
final speed of 42.88x

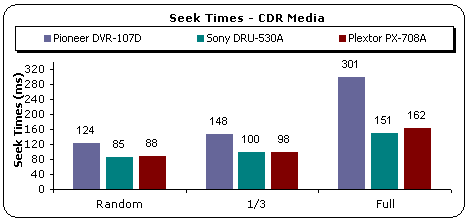

On the seek times test the Pioneer drive needed 295ms for a full seek, a
time that is very slow and almost double that of the other two drives.On the
random and 1/3 seek times, the Pioneer returned times of 118ms and 145 respectively
and was slowest among the three.
- CD-R Media results (Click for
CDSpeed results)
With CD-R media, as was the case with the pressed CD previously, the Pioneer
drive with a final speed of 42.3x was only slightly slower than the Plextor.
Again the full seek time of the Pioneer drive is double the time of the other
two drives. The random and 1/3 seek times were also the slowest among the three
drives and a little on the slow side.
- ReWritable Media (Click for
CDSpeed results)
For the rewritable reading test we used 24x High Speed rewritable media from
Mitsubishi Chemicals.
The Pioneer DVR-107D supports a maximum reading speed of 32x for the cd-rw
format. The drive reached a final speed of 33.66x.
3. CD Error Correction Tests
Pioneer
DVD±RW
DVR-107D-
Page 3
Error Correction Tests
In the following tests we check the drive's behavior when reading
scratched / defective audio discs. The test discs used were the ABEX series
from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num:
1217073
|
Errors (Loudness) dB(A)
|
Num:
58985
|
Avg:
-73.4 dB(A)
|
Max:
-25.2 dB(A)
|
Error Muting Samples
|
Num:
3810
|
Avg:
1.0 Samples
|
Max:
40 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
76.4 points (out of 100.0 maximum)
|
This is generally a difficult disc for most drives to read correctly. The Pioneer
DVR-107D performed admirably in this test with a low total error count and no
samples skipped, receiving a test score of 76.4 out of 100.
- ABEX TCD-726
Errors total
|
Num:
873
|
Errors (Loudness) dB(A)
|
Num:
70
|
Avg:
-74.1 dB(A)
|
Max:
-63.2 dB(A)
|
Error Muting Samples
|
Num:
4
|
Avg:1.0
Samples
|
Max:
1 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
90.1
points (out of 100.0 maximum)
|
This is a much easier test disc from the TDR-721R but there were some loudness
and muting errors. The best drives will usually register a perfect score of
100 or very close to it, and the Pioneer drive managed 90.1
points which is a very good score.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
more difficult tests. These tracks are referred to as Check Level-1 through
Check Level-5.
The
tracks are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
out
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested drive.
Error Level
|
1
|
2
|
3
|
4
|
5
|
Pioneer DVR-107D
|
5/5
|
5/5
|
5/5
|
5/5
|
2/5
|
The drive successfully passed the first 4 check levels for this test. On
the fifth check level, where the scratch is 1.500mm, the drive managed to
playback
two out of five times without any audible clicks. Not many drives manage to
reach the fifth check level, let alone managing to read it even once.
- Summary
Test Disc
|
Reading Speed
|
Score
|
ABEX TCD-721R
|
Max
|
76.4
|
ABEX TCD-726
|
90.1
|
Average Score
|
83.25
|
The average score of the Abex tests is 83.25 points for the
Pioneer DVR-107D. This is among the best scores we have recorded and indicates
that the drive is very capable with defective CD media.
4. DVD Reading Tests
Pioneer
DVD±RW
DVR-107D -
Page 4
DVD reading tests
- Single Layer DVD-ROM (Click
for CDSpeed results)
The Pioneer drive was the fastest with single layer DVD-ROM media. The drive
reached 12.65x reading speed at the end of the test while the average reported
reading speed was 9.46x.
As with CD seek times, so too with DVD media the Pioneer DVR-107D returned
some slow times, and especially the full seek.
- Dual Layer PTP DVD-ROM (Click
for CDSpeed results)
The two layers of a PTP DVD-ROM disc are read sequentially with the drive
starting the read process from the inner tracks on the disc, which is the beginning
of each layer,
and progressing outwards towards to the outer tracks for each layer.
On the Dual layer DVD-ROM reading test the Pioneer drive was fast with an
average reading speed of 6.32x. The reading strategy is CAV and the reported
speed at the end of each layer is 8.46x. All drives gave back similar with
the Sony being the fastest and Plextor the slowest.
Nothing has changed with the seek times however, with the Pioneer drive being
slow, and a full seek which is double the time of the other drives.
- Dual Layer OTP DVD-ROM
The
first layer of an OTP dual layer DVD-ROM is read exactly the same way as the
first layer of the PTP disc we tested previously. The difference here is the
reading strategy
of the second layer on the disc. The beginning of the second layer is located
in the outer part of the disc, so the drive starts reading from the outer tracks
inwards towards the inner tracks of the disc.
The Dual layer OTP written disc did not present any problems for the Pioneer
DVR-107D drive. The average reading speed was 6.28x and the reading strategy
is CAV.
- DVD Ripping Tests
We measured the DVD-Video ripping speed of the Pioneer DVR-107D using the
latest version of DVD Decrypter. The DVD Video title is the "Matrix" pressed
DVD-Video.
The ripping test with the Pioneer RW drive shows it is very fast with an
average read rate of 5,816 KB/s (4.2x) and a maximum reading rate of 7,202 KB/s
(5.2x)
- DVD Recordable / Rewritable reading Tests
The chart below shows the Nero CDSpeed average reading speed results with
the following media:
The Pioneer DVR-107D read all four media types using CAV, and where the average
reading speed was from 6.16x to 6.25x.
- DVD RAM reading test
Pioneer
supports reading of the DVD-Ram format. The specification of the drive are
confirmed here by the Nero CDSpeed. After the end of the test the software
reports that the drive read the DVD-Ram under CLV mode. The disc we used for
this test is a Panasonic 2x DVD-RAM Ver2.0, and a Maxell 3x DVD-RAM Ver.2.1.
Both discs were read at 2x CLV. Again, the Full seek times are increased.
5. DVD Error Correction Tests
Pioneer
DVD±RW
DVR-107D -
Page 5
DVD Error Correction
Tests
In the following
tests we examined the DVD reading capabilities of the Pioneer DVR-107D drive
with scratched / defective DVD media. For the tests we used CDVD
Benchmark and Nero CDSpeed. The reference test media
come
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its
surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer
rate test.
The drive manage to read the disc accurately without any read errors. The test
finished with an end speed of about 12x
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on the surface and instead
defective areas ranging in dimensions from 0.5 to 1.1 mm. There
are also fingerprints with height
between
65 and
75 micrometers.
As in the previous test, no read errors occurred during the reading process.
The drive managed to reach maximum reading speed at the end of the disc at
12x.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, on both layers.
Pioneer DVR-107D once again performed well and managed to finish the test
without posting any errors. The test reached a maximum reading speed a little
above 8x.
ABEX TDR-845
This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
both defective areas and fingerprints. The dimensions of the defective areas
range from 0.5 to 1.1 mm and the fingerprints have height sized from 65
to 75 microns (micrometres).
Just like the 841 dual layer DVD the 845 dual layer DVD did not pose a problem
for the Pionee DVR-107D.
ABEX TDV-541
The
TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The
disc is based on the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The disc checks the layer switch operation
from layer 0 to layer 1 and also includes test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correcting
capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.
The dual layer 541 DVD-ROM was read under CAV mode. NeroCD Speed reports high
seek times, something that seems to be a characteristic of the drive, with a
full seek requiring 306ms. However the graph above shows a perfect result and
there was no problem switching from layer 0 to layer 1.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer
Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial
black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65
- 75 micrometre high fingerprints.
Once again CAV mode for the reading strategy, high seek times
but no problems reading the disc.
6. Protected Disc Tests
Pioneer
DVD±RW
DVR-107D -
Page 6
Protected Disc
Tests
- Reading Tests
To create an image of the various protected titles onto a hard disk, we
used CloneCD v.4.3.1.9 software and the appropriate settings, depending on
the protection type of the inserted discs. Below are summarized the capabilities
of the Pioneer drive, according to CloneCD
software. Notice that the drive supports writing of CD+G under RAW DAO:
The game titles we used for each protection scheme are given in the
table below:
Game Title
|
Protection Scheme
|
PSX "NBA Jam Extreme"
|
Lybcrypt
|
Serious Sam The Second Encounter v1.07
|
SafeDisc v.2.60.052
|
VRally II
|
SecuROM v.2
|
PSX Pressed Media
SafeDisc v.2
SecuROM v.2

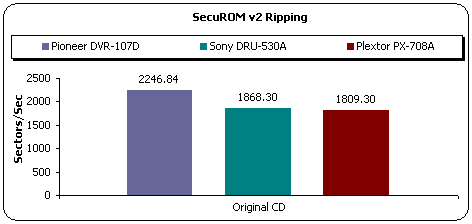

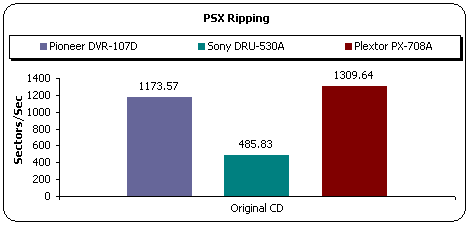

The Pioneer drive managed to make images of all tested games. The drive was
fast with the PSX and SecuRom images, completing the task with an average speed
of 15.65x and 29.96x respectively. With the Safedisc2 protected game disc the
drive decreased reading speed to 2.35x
- Writing Tests
The Pioneer DVR-107D supports the DAO-RAW writing mode.

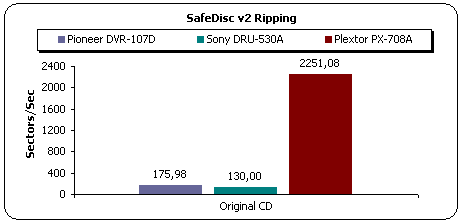

For checking the drive's EFM correction status, we used 3 different game titles
with different SafeDisc 2 versions with the latest software patches installed.
After making the images of the various titles to the hard disk, we burned them
(maximum speed) with CloneCD. Two different discs were created for each
title; one with the "Amplify Weak Sectors" enabled and one more with
the
function disabled.
The table below shows the results of the attempted backups and whether
they ran (game installed / played normally), or not.
Drive |
Game Title |
SD2 Build |
Settings |
Amplify Weak Sectors On |
Amplify Weak Sectors Off |
Pioneer
DVD-RW DVR-107D |
Max Payne |
v2.51.020 |
Yes |
Yes |
Serious Sam - The Second Encounter
v1.07
|
v.2.60.052 |
No* |
No* |
The Sims Unleashed |
v.2.8 |
No*
|
No*
|
The Sims Superstar |
v2.9 |
No |
No |
The drive is not the best recorder for creating backups of SafeDisc protected
discs. Protection builds higher than v2.51 could not be handled.
*Both backups of SafeDisc v2.60.x and v2.8 discs worked in the same Pioneer
DVR-107D ONLY.
7. CD-DA - DAE Tests
Pioneer
DVD±RW
DVR-107D -
Page 7
DAE Tests
- Pressed and CDR AudioCD results
The Pioneer DVR-107D supports a maximum reading speed of 40x, and reads the
audio disc using CAV.
After
the end of the test, Nero CdSpeed reports that the drive's average speed was
30.85x, while it reached a final reading speed of 41x and had a random seek
time of 123ms. The resultant graph below shows some undulations during reading.
In order to test the average ripping speed of the Pioneer drive we used an
original pressed audio CD and a copy on a CDR audio disc. The results of ripping
each disc are illustrated on the graphs below.
The Plextor PX-708A was the fastest among the three drives with
both the pressed and the CDR disc. The Pioneer drive's times were only slightly
slower with speeds of 26.9x for pressed audio disc and 28.2x for CDR.

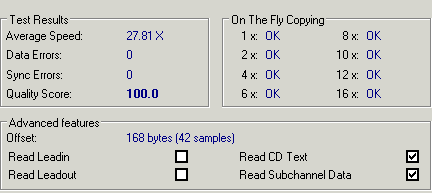

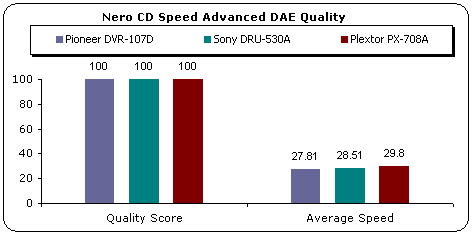

- Advanced DAE Quality
In the Nero CD Speed Advanced DAE test, the Pioneer DVR-107D
returned an average speed of 27.81x which is the slowest among the three drives,
although not by much. The reported quality score is 100 and the software reports
that the drive can be used for on the fly copying up to 16x, can read CD Text
and Subchannel Data but cannot read informations from the Leadin and Leadout
area.
- Support of 90/99mins AudioCDs
The Pioneer drive managed to rip the contents of our 90/99min test discs
successfully.
- Reading/Ripping Protected AudioCDs
For the test procedure we used two audio discs with different
audio protection schemes. We tested for both recognition and
ripping to the hard disk. The software used was Exact Audio Copy.
* Pressed Audio disc protected by Sony Key2Audio (Celine
Dion - New Day
Has Come)
* Pressed Audio disc protected by Cactus Data Shield 200 (Natalie
Imbruglia - White Lilies sIsland)
|
Key2Audio |
CDS200 |
EAC |
Pioneer DVR-RW DVR-107D
|
No
|
OK
|
SONY DRU-530A
|
OK
|
Recognize the disc but cannot rip
or play the contents
|
Plextor PX-708A
|
OK
|
OK
|
The Pioneer DVR-107D had no problems with either playback or extraction of
the contents of the CDS200 protected audio disc.
The Key2Audio protected disc did not play on the Pioneer drive and hence the
contents could not be rippped. The best performance on this test comes from
the Plextor drive which managed to rip the contents of both tested discs.
8. CD Recording Tests
Pioneer
DVD±RW
DVR-107D - Page
8
CD Recording Tests
- CD-R Writing Tests
The Pioneer DVR-107D supports 4X

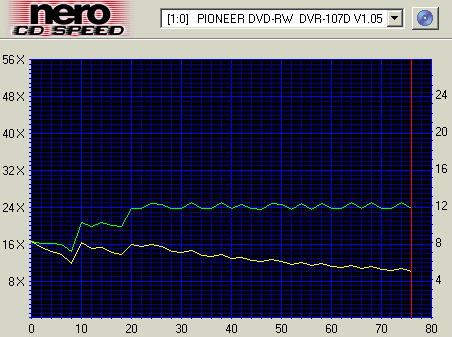

, 8X , 12X, 16X CLV and the maximum 24X writing speeds. Below you can
see the CDSpeed writing simulation graph with Taiyo Yuden 48x CD-R media.
The
characteristic of Z-CLV is a series of zones that look like steps, each one
reaching closer to the maximum speed of the drive. When the maximum speed is
reached, the drive speed levels off and remains constant until the end. The
graph below has a couple of steps at the beginning and levels of at 24x, but
both speed and velocity exhibit a lot of undulations. This is not normal behaviour.
- Recording Times
We created an 80min data compilation with Nero Burning Rom and recorded it
on a 700MB disc. Both Sony and Plextor support 40x writing speed while Pioneer
supports 24x. With the specific compilation the drive needed 4:49
minutes to complete the writing process.

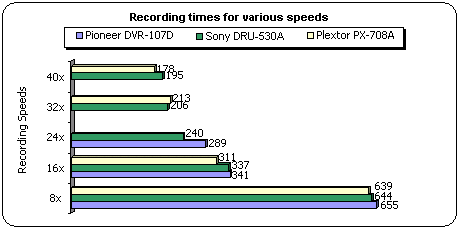

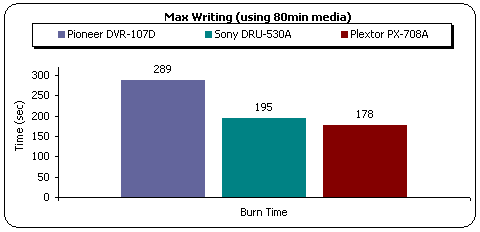

Below are the best writing times at all avaliable writing speeds of all
three drives. The graph shows that at the 24x max writing speed of the Pioneer
drive, Sony is 49sec faster.

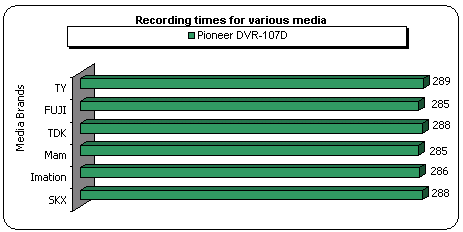

In the following graph you can see the recording times with
various media brands.
- CD-RW Writing Tests
The
Pioneer DVR-107D supports 4X,
10X ,16X CLV and 24X Z-CLV rewriting speeds,
with Ultra Speed rewritable media. Below
are the results from the CDSpeed writing simulation test with blank
24x US-RW media from Mitsubishi Chemicals.
The test confirmed the drives specifications for 24x rewriting. The burning
procedure started at 15.36x and finished at 24.83x having an average speed of
22.41x. The steps (if we ignore for the moment the spikes) at the beginning
shows Z-CLV, but just as with the CD-R writing test where we had undulations,
here we have spikes.
In order to provide a comparison of the three drives when writing on HS-RW
media, we used Nero Burning Rom software to burn a 651MB data compilation using
24x US-RW media from Mitsubishi Chemicals. The data compilation was burnt by
all drives at 24x. The graph shows that the Pioneer drive needed slightly more
time to finish both the writing and the quick erase task.
- Packet Writing Tests
For the packet writing test we used the InCD packet writing software from
Nero and Mitsubishi Chemicals 24x US-RW media. The test file was a 403 MB file
(412.822 KB) and we used the drag and drop method from Windows Explorer to write
the file from our hard disk to the RW media. On both read and write processes,
the Pioneer drive was fast with 17.7x average reading speed and 16.6x average
writing speed.
Operation
|
Duration
|
Average speed
|
Read
|
2:35 min
|
17.7 X
|
Write
|
2:46 min
|
16.6 X
|
- Other features
Overburning
|
80min, No overburning
|
CD text reading/writing
|
Yes
|
9. 3T Jitter Tests - Page 1
Pioneer
DVD±RW
DVR-107D -
Page 9
Writing Quality Tests - 3T Jitter Tests
In order to test the writing quality of the written disc with the Pioneer
drive we summarise the
3T
Pit & Land Jitter of the written discs on the following graph.
- 3T Pit results
The written discs from the Pioneer drive gave back excellent Pit Jitter values.
Even at the highest speed of 24x, the Pit Jitter is well under the 35ns Red
Book limit.
The average

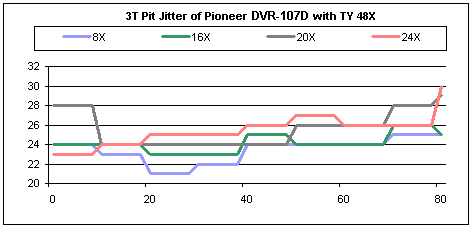

3T Pit Jitter values for all recording speeds are illustrated in the following
table.
All written discs gave back low average pit jitter values. The
lowest average value was with 8x writing speed.

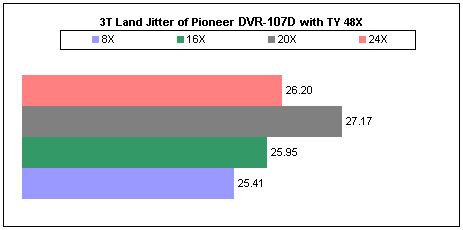

- 3T Land results
The Land Jitter values for the same discs written with the Pioneer DVR-107D
are slighly increased in comparison with the pit values but again remained well
below the 35ns Red Book limit.

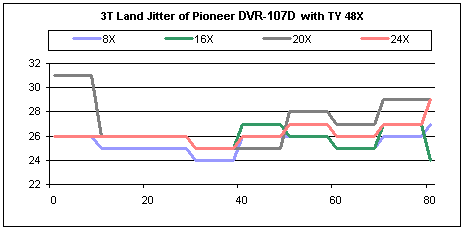

The following average graph confirms the low levels.
The average Land Jitter values for all writen discs is extremely good. From
the above graph we conclude that Pioneer DVR-107D is a very high quality writer
for the CD-R format at all avaliable speeds.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
8X
|
23.41
|
25.41
|
No
|
25 Pit, 27 Land
|
16X
|
24.15
|
25.95
|
No
|
26 Pit, 27 Land
|
20X
|
25.59
|
27.17
|
No
|
29 Pit, 31 Land
|
24X
|
25.37
|
26.20
|
No
|
30 Pit, 29 Land
|
10. 3T Jitter Tests - Page 2
Pioneer
DVD±RW
DVR-107D -
Page 10
Writing Quality Tests - 3T Jitter Tests
The same Nero compilation, as in the previous test, was used once again in
order to burn media from different manufacturers. The recording speed was the
maximum 24x in all cases. The following graphs show the 3T Pit & Land Jitter
results.
- 3T Pit results
Except for Imation media which was for the most part above the Redbook limit,
all other media had very low pit jitter values

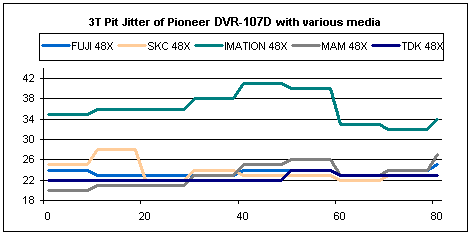

The average 3T Jitter values for all manufacturers discs are illustrated in
the following graph.
Notice the difference between Imation and all other brands.The graph shows
that Imation is not a good choice for quality writing with Pioneer DVR-107D.

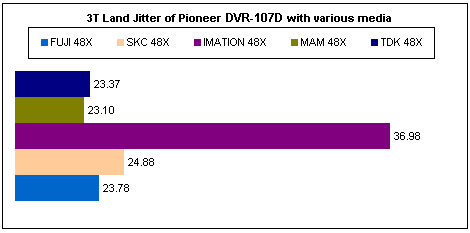

- 3T Land results
Once again all the media brands gave low land values except for Imation media.

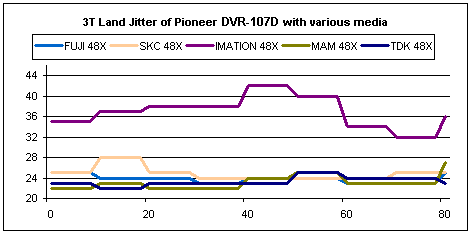

The average values presented below illustrates the drives recording ability.
Once again the difference between Imation media and the other brands is self
evident. Other than this, the jitter values are very low.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
FUJI 48X
|
23.54
|
23.78
|
No
|
25 Pit, 25 Land
|
SKC 48X
|
23.73
|
24.88
|
No
|
28 Pit, 28 Land
|
Imation 48X
|
36.32
|
36.98
|
Yes
|
41 Pit, 42 Land
|
MAM 48X
|
22.98
|
23.10
|
No
|
27 Pit, 27 Land
|
TDK 48X
|
22.51
|
23.37
|
No
|
24 Pit, 25 Land
|
11. C1 / C2 Error Measurements
Pioneer
DVD±RW
DVR-107D -
Page 11
Writing Quality Tests - C1 / C2 Error Measurements

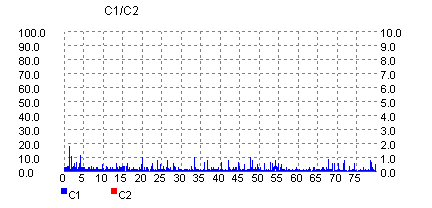

The C1 / C2 error rate was measured for the recorded discs burned during
the previous writing tests (jitter). The software used was UMDoctor Pro II,
and the reader the Optorite DD0203 drive.

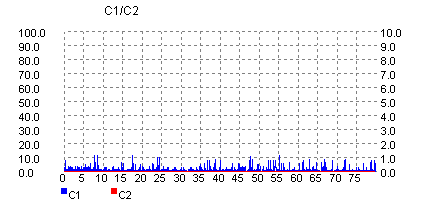

- Taiyo Yuden 48x recorded at 8x
- Taiyo Yuden 48x recorded at 16x
- Taiyo Yuden 48x recorded at 20x

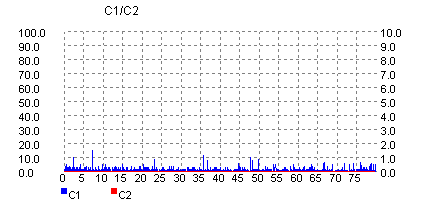

- Taiyo Yuden 48x recorded at 24x
- Imation 48x recorded at 24x
Below is presented information on the CD-R media used in this test.
Disc
|
ID Code
|
Taiyo Yuden 48X
|
TaiyoYuden 97m24s01f
|
Imation 48X
|
CMC Magnetics Corporation
97m26s66f
|
TDK Printable 48x
|
TDK Corporation 97m15s 5f
|
FUJI 48X
|
Fuji Photo Film Co., Ltd. 97m26s45f
|
SKC 48X
|
SKC 97m26s26f
|
- Summary
The results are very good, one could even say impressive. There were no C2
errors reported except for the TDK disc at the end. The C1 values are also all
excellent except for TDK again at the end, and Imation which doesn't seem to
agree with the drive at all.
12. DVD Recording Tests
Pioneer DVD±RW
DVR-107D - Page 12
DVD Recording Tests
- Writing Performance
The Pioneer DVR-107D supports DVD-R/RW and DVD+R/RW writing. The maximum
supported speed for DVD±R is 8x Z-CLV and 4x CLV
for
DVD±RW.
Currently, only a few 8x certified DVD+R media are available on the market
and fewer DVD-R 8x.
8x DVD-R
To
test the writing strategy of the the Pioneer DVR-107D on the minus format we
used Nero CDSpeed and a certified writing at 8x TY disc. The drive starts writing
the specific media at 6x while the speed increased at 8x after 600mb. Despite
the fact that CDSpeed identifies the writing type as P-CAV, the following screenshot
clearly shows that it is indeed Z-CLV, confirming the manufacturers specification.
8x DVD+R
With
plus media, the Pioneer drive supports 8x writing speed and uses Z-CLV writing
strategy. For this test Nero CDSpeed "create disc" function. was not
able to show the correct writting speed at 8x although Nero Burning Rom wrote
the same disc at 8x.
4x DVD+RW
With
DVD+RW media the drive supports 4x CLV writing. After the end of the test the
manufacturers specifications were confirmed with start and end speed at around
4x.
4x DVD-RW
For
the DVD-RW writing test we used a JVC-RW media certified writing at 4x. CDSpeed
reported an average writing speed of 4x CLV.
- Burning Tests
The following graphs show the maximum writing speeds for all avaliable DVD
formats for the Pioneer drive. For comparison, we also include the writing times
for the Sony DRU-530A and Plextor PX-708 drives.
Because of the writing speed specifications for DVD-R/-RW, the Pioneer drive
gave the lowest writing times among the three drives. For DVD+R/+RW media where
all drives support 8x and 4x respectively, the Plextor drive was the fastest
on the DVD+R writing with a burning time of 7:53 while Sony leads in the DVD+RW
writing with burning time at 13:44

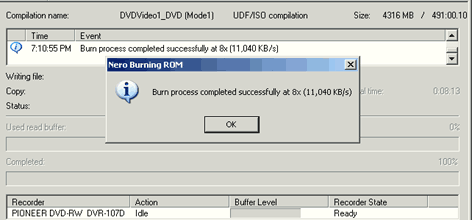

The following screenshots were taken from Nero, after successful burnings.
The recording project is the same
dvd-video compilation for all the tests.
Media
|
Code
|
Speed |
Mitshubishi Kagaku 8x DVD+R |
MCC003 |
8x |
JVC 8x DVD-R |
TYG02 |
8x |
TDK 4x DVD-R |
TTG01 |
4x |
Mam 4x DVD-R |
MCI4XG01 |
4x |
Pony 4x DVD-R |
RITEKG04 |
4x |
Verbatim 4x DVD-R |
MCC01RG20 |
4x |
CMC 4X DVD-R |
CMCMAG.AF1 |
4x |
CMC 8X DVD+R |
CMCMAG EO1 |
4x |
N-Tech 4x DVD-R |
MXLRG01 |
2x |
TY 4x DVD+R |
YUDEN000T01 |
4x |
PHILIPS DVD+RW 4X |
PHILIPS 041 |
4x |
JVC DVD-RW 4X |
JVC0VictorD7 |
4x |
The table above presents the writing speeds of the drive for the various
media formats.
- Packet Writing Tests
For this test we copied a 403 MB file (412.822 KB) from Hard Disk (on the
same PC as the recorder) to the formatted RW media through Windows explorer
(drag and drop).
DVD-RW
|
Duration
|
Average speed
|
Read
|
2:31 min
|
2X
|
Write
|
2:57 min
|
1.99X
|
DVD+RW
|
Duration
|
Average speed
|
Read
|
2:02 min
|
2.5X
|
Write
|
1:26 min
|
3.5X
|
13. KProbe PI/PO Error Measurements
Pioneer DVD±RW DVR-107D - Page 13
KProbe PI/PO
quality results

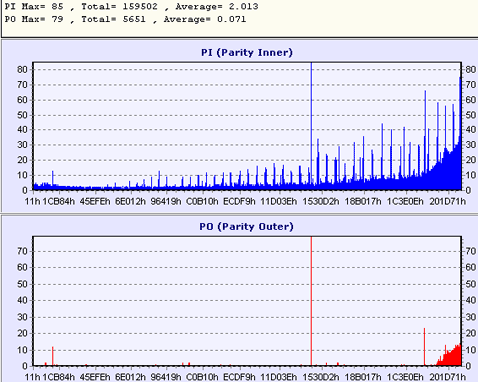

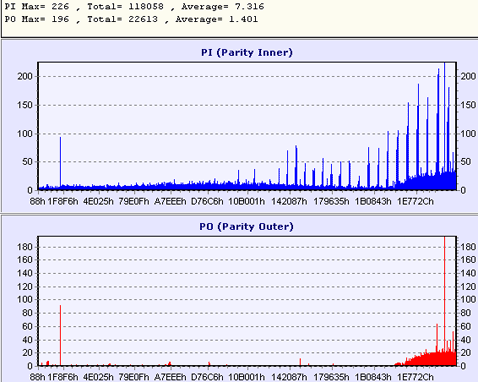

The following screenshots show the PI/PO scans for the various DVD-/+R
and DVD-/+RW media, recorded with Pioneer DVR-107D at the maximum permitted
speed.
The software used for the measurements was the KProbe v1.1.26, the ECC ws
set to 8 and the reader was LiteOn LDW-811s. The specific methodology is very
dependent on the
drive
used as a reader, while the reliability of the PI/PO provided output is also
not technically confirmed. Hence as a result, we cannot safely come up
with conclusive results,
although we do make a comparison
of the drive's behaviour
when using
various
DVD recordable/rewritable
media.
The discs used came from JVC, Verbatim, TDK, MAM, Ritek, CMC, Mitsubishi Chemicals,
Taiyo Yuden and Philips. Further details about each disc type are presented
at the bottom of this page.
-
JVC 8x DVD-R (Recorded at 8x)
-

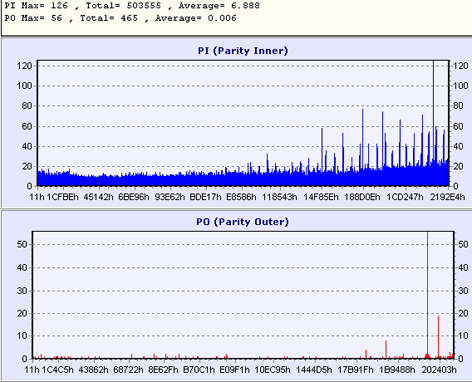

VERBATIM 4x DVD-R (Recorded at 4x)
-
TDK 4x DVD-R (Recorded at 4x)
-
MAM 4x DVD-R (Recorded at 4x)
-
RITEK 4x DVD-R (Recorded at 4x)
-
CMC 4x DVD-R (Recorded at 4x)
-
TY 4x DVD+R (Recorded at 4x)
-
CMC 8x DVD+R ( Recorded at 4x)
-
MITSUBISHI KAKAGU 8x DVD+R (Recorded at 8x)
-
PHILIPS 4x DVD+RW (Recorded at 4x)
-
JVC 4x DVD-RW (Recorded at 4x)
Media
|
Code
|
JVC 8X DVD-R
|
TTG02
|
VERBATIM 4X DVD-R
|
MCC01RG20
|
CMC 4X DVD-R
|
CMCMAG.AF1
|
TDK 4X DVD-R
|
TTG01
|
MAM 4X DVD-R
|
MCI4XG01
|
RITEK 4X DVD-R
|
RITEKG04
|
MITSUBISHI KAGAKU 8X DVD+R
|
MCC003
|
TY 4X DVD+R
|
TY T01
|
CMC MAGENTICS 8x DVD+R
|
CMCMAG EO1
|
PHILIPS DVD+RW 4X
|
PHILIPS 041
|
JVC DVD-RW 4X
|
JVC0VictorD7
|
14. Conclusion
Pioneer
DVD±RW
DVR-107D -
Page 14
Conclusion
Pros
|
Cons
|
- 8x DVD+R writing
- 8x DVD-R
writing
- 4x DVD+RW/-R writing
- 24/24/40
CD-RW
- Very Good
CD/DVD error correction
- Very Good
writing quality with CD
- Supports CD-Text (reading/writing)
- Supports
reading of 99min audio discs
- Good DVD-Video
ripping speed
- High DAE-Speed
- DVD-RAM reading
- Good CD/DVD
writing quality
- Low 3T
Jitter (CD)
|
- Increased
CD/DVD/DVD-RAM Full seek
times
- Cannot
playback/rip Key2Audio
CD
- Slow ripping
speed with Safedisc game discs
- 24x CD-R
max write speed could be higher
- Does not
support latest SafeDisc builds
- Overburning
|
With no doubt, most awaited features of the new Pioneer DVR-107D are its impressive
DVD recording speeds. Although the 8x DVD-R media available in the market is
limited, the drive reacted positively to JVC 8x DVD-R and gave us the best
recording time for the -R format. Commenting on the DVD-RW's performance;
Pioneer recorded at 4x with JVC DVD-RW discs. About the plus format,
we achieved the maximum 8x writing speed with 8x Mitsubishi Chemicals
media only. Generally, the drive did not allow 8x recording on
any 4x DVD±R
media. Although this behavior could protect users from creating low quality
recordings, some DVD recording enthusiasts could be disappointed. Pioneer will
release a new firmware for the drive expanding the supported DVD media list
very soon.
But perhaps the most impressive results were the land and pit jitter measurements
which were all very low. Coupled with the equally good results in the C1/C2
error measurement tests, it appears to be a high quality CD writer. This could
be the reason for Pioneer's choice to support only maximum writing speed
of 24x for CD-R, thus preserving writing quality. In case of DVD, the KProbe
scannings gave
adequate results even for the highest recording speeds.
The drive had high seek times (especially full), with CD media. However,
its performance with the ABEX CD test discs was among the best we have seen
and it managed to read successfully the first four check levels of the Audio
Test Disc, and 2 out of 5 from the 5th level. Very few drives have managed
to get that far.
With DVD and DVD-RAM media, it again had high seek times but managed to achieve
good reading speeds. Here too, it continued its good performance with the ABEX
suite of test discs, this time for DVD media where defects and scratches did
not prove a problem for the drive.
With backups of protected game titles, as it is the case with most DVD recorders,
it did not manage backing up the latest SafeDisc v2.x.x.
schemes. SafeDisc builds higher than 2.51x were working only in the same drive.
With Digital
Audio Extraction, the drive could not read or rip the Key2Audio protected disc.
Other than that, it managed to rip the contents of our 90/99min test discs
and its
speeds overall for audio extraction were satisfying.
The DVD writing tests produced some strange graphs where we encoutered undulations
and spikes. Despite this there appeared to be no problems and the writing times
were quite good.
Pioneer DVR-107D is available in the market for €150-200. The price is
reasonable for an 8x dual DVD burner, although competition is very tough in
the market. If you are seeking for quality and reliability, the Pioneer drive
meets your requirements.
