1. Retail Package - Installation
LG GSA-4081B Multi DVD Recorder -
Page 1
Most people know of LG as a consumer electronics manufacturer. It is among the
top Electronics manufacturers in Korea, and one of the largest worldwide. Lately,
LG has also managed to become a leader in the optical storage industry, offering
fast and affordable CD/DVD recorders, and is among the few companies supporting
the DVD Multi Recording standard.
The first "Super-Multi" drive, the GMA-4020B, was announced last
year. The drive was born from the joint venture between LG and Hitachi. Although
the company initially supported only the DVD-R/-RW and DVD-RAM formats, the
next step towards the "plus" camp was not late in coming. The GSA-4040B
added DVD+R/+R writing while also boasting of recording speeds of 4x DVD±R,
2.4x DVD+RW, 2x DVD-RW and 3x DVD-RAM.
LG upgraded the specifications of its processor drive (GSA-4040B) offering
8x DVD+R and 4x DVD+RW writing. Of course, the drive supports 3x DVD-RAM and
4x DVD-R writing.
- Specifications
The specifications for the LG GSA-4081B Multi DVD Recorder from LG Electronics are given in the following
table.
Interface |
E-IDE / ATAPI |
Buffer |
2MB with buffer under run proof technology |
Write |
DVD-RAM: |
2x (Ver. 2.0), 3x (Ver. 2.1) |
|
DVD-R: |
2x 4x CLV |
|
DVD-RW: |
2x CLV |
|
DVD+R: |
2.4x, 4x CLV, 8x ZCLV |
|
DVD+RW: |
2.4x, 4x CLV |
|
CD-R: |
4x, 8x CLV, 16x, 24x ZCLV |
|
CD-RW: |
4x, 8x, 12x, CLV, 16x ZCLV |
Read |
DVD-RAM: |
2x (Ver. 1.0/2.0), 3x (Ver. 2.1) |
|
DVD-RW/-R/+RW: |
8x max |
|
DVD-Video: |
8x max |
|
DVD-ROM: |
12x max (single), 8x (dual) |
|
CD-RW: |
24x |
|
CD/-R/ROM: |
32x max |
Access Time |
DVD-RAM: |
185 ms |
|
DVD-ROM: |
155 ms |
|
CD-ROM: |
135 ms |
Writing Method |
CD-R / RW: |
Disc at once, session at once, track at once, packet write |
|
DVD-R: |
Disc at once and incremental recording |
|
DVD+R: |
Sequential recording |
|
DVD-RW: |
Disc at once, incremental recording & restricted
over |
|
DVD-RAM/+RW: |
Random write |
The LG GSA-4081B Multi DVD Recorder supports DVD+R writing at 8x ZCLV
and DVD-R at 4x CLV . For the DVD-RAM format, the supported
writing speeds are 2x CLV (Ver. 1.0/2.0) and 3x CLV
(Ver. 2.1). The DVD+RW discs can be burned at 4x CLV maximum,
and2x is selected for DVD-RW. The maximum reading speed for DVD-ROM and DVD
Video is 12x CAV for single layer and 8x CAV for dual layer discs.
For CD-R media, you can select among 4x, 8x, CLV and 16x, 24x ZCLV writing
speeds, and 16x Z-CLV writing for CD-RW format. The CD-ROM-R reading speed is
32x CAV, while CD-RW media supports 24x reading.
The drive has 2MB of buffer store, and technology to protect
from “buffer underrun errors” during the writing
process.
The supported RPCII region control allows the user to change the region code
a maximum of 4 times.
The drive offers the following writing modes: TAO, packet writing, SAO, multisession
and according to Nero InfoTool, DAO RAW 96.
- The package
The
retail package does not include any blank DVD or DVD-RAM media. What you can
find is a multilangual quick start manual and two CD-ROMs containing application
software and DVD-RAM drivers.
The application software comes from BHA. It includes “B's Recorder Gold
7 Ver7.10” software which offers increased recording and editing functionality
for CD/DVD media. For easy DVD authoring there is the "neoDVD Ver5.1"
software, while packet writing is offered through "B's Clip Ver5.38".
“Power DVD v5” is also included, allowing playback of all DVD and
CD formats.
Finally, in the retail package you will also find included an
internal audio cable, IDE interface cable and mounting screws.
Looking at the front panel, on the disc loading tray are from left to right,
the "super multi" and "DVD+RW" logos, the "LG"
brand logo at centre, and finally the "DVD multi recorder" and "compact
disc rewritable" logos. The emergency eject hole is located just below
the tray door right of centre, while on the very right is the eject button,
and lower still and left of centre is the power/activity LED. The LED lights
up when a disc is loaded or the drive performs a read/write task. There is no
headphone jack or volume control.
On the rear panel we have the analog audio output for connecting to you PC's sound card,
the device configuration pins and jumper, ATAPI interface, and power input.
After removing the screws and opening the case, we photographed the
internal components of the drive, the photos of which are presented below.
It was immediately discernible that the
main chips of the drive are manufactured by Hitachi and NEC.
The drive shares the same mainboard and chipsets with the LG GSA-4040B Multi
recorder.
- Installation
The drive was identified as "HL-DT-ST DVDRAM GSA-4081B" under
the WinXP opersting System. The drive was installed as the master device on
the secondary IDE channel of our test PC using the Ultra DMA Mode 2 transfer
mode. The model came with firmware version vA028 installed, which was throughout
all the tests.
2. Data CD Reading Tests
LG GSA-4081B Multi DVD Recorder - Page
2
Data CD Tests
- Pressed CD results
(80min CDSpeed
graphs)
The LG drive supports a maximum reading speed of 32x for the
CD-ROM format. The reading method used is CAV and in our tests, the disc was
read successfully, reaching a final speed of 33.07x with an average of 25.06x.
We feel that the LG drive could offer higher reading speeds in roder to compete
with the other burners available on the market.
The seek times for the pressed disc are a little on the slow side, especially the full seek time which took 238ms.
- CDR Media results
(80min CDSpeed
graphs)
The pressed disc used in the previous test was copied onto CDR
media and the drive was tested again for reading speed and seek times. The final
speed reached was 33.24x and the average speed was 25.16x.
The CDR media seek times for the LG GSA-4081B produced figures
similar to those for pressed media, where the random and 1/3 seek times were
average, but a full seek needed a hefty 255ms. With both types of media, the
performance is very similar, there not being much between them in either speed
or seek time.
- HS-RW media
(HSRW
CDSpeed )
For the RW media reading test we used a 24x MC HS-RW
disc. The LG drive supports 24x reading speed for CD-RW media and as can be
seen from the following graph, it confirms this reaching a final speed of 25.16x.
3. CD Error Correction Tests
LG GSA-4081B Multi DVD Recorder - Page 3
CD Error Correction
Tests
In the following tests we examine the error correction capabilities of the
LG GSA-4018B Multi DVD Recorder, when reading artificially damaged CD-R media.
For this series of tests we used the Almedio ABEX pressed discs, and the EAC
test disc.
- ABEX TCD-721R
Errors total
|
Num: 2233459
|
Errors (Loudness) dB(A)
|
Num: 116003
|
Avg: -75.1 dB(A)
|
Max: -35.4 dB(A)
|
Error Muting Samples
|
Num: 6747
|
Avg: 1.2 Samples
|
Max: 582
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0
|
C2 accuracy
|
99.8
|
Total Test Result
|
75.0 points (of 100.0 maximum)
|
The total score for the LG drive is 75.0 points out of 100.
The total errors reported from this test are 2233459 which
is a little on the high side. The drive also produced errors over a greater
area of the disc's surface than we have come to expect as can be seen from the
graph. However, the average error loudness is -75.1 dB(A), which is quite acceptable.
With an average number of 1.2 samples muted and no samples skipped, all in all
it performed quite well. The C2 accuracy score for the drive is 99.8
- ABEX TCD-726
Errors total
|
Num: 127449
|
Errors (Loudness) dB(A)
|
Num: 18628
|
Avg: -81.3 dB(A)
|
Max: -47.8 dB(A)
|
Error Muting Samples
|
Num: 461
|
Avg: 1.0 Samples
|
Max: 2
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
C2 accuracy
|
100.0
|
Total Test Result
|
79.6 points (of 100.0 maximum)
|
The Abex TCD-726 test disc is much easier for drives in general to read, or
so we thought. The LG drive proved that there is always an exception to the
rule. We have become used to seeing graphs with nothing on them for this test,
but the LG GSA-4081B Multi DVD Recorder changed that. The final score of 79.6
is woeful when compared to other drives that manage scores in th ehigh 90s and
even 100.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
difficult tests. These tracks are referred to as Check Level-1 through Check
Level-5.
The tracks are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested drive.
Error Level
|
1
|
2
|
3
|
4
|
5
|
LG GSA-4081B Multi DVD Recorder
|
5/5
|
1/5
|
0/5
|
0/5
|
0/5
|
The drive had severe problems with this test disc. At worst, all drives have
passed at least the first two levels. The LG drive could only pass the first
level, and managed just one in five attempts from the second level where the
drive produced audible clicks. The error size on the 2nd track is 0.500mm.
- Summary
Test Disc
|
Reading Speed
|
Score
|
ABEX TCD-721R
|
Max
|
75.0
|
ABEX TCD-726
|
79.6
|
Average Score
|
77.3
|
Combining the two scores from the ABEX tests gives an average total score of
77.7 points out of 100. This score is certainly not one of
the better scores we have seen from a drive and certainly indicates that there
is room for improvement here. What is obvious is that while the drive can probably
handle minor defects on a discs surface, it does have problems with anything
more serious.
4. DVD Reading Tests
LG GSA-4081B Multi DVD Recorder - Page 4
DVD reading tests
- Single Layer DVD-ROM reading
(CDSpeed graph)
The LG GSA-4081B Multi DVD Recorder, which supports a maximum reading speed of 12x for DVD media,
read the single layer DVD-Rom using CAV mode.
The results of the CdSpeed tests show that the drive had a start speed
of 5.10x, a value that is about par with the other two drives used in the comparison here.
The end speed for the LG drive was 12.35x while it had an average speed of 9.22x, times which are
equivalent to those of the other two drives.
The seek times for single layer dvd media show that while the LiteOn had the fastest
times, the LG drive was not far behind with 90ms, 120msec and 178ms for random, 1/3 and full seeks respectively.
- Dual Layer DVD-ROM reading
(CDSpeed graph
)
With dual layer DVD-Rom media, all three drives returned almost identical results.
The dual layer DVD-Rom was read by the LG drive using CAV mode at an average speed of 6.19x
The LG's seek times for this media are quite good with the LiteOn drive
producing the best times.
- DVD Ripping Tests
We measured the DVD Ripping speed using the "Matrix" DVD Video
title and DVD Decrypter.
The drive ripped the DVD at an average speed of 9047KB/sec.
The performance is quite fast and is quite close to that of the LiteOn which
was the fastest of the three drives.
- Duration:: 19:36:30
- Average Read Rate: 9,047 KB/s (6.5x)
- Maximum Read Rate:
12,579 KB/s (9.1x)
- DVD reading Tests
The chart below shows the Nero CDSpeed results with the following media.
The drive had a consistent speed of 6.10x to 6.20x regardless of the media type used, making it overall the
fastest in this test amongst the three drives.
- DVD-RAM reading
Ver. 1.0/2.0 (2x)
For
this test we used a 2x DVD-RAM disc (Ver 2.0 / 4.7GB). LG GSA-4081B supports
2x CLV reading with such media, while it is 1x faster with Ver.
2.1 / 4.7GB. In the second case, we used 3x media (120min Video, 4.7GB)
from Maxell. Below you can see the CDSpeed transfer rate graphs with recorded
DVD-RAM (reading).
The Panasonic disc was
read at 1.95x average, and needed 190 msec for a full seek. Note that the
specifications of the drive indicate a 185msec for access time with DVD-RAM.
Ver. 2.1 (3x)
The
Maxell DVD-RAM disc was read at 3x CLV. This time, the seek times were incresaed
over previously, especially in the 1/3 mode (164msec) and the full stroke,
with 241 msec. The transfer rate graph is illustrastrated in the screenshot
below
5. DVD Error Correction Tests
LG GSA-4081B Multi DVD Recorder - Page 5
DVD Error Correction
Tests
In the following tests we examined the DVD error correction capabilities
of the LG GSA-4081B Multi DVD Recorder. For the tests we used CDVD Benchmark v1.21 and Nero
CDSpeed . The reference test media comes from ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, in which
there are scratches with dimensions ranging from 2.6 to 4.8 mm. The following
transfer rate picture comes from CDVD Benchmark v1.21.
The graph shows that the drive had a few problems reading the disc, especially towards the end.
This is a little strange as the defects are located mostly in the first half of the disc.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity.
The data structure of the disc is exactly the same as that of the TDR-821,
with the difference that there are no scratches on the surface and instead
defective areas ranging in dimensions from 0.5 to 1.1 mm. There are also
fingerprints with height between 65 and 75 micrometers.
The resultant graph here is almost the same as the one from the previous test.
Once again, the performance is not particularly good and the drive certainly
shows problems reading this disc.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided, DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 4.8 mm, on both layers.
With this disc, the drive manages to produce a linear speed increase for both layers
without any major glitches. The thickness of the lines however indicates the number of
attempts required to read each point, while the random dots intersperesed above and below show
major speed fluctuations. These fluctuations are common as the drive tries to overcome the
defective areas. What is more puzzling is, as was the case with the tests above, that the
major problem appears to be in the areas where there are no defects.
ABEX TDR-845
This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
both defective areas and fingerprints. The dimensions of the defective areas range
from 0.5 to 1.1 mm and the fingerprints have height sized from 65 to 75 micrometres.
Again, there seem to be more problems away from the defective areas, towards the end of each layer.
As for the defects, while not the best results we have, seen, the drive seems to bypass
defects without any major problems.
ABEX TDV-541
The
TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.
The disc is based on the TDV-540 series which is designed for inspection and
adjustment of DVD-VIDEO players. The disc checks the layer switch operation
from layer 0 to layer 1 and also includes test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correcting capabilities
of the drive and includes scratches sized from 0.4 to 3.0 mm.
The drive shows a major problem when switching to the second layer in this test. Both velocity
and reading speed are dramatically affected and it takes quite a while before the drive recovers.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer Video/S-2
disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the disc's
surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometre high fingerprints.
Black dots and fingerprints were not a problem for the drive. The test
was successfully completed, with an average reading speed of 6.14x. It appears
that defects are not so much the problem with this drive since in virtually
all of this series of tests with defective media, the drive performed admirably
over the defective areas. The problems seemed to manifest themselves in regions
on the disc's surface where there were no defects, and if there is a pattern,
it seems to be that the problem is at the end of the layer or layers.
6. Protected Disc Tests
LG GSA-4081B Multi DVD Recorder - Page 6
CloneCD Reading
Tests
- Reading Tests
To create an image of the various protected titles onto a hard disk, we
used CloneCD v.4.3.1.9 software and the appropriate settings, depending on
the protection type of the inserted disc. Below are summarized the capabilities
of the LG drive, according to CloneCD software. Notice that the drive supports
writing of CD+G under RAW DAO:
The game titles we used for each protection scheme are given in the table
below:
Game Title
|
Protection Scheme
|
PSX "NBA Jam Extreme"
|
Lybcrypt
|
Serious Sam The Second Encounter v1.07
|
SafeDisc v.2.60.052
|
VRally II
|
SecuROM v.2
|
PSX Pressed Media
SafeDisc v.2
SecuROM v.2
The drive, while a little on the slow side, nevertheless managed to produce
satisfactory ripping speeds.
- Writing Tests
The LG GSA-4081B supports the DAO-RAW writing mode. For checking the drive's
EFM correction status, we used 3 different game titles with different SafeDisc
2 versions with the latest software patches installed. After making the images
of the various titles to the hard disk, we burned them (maximum speed) with
CloneCD. Two different discs were created for each
title; one with the "Amplify Weak Sectors" enabled and one more with
the
function disabled.
The table below shows the results of the attempted backups and whether they
ran (game installed / played normally), or not.
Drive
|
Game Title
|
SD2 Build
|
Settings
|
Amplify Weak Sectors On
|
Amplify Weak Sectors Off
|
LG GSA-4081B
|
Max Payne
|
v2.51.020
|
Yes
|
Yes
|
Serious Sam - The Second Encounter v1.07
|
v.2.60.052
|
Yes
|
Yes
|
The Sims Unleashed
|
v.2.8
|
Yes
|
No
|
The Sims Superstar
|
v2.9
|
No
|
No
|
The drive performed as well as any of the DVD drives we have tested, being
able to rip all but the SafeDisc v2.9 protected discs.
7. CD-DA - DAE Tests
LG GSA-4081B Multi DVD Recorder - Page 7
DAE Tests
- Pressed AudioCD results
In
this test we examine the DAE speed of the drives. The drive ripped the audio files at
an average speed of 18.56x.
The graph above shows that while the speed increase is linear and the velocity
remains fairly constant, there are a lot of undulations. The maximum speed reached
was 24.48x and the average 18.56x
We ripped the contents of the same audio disc to the hard disk with CDDAE software.
The drive was not all that fast with an average ripping speed of 17.4x.
The results of the BTC DRW1008IME and LiteOn LDW-811S are also given here for comparison,
where it can be seen just how slow the LG drive is.
- CDR AudioCD results
With CD-R media, the ripping speed remained the same as in the previous
test, as indeed it did more or less for the other two drives as well.
- Advanced DAE Quality
The snapshot Below shows CDSpeed's Advanced DAE test result for the LG drive.
The average reading speed is 17.59x, and the quality score is 99.4.
Note that the drive gave back 18882 data errorrs. InI addition, the drive can
read Leadin (but not Leadout data), CD-Text and Subchannel data.
- Ripping of 90min and 99mins AudioCD's
Disc Capacity |
Ripping up to |
90min |
Ok |
99min |
Ok |
- Reading/Ripping Protected AudioCD's
For the test procedure we used 2 protected Audio CDs, which we
tested in both recognition and ripping (with EAC) processes:
- Pressed AudioCD with Sony Key2Audio (Celine Dion - New Day Has
Come), and
- Pressed AudioCD with Cactus Data Shield 200 (Natalie Imbruglia
- White Lilies Island).
|
Key2Audio |
CDS200 |
EAC |
LG GSA-4081B |
OK
|
OK |
The drive can handle both "Key2Audio" and "Cactus Data Shield
200"
protected audio CDs. Ripping was achieved at the maximum supported ripping speed.
8. CD Recording Tests
LG GSA-4081B Multi DVD Recorder - Page 8
CD Recording
Tests
We
tested the drive using the latest version of Nero. The LG GSA-4081B
Multi DVD Recorder uses ZCLV (Zoned Constant Linear Velocity) when writing
at speeds of 16x or higher
and plain CLV for speeds below 16x for CD-R and CD-RW media.
The multiple steps shown on the following graph are characteristic of Z-CLV
where reading befan at 12.01x and finished at 24.03x with an average of 19.44x.
Recording Times
For the burning tests we created an 803Mb data compilation with Nero Burning
Rom and recorded the data onto a disc. The LG drive completed the task in 5:01
minutes, writing at 24x. Compared to the other two drives, it is quite a good
deal slower.
Below are the writing times at 8x, 16x and 24x.
The recording times for various media brands at 24x are given
in the following chart.
-CD-RW Writing tests
We
tested the drive using the latest version of Nero/CloneCD. The LG GSA-4081B
Multi DVD Recorder supports 16x ZCLV maximum writing speed for CD-RW media.
The drive
is also capable of writing at 4x,
8x, 12x, CLV, 16x ZCLV with this media type.
As the resultant output graph above shows, the drive begins writing
at 12x and then steps up to 16x, maintaining this speed up to the end. Again,
this step is a characteristic of the ZCLV method of writing.

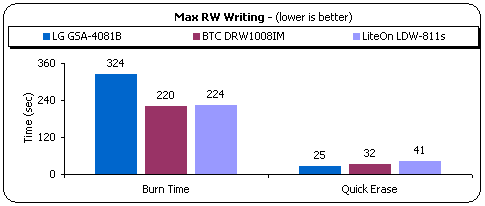

Below are the times required for the LG, BTC and LiteOn drives for burn and
quick erase of rewritable media.
- Packet Writing Tests
Using InCD and Mitsubishi Chemicals 24x US-RW media for all Packet Writing
tests, quick format took 32sec. The formatted disc had 530mbs of free space.
We copied a 403 MB file (412.822 KB) from Hard Disk (on the same PC as the
recorder) to the formatted RW media through Windows
explorer (drag and drop).
Operation
|
Duration
|
Average speed |
Read |
4:08 |
11.1x |
Write |
4:19 |
10.6x |
- Other features
Overburning
|
Up to 82:38
|
CD text reading/writing
|
Yes
|
9. 3T Jitter Tests - Page 1
LG GSA-4081B Multi DVD Recorder -
Page 9
3T Jitter Tests
On an 80min 48x CD-R disc from Taiyo Yuden we burned the same AudioCD project
at 8x, 12x, and 16x. The 3T Pit & Land Jitter graphs are presented here.

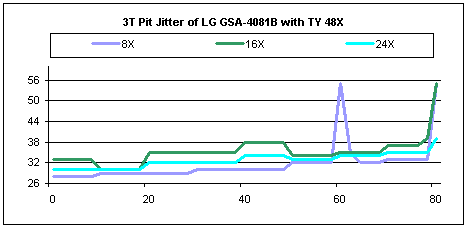

- 3T Pit results
The 3T Pit Jitter values start off at acceptable levels for all three speeds,
but soon rise above the 35ns Red Book limit. There are also some very disturbing peaks
along the way which rise to very high levels (56ns).
The average 3T Jitter values for all recording speeds are illustrated in the
following table.
The higher the speed, the higher the average jitter. As averages go, these are
not the worst we've had, but considering the first graph further above, the drive
does not appear to be a good performer.

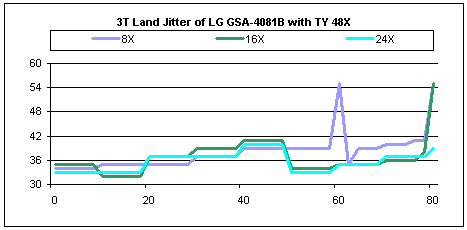

- 3T Land results
The average 3T Land results are very similar to those for Pit Jitter, perhaps
a little higher overall, but again with some nice peaks. The average values
presented in the graph below simply confirm this.
- Summary
The average 3T Pit values were just within limits while those for Land jitter
were not. In any case, at no speed did the drive manage to stay within limits and
in fact the maximum values are very high.
Recording Speed
|
3T Pit Jitter (ns)
|
3T Land Jitter (ns)
|
> 35ns
|
Max value (ns)
|
8X
|
32.10
|
38.51
|
Yes
|
55 Pit, 55 Land
|
16X
|
35.17
|
36.63
|
Yes
|
55 Pit, 55 Land
|
24X
|
32.66
|
35.71
|
Yes
|
55 Pit, 55 Land
|
The LG GSA-4081B Multi DVD Recorder did not produce particularly good results,
and at least at this point does not appear to be a quality writer.

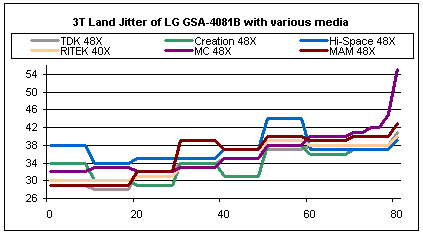

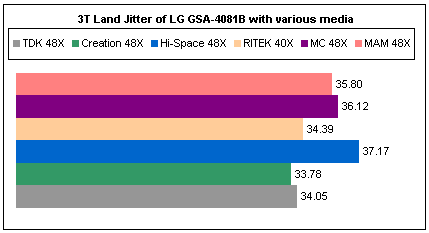

The following page where we check the jitter levels produced on various
manufacturers discs, should give a better indication of the writing quality
level of the drive.
10. 3T Jitter Tests - Page 2
LG GSA-4081B Multi DVD Recorder - Page 10
3T Jitter Tests
As in the previous test, we used Taiyo Yuden 80min 48x CD-R
media and burned the same AudioCD project at all available recording speeds.
Below you can see
the 3T Pit & Land Jitter graphs.
- 3T Pit results
No particular media brand managed to stay within the 35ns limit, although with
TDK media, the jitter level was acceptable and really only went ove the limit
towards the end. Ritek media could also be considered as acceptable.
The average 3T Jitter values for all media brands are illustrated in the
following table.
The average values also show that TDK and Ritek media are the best performers.
- 3T Land results
The average 3T Land results are all well over the limit with TDK,
Ritek and also Creation media having the best values. The average values
presented in the graph below simply confirms this observation.
- Summary
The average 3T Pit and Land jitter values reach very high levels,
there not being one manufacturer's media that performed within the 35nsec
standard for both Pit and Land jitter, although TDK and Ritek are probably
the best choice. However, the drive here, as in the previous set of quality
tests, does not present itself as a good writer.
Recording Speed
|
3T Pit Jitter (ns)
|
3T Land Jitter (ns)
|
> 35ns
|
Max value (ns)
|
TDK
|
30.17
|
|
Yes
|
37 Pit, 41 Land
|
Creation
|
36.49
|
33.78
|
Yes
|
41 Pit, 40 Land
|
Hi-Space
|
36.29
|
37.17
|
Yes
|
44
Pit, 44 Land
|
Ritek
|
32.61
|
34.39
|
Yes
|
37 Pit,
40 Land
|
MC
|
34.41
|
36.12
|
Yes
|
55 Pit,
55 Land
|
MAM
|
36.27
|
35.80
|
Yes
|
41 Pit,
40 Land
|
On the following page we check the C1 and C2 error rates for the same discs. These are the last of the quality tests.
11. C1 / C2 Error Measurements
LG GSA-4081B Multi DVD Recorder- Page 11
Writing Quality
Tests - C1 / C2 Error Measurements
The C1 / C2 error rate was measured for the recorded discs burned during the
previous writing tests (jitter). The software used was UMDoctor Pro II, and
the reader the Optorite DD0203 drive.
The charts below present the resultant C1/C2 error measurement graphs produced
when reading various manufacturers media, previously recorded at the indicated
speeds with the LG GSA-4081B Multi DVD Recorder. The tests include Taiyo Yuden 48x media
with recording speeds of 8x, 12x and 24x, TDK 48x, MC 24x, MAM 48x, HiSpace 48x,
Fuji 40x, and Creation 48x media all recorded at 24x.
- Taiyo Yuden 48x recorded at 8x

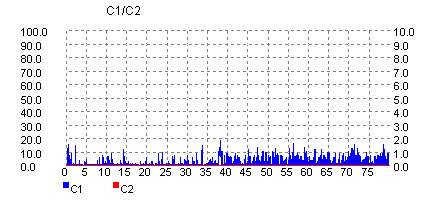

- Taiyo Yuden 48x recorded at 12x

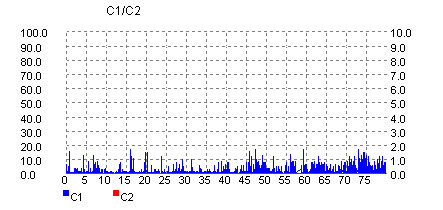

- Taiyo Yuden 48x recorded at 24x
-
Hi-Space 48x recorded at 24x
-

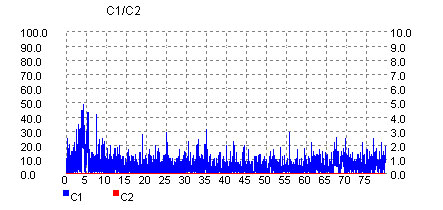

Creation 48x recorded at 24
Below is presented information on the CD-R media used in this test.
Disc
|
ID Code
|
Media ID
|
Taiyo Yuden 48X
|
Taiyo Yuden Company Limited
|
97m24s 1f
|
Creation 48x
|
Plasmon Data Systems Ltd
|
97m27s18f
|
MAM 48x
|
Mitsui Chemicals, Inc
|
97m27s58f
|
TDK 48x
|
TDK
|
97m15s05f
|
MC 48X
|
Mitsubishi Chemical Corporation
|
97m34s23f
|
Hi-Space |
Moulage Plastique de l'Ouest |
97m25s 7f |
Ritek |
Ritek Co. |
97m15s17f |
- Summary
The C1/C2 levels are quite good for all the discs.
MAM, Hi-Space and Creation produced some high peaks, representing higher
C1 error rates on specific areas.
12. DVD Recording Tests
LG GSA-4081B Multi DVD Recorder - Page 12
DVD Recording Tests
- Writing Performance
8x DVD+R
The
LG GSA-4081B Multi DVD Recorder supports writing speeds of 2.4x, 4x CLV, 8x
ZCLV with DVD+R media.
Unfortunatelly, the drive did not record at 8x with any DVD media we trialed.
4x DVD-R
The
LG GSA-4081B Multi DVD Recorder supports writing speeds of 2x 4x CLV with DVD-R media.
4x DVD+RW
The
LG GSA-4081B Multi DVD Recorder supports writing speeds of 2.4x, 4x CLV with DVD+RW media.
2x DVD-RW
The
LG GSA-4081B Multi DVD Recorder supports writing speeds of 2x CLV with
DVD-RW media.
Apart from DVD-RW writing at 2x, the remaining writing graphs all show a number
of glitches during the writing process. The odd glitch now and then is not uncommon
even with the best of drives, however the LG drive has been consisten in this respect.
- Burning Tests
We burned 4315MB of data on Verbatim 4x DVD+R and 2.4x DVD+RW media. The
recording times are illustrated in the following table:
DVD Recording Tests |
Drives |
Media |
Writing Speed |
Average Writing Time (min) |
LG GSA-4081B |
DVD+R |
4x |
14:10 |
|
DVD+RW |
4x |
13:50 |
|
DVD-R |
4x |
14:21 |
|
DVD-RW |
2x |
28:06 |

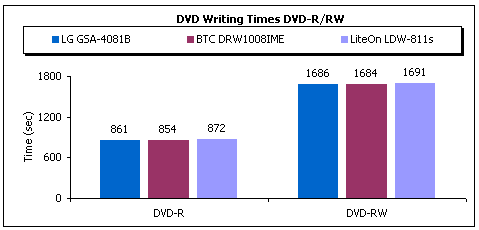

The writing times are steady and consistent and appear to be quite good. Keep
in mind that the DVD+R time for the LiteOn drive which is given here for comparison,
was carried out at 8x ZCLV, a time that was considered to be very good.
The following snapshots come from Nero, after successful DVD burning
for each of the DVD formats with the LG GSA-4081B Multi DVD Recorder.
The amount of data written is the same for all tests.
In the following case a 4x DVD+R media by Mitsubishi Chemicals
was not recorded successfuly.
Media
|
Code
|
Speed
|
Mitshubishi Chemicals 8x DVD+R
|
MCC003
|
4x
|
CMC Magnetics 8x DVD+R
|
CMC MAG E01
|
4x
|
Philips 8x DVD+R
|
PHILIPS C08 |
4x
|
Plextor 4x DVD+R
|
YUDEN000T01
|
4x
|
Mitshubishi Chemicals 4x DVD+R
|
MCC002
|
4x
|
N-Tech 4x DVD+R
|
MEDIA ID 001
|
4x
|
Ricoh 4x DVD+RW
|
RICOHJPNW11
|
4x
|
Mitshubishi Chemicals 4x DVD+RW
|
MKM A02
|
4x
|

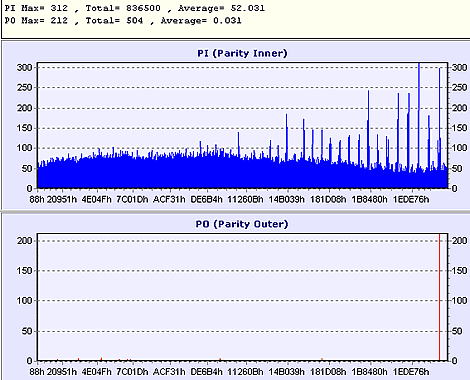

CMC Magnetics 4x DVD-R
|
CMC MAG AF1
|
4x
|
Ritek 4x DVD-R
|
RITEKG04
|
4x
|

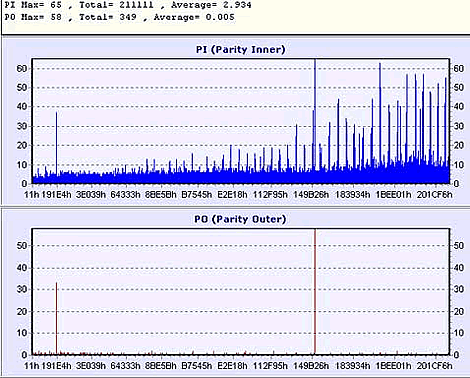

Mitshubishi Chemicals 4x DVD-R
|
MCC 01RG20
|
4x
|
N-Tech 4x DVD-R
|
AN31
|
-
|
Pioneer 2x DVD-RW
|
PVCW00V00245
|
2x
|
CMC Magnetics 2x DVD-RW
|
CMCW02
|
2x
|
Maybe the latest firmware upgrade, released by LG, will allow for 8x DVD+R
recording.
- InCD Packet Writing Tests
DVD-RW
|
Duration
|
Average speed
|
Read
|
3:52 min
|
1.3x
|
Write
|
5:59 min
|
0.8x
|
DVD+RW
|
Duration
|
Average speed
|
Read
|
3:59 min
|
1.27x
|
Write
|
4:04 min
|
1.25x
|
13. DVD-RAM tests
LG GSA-4081B Multi DVD Recorder - Page 12
DVD-Ram
DVD-RAM Features
The
RAM part of DVD-RAM name stands for Random Access Memory, which means that
the drive works in a similar way to a hard drive where content can be placed
anywhere on the disc and is indexed. This means that video editors can cut,
splice and edit video straight to DVD-RAM without having to worry about where
or how the data is being organised. This certainly allows for a more flexible
method of working with data when compared to the other formats.
A main advantage of the DVD-RAM format is the high reliability it offers.
In simple words, DVD-RAM detects off-tracking caused by defects during the
recording phase, and reduces laser power in order to avoid pre-recorded data
destruction. Subsequently, data writing is going on after the affected addresses
have been read and reallocated.
The defect management feature monitors the zones on the disc while writing
and when a defect zone is found, the DVD-RAM automatically replaces the sector
and completes writing. In addition, data verification and sector management
is carried out during the data writing process.
The
land track and wobbled groove track are allocated like a single-spiral track
to achieve the seamless recording and playback. A DVD-RAM disc has a Zoned
Constant Linear Velocity (ZCLV) format to maintain a higher constant data transfer
rate over the whole disc surface by changing its rotation speed, zone by zone.
The land and groove track structure enables the use of a stable tracking system,
essential for achieving an affordable and highly reliable DVD Video Recorder
and DVD-RAM drive.
Data is recorded consecutively on the land and groove tracks by units of 16
physical sectors (32 KB). The error correction code (ECC) system is the same
as that of the DVD-ROM format. The data encoded by the ECC system is scrambled
and is modulated by the same 8-16 RLL modulation code as in the DVD-ROM case.
A channel bit is converted to a multiple-pulse signal.
One of the most interesting features of DVD-RAM is data reliability and security
measures such as rewriting without data-loss, high overwriting cycle, built-in
defect management, and a secure copy protection scheme. In addition, random
accessibility, ending operation free, and 3X-speed recording are also notable.
DVD-RAM provides conceivable copy protection features such as Media-type Identification,
Content Scrambling System (CSS) Key suppression, Media Unique ID, and Media
Key Block (MKB). These features enable to implement a Copy Protection for Recordable
Media (CPRM) 5 scheme for the data encryption, which makes DVDRAM disc a secure
digital medium.
Bundled Software
The software bulked in
the retail package of the LG GSA-4081B includes DVD-RAM drivers for the
latest Windows operating systems, and some other very useful utilities for
performing several tasks. The installation of the driver pack is essential
in order to make full use of the DVD-RAM drive's features.
DVD-RAM drivers allow reading and writing to formatted discs under the Windows
9X/NT/2k/XP environment.
After installing the driver pack, Windows will recognize the GSA-4081B as
a removable drive and you will be able to start backup your important data
with
simple drag&drop moves.

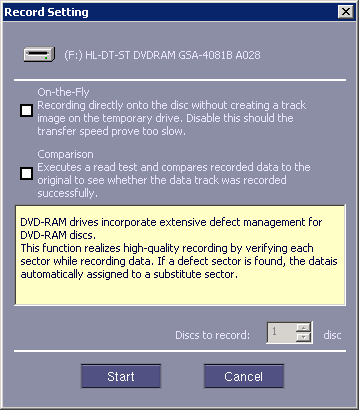

In addition, user is able to record on DVD-RAM through B's Gold 7 CD/DVD authoring
software.
Format software (DVDForm)
You must logically format a DVD-RAM disc before writing files on the disc.
Once you have logically formatted a DVD-RAM disc, it can be used to write
files just as you would do with a floppy disk or hard disk.
Such
a disc can be formatted using either UDF (Universal Disk Format) or FAT32 file
format. The DVDForm utility allows formatting of DVD-RAM discs. A user should
choose the format most appropriate to his own needs. Please note that you must
format 2.8 GB (8 cm) / 5.2 GB / 9.4 GB double-sided DVD-RAM discs one side
at a time.
- UDF (Universal Disk Format): UDF has been recently finalized for the DVD
family products. This new format is optimized for big capacity files, such
as Video and Audio capture and playback, being able to keep constant, high
transfer rates.
You can select the UDF 1.5 or the UDF 2.0 formatting modes. Select “Universal
Disk Format (UDF 2.0)” when you are going to use the DVD-RAM disc to
write audio-visual data. Select this format only if the disc is to be played
in a DVD Recorder that uses the DVD Forum's video recording standard or with
the recording software designed for personal computers that is based on the
above standard, or if an 8-cm DVD-RAM is to be used in a DVD video camera.
The UDF 1.5 format is appropriate when you are going to use the DVD-RAM disc
to write PC data. This format allows the transfer of the data between different
operation systems, such as between Windows and Mac OS.
- FAT Format: FAT32 is the Windows OS embedded file system and used for hard
disk drives.

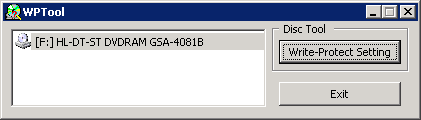

WPTool
The WPTool enables you to take full advantage of the characteristics of non-cartridge
DVD-RAM discs. You are able to Write-protect setting/release of DVD-RAM
discs. With non-cartridge DVD-RAM discs,
you are unable to use the write-protect tab on the cartridge to protect your
data. This software allows you to protect data on non-cartridge DVD-RAM discs.
Once a DVD-RAM disc is set to the write-protected mode, it is valid until this
setting is canceled by this software. This software can only be used with 4.7GB
DVD-RAM/R drive. The Write-protect Setting is not applied to 2.6 GB DVD-RAM
discs.
The software DVD disc also contain stwo other utilities. The
first one enables users to use the DVD-RAM under WindowsXP OS. The utility
justs disables the built-in CD recording feature of the OS in order to achieve
flawless compatibility with the DVD-RAM format.
The second utility is used to perform a "Dust Check" on the surface of non-cartridged
DVD-RAM media. Unfortunatelly these utilities are not compatible with the LG
GSA-4081B drive, and thus they cannot be used.
The software bundled is developed by Panasonic. However, LG chose not to include
the utilities above for this drive.
- DVD-RAM Recording
The LG drive supports 3x and 2x CLV writing when using Ver 2.1 DVD-RAM 4.7GB
discs and 2x in the case of Ver 2.0 media. For the following tests we used a
Panasonic DVD-RAM Ver.2.0 (2x) disc and a Maxell DVD-RAM Ver.2.1 (3x) disc.
Below you can see the CDSpeed transfer rate with blank DVD-RAM discs (writing).
2x DVD-RAM

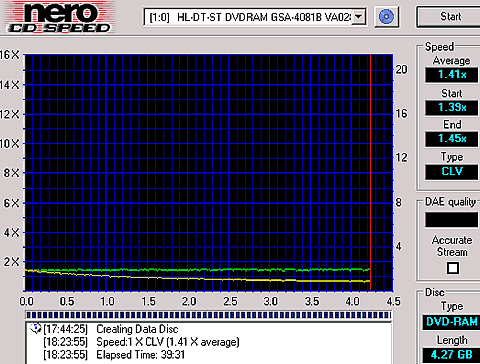

3x DVD-RAM
With the 2x disc, average recording speed was 0.95x, while
with the Maxell 3x DVD-RAM disc, average recording speed was 1.41x.
We should mention the fact that data verification and sector management is
carried out during the data writing process with a DVD-RAM disc. Although the
process maintains highly reliable data write, preventing data loss from scratches,
dust etc, the overall writing times are increased over the corresponding for
DVD recordabe/rewritable media (for the same speed). For this reason, the CDSpeed
writing test average speeds are also lower than expected.
Below, we
check the writing speed with actual recording tests through Nero Burning Rom
and the B's Gold 7.
We recorded a 4.316GB data video file with Nero Burning
Rom. The discs we used were the same Panasonic 2x and Maxell 3x DVD-RAM media.
The burning process with the 2x media took 1:03:08 hr, which is approximatelly
equal to 0.85x writing speed. In the second case, the Maxell disc was succesfully
burnt at 3x, but the total duration of the process was 38:39min, which corresponds
to approximately 1.37x. As was mentioned previously, the increase in burning
times is due to data verification and sector management carried out during the
data writing process. Nero Burning Rom does not offer any option to disable
the verification feature before burning.
In our past reviews of Panasonic DVD-RAM drives, we had used the The "B's
Gold 5" software in order to disable the verification function, and thus
achieve lower recording times. Unfortunatelly, this function is not available
in the B's Recorder 7, bundled in the retail package with the LG GSA-4081B.
In the following screenshot you can see the B's Gold 7 recording properties
window. The options here are either to check "On-the-fly" recording
or the "Comparison" option, in the event that you record from image
files. Notice that the verification feature cannot be disabled:
We recorded the same amount of data on both Panasonic (2x) and Maxell (3x)
DVD-RAM discs. In the table below you can see the recording times provided by
Nero Burning Rom and B's Gold 7:
DVD Recording Tests
|
Drive
|
Media
|
Writing Speed
|
Average Writing Time (hr)
|
Nero Burning Rom |
B's recorder Gold 7 |
LG GSA-4081B |
DVD-RAM Ver. 2.0
|
2x
|
1:03:08 (0.85x average) |
1:03:18 (0.84x) |
DVD-RAM Ver. 2.1
|
3x
|
0:38:39 (1.37x average) |
0:38:43 (1.375x) |
- Drag&Drop Writing
We formatted a Panasonic DVD-RAM Ver.2.0 and a Maxell DVD-RAM Ver.2.1 disc
under the UDF1.5, UDF 2.0 and FAT 32 modes. The procedure was a simple drag'n
drop through Window Explorer afer a quick format of each disc. The size of
the file was 403MB. All reading/writing times are available in the table below.
|
2x
DVD-RAM Ver. 2.0
|
3x
DVD-RAM Ver. 2.1
|
|
FAT
32
|
UDF
1.5
|
UDF
2.0
|
FAT
32
|
UDF
1.5
|
UDF
2.0
|
Read
|
3:48min
/ 1.3x
|
4:01min
/ 1.24x
|
3:58min
/ 1.25x
|
1:38min
/ 3x
|
1:40 min
/ 3x
|
1:37min
/ 3x
|
Write
|
7:11min
/ 0.69x
|
5:18min
/ 0.94x
|
5:13min
/ 0.95x
|
5:24min
/ 0.92x
|
3:38min
/ 1.36x
|
3:34min
/ 1.39x
|
14. KProbe PI/PO Error Measurements
LG GSA-4081B
Multi DVD Recorder - Page 13
KProbe PI/PO
quality results
The following screenshots show the PI/PO scans for the various DVD-/+R and
DVD-/+RW media, recorded with the LG GSA-4081B Multi DVD Recorder at the maximum permitted
speed.
The software used for the measurements was KProbe v1.1.28, the reader was
LiteOn LDW-811s and the ECC was set to 8. The specific methodology is very
dependent on the drive used as a reader, while the reliability of the PI/PO
provided output is also not technically confirmed. Hence as a result, we cannot
safely come up with conclusive results, although we do make a comparison of
the drive's behaviour when using various DVD recordable/rewritable media.
The recordable discs used came from Mitsubishi Chemicals, CMC Magnetics, N-Tech,
Plextor, Ritek, Philips, Pioneer, and Ricoh. Further details about each disc
type are presented at the bottom of this page.
-
Mitshubishi Chemicals 8x DVD+R (recorder at 4x)
-
CMC Magnetics 8x DVD+R (recorder at 4x)
-
Philips 8x DVD+R (recorder at 4x)
-
Plextor 8x DVD+R (recorder at 4x)
-
Mitshubishi Chemicals 4x DVD+R (recorder at 4x)
-
N-Tech 4x DVD+R (recorder at 4x)
-
Ricoh 4x DVD+RW (recorder at 4x)
-
Mitshubishi Chemicals 4x DVD+RW (recorder at 4x)
-
CMC Magnetics 4x DVD-R (recorder at 4x)
-

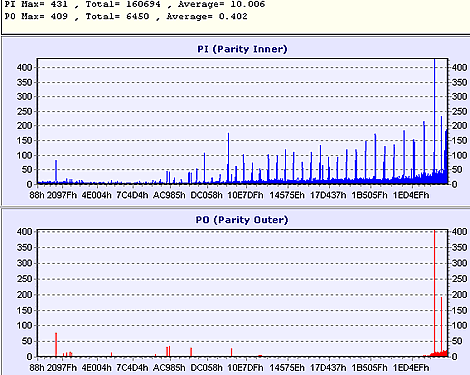

Ritek 4x DVD-R (recorder at 4x)
-
Mitshubishi Chemicals 4x DVD-R (recorder at 4x)
-

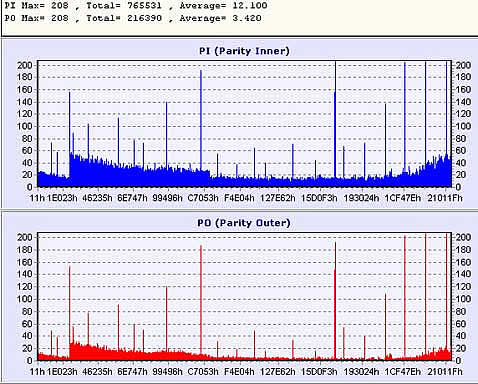

Pioneer 2x DVD-RW (recorder at 2x)
-
CMC Magnetics 2x DVD-RW (recorder at 2x)
Media
|
Code
|
Mitshubishi Chemicals 8x DVD+R
|
MCC003
|
CMC Magnetics 8x DVD+R
|
CMC MAG E01
|
Philips 8x DVD+R
|
PHILIPS C08 |
Plextor 8x DVD+R
|
YUDEN000T01
|
Mitshubishi Chemicals 4x DVD+R
|
MCC002
|
N-Tech 4x DVD+R
|
MEDIA ID 001
|
Ricoh 4x DVD+RW
|
RICOHJPNW11
|
Mitshubishi Chemicals 4x DVD+RW
|
MKM A02
|
CMC Magnetics 4x DVD-R |
CMC MAG AF1 |
Ritek 4x DVD-R
|
RITEKG04
|
Mitshubishi Chemicals 4x DVD-R
|
MCC 01RG20
|
Pioneer 2x DVD-RW
|
PVCW00V00245
|
CMC Magnetics 2x DVD-RW
|
CMCW02
|
15. Conclusion
LG GSA-4081B Multi DVD Recorder - Page 14
Conclusion
LG
GSA-4081B
|
Pros
|
Cons
|
- 3X DVD-RAM
writing
- Support
DVD-RAM reading
- Fast
DVD Video ripping
- Supports
CDS 200 and key2Audio audio protections
- Good
DVD seek times
- High
DVD writing quality
- Good
error handling with defected DVD-ROM discs
- Good
writing speeds
- Supports
CD-Text (reading/writing)
- Supports
ripping 90/99min discs
- Working
SafeDisc v.2.80 backups
- Low C1
error levels, no C2 with CD
|
- Questions
for 8x DVD+R recording
- Does
not support Mount Rainier
- DVD-RW/+RW
reading speed could be higher
- CD reading
speed should be higher
- Increased
3T jitter
- Very
low DAE speed
- Low CD
writing
- Overburn
only up to 82min
- Low CD
error correction
|
The latest recorder from LG Electronics, the GSA-4081B, is indeed a multi
DVD writer. It managed to burn all the media formats we tested, including the
DVD-RAM.
In the CD reading tests, the drive was slower than the other two drives
we used as comparison, due to its 32x supported maximum reading speed. The
seek times were good except for the full seek times which where were a little
high.
The maximum CD writing speed of 24x is lower than we excpected, however
the drive supports DVD-RAM writing and this more than makes up for any speed
deficiencies. The drive burnt all of media brands we tried without reporting
any problems. In the quality tests the C1 levels were low for almost all the
discs, while no C2 errors were reported. However the the jitter levels were
high, especially at 8x and 16x recording. Only TDK and Ritek media had acceptable
jitter levels.
With the CD error correction test, the drive ranks somewhere in the middle,
being neither one of the best nor among the worst drives we've tested. The
performance with the ABEX TCD-721R test disc was acceptable, however the ABEX
TCD-726 test disc which is normally a much easier disc proved a bit of a problem
for the LG drive. The CD-Check Audio Test Disc, where the drive could not read
even the second level was a major downfall. Obviously the drive is going to
have problems with anything other than the small scratches or defects on a
disc's surface.
The drive managed to make working backups for all SafeDisc protected game
titles except for v2.9, which however has proven to be a problem with almost
all drives.
In the DVD reading tests the drive performed well with good speeds and low
seek times. It is also had high DVD-Video transfer rates. The GSA-4081B showed
high DVD writing quality and according to Kprobe, the PI/PO measurements were
low. However we didn't manage to burn at 8x with DVD+R media, and this
is not good for the drive.
However LG released a new firmware upgrade that might solve the problem.
Unfortunately the firmware was released after the end of this test.
The drive's main advantage however is its ability to read and write DVD-RAM
media. DVD-RAM recording speed is 3x. There are currently few drives on the
market that support this format.
Although LG assumes that the drive is capable of 3x DVD-RAM recording, according
to our tests, the drive was slower at 1.3x due to data verification.
Finally, the drive is priced at around $135, which is an attractive and
competitive price, especially for anyone wanting DVD-RAM capabilities.
