1. Retail Package - Installation
BTC DRW1008IM DVD±RW recorder -
Page 1
After
the success of its DRW 1004IM dual recorder, BTC enters the 8x DVD+R
battle with the release of the DRW1008IM. The promising
model is capable of recording on all availiable media formats in the market,
except
DVD-RAM.
The
drive can burn DVD+R/RW media at 8x and 4x respectively. It also supports 4x
for DVD-R and 2x for DVD-RW. The maximum writing speed for CD-R media is 40x,
while for CD-RW it is 24x. The manufacturers specifications are given below.
- Specifications
Model name |
DRW 1008IM |
Interface |
E-IDE/ATAPI , MMC compliant |
Disc data capacity |
(CD) 74min/650MB, 80min/700MB
(DVD) 4.7GB |
Supported media for writing |
DVD+R, DVD-R, DVD+RW, DVD-RW, CD-R, CD-RW |
Writing formats |
(DVD+/-R, DVD+/-RW) DVD-ROM, DVD-Video(CD) CD-DA, CD-ROM,
CD-ROM XA, CD-Extra, CD-I, Mixed-Mode CD, Video CD, Photo CD, CD-TEXT,
Bootable CD, CD-R, CD-RW, Multi-Session |
Writing methods
|
(DVD+/-R, DVD+/-RW) Random Access Write, Sequential Write(CD-R/RW)
Track at Once, Disc at Once, Session at Once, Multi-Session, Packet Writing |
Writing speed |
(DVD+R) 1x, 2x, 4x,6x,8x
(DVD-R) 1x, 2x, 4x
(DVD+RW) 1x, 2x , 4x
(DVD-RW) 1x, 2x
(CD-R) 16x, 24x, 32x, 40x
(CD-RW) 4x, 10x, 16x, 24x |
Reading speed |
DVD+R-R 8x
DVD-RW/+RW 6x
DVD-ROM 12x
CD-ROM/-R 40x
CD-RW 32x
|
Data transfer rate |
Max. 33MB/sec |
Access time |
(DVD) 160 ms (12X)
(CD) 130 ms (40X) |
Data buffer |
2 MB |
Disc loading |
Tray loader, dust sealed |
Weight |
1 Kg |
Mounting method |
Horizontal |
Dimensions (WxHxD) |
148.6 x 41.8 x 193.3 mm |
The drive uses a 2MB buffer memory. The RAW DAO 96 writing (CD) is supported
while Mount Rainier is not.
The BTC DRW1008IM uses the RPC II region control, allowing a user to change
the drive's region at most 5 times. For our tests, we set the region
code to 2 (Europe).
- The drive
BTC's retail package includes two CD-ROMs, containing Ahead's Nero complete
package for recording, authoring and editing, plus PowerDVD with Power Producer
and MediaShow also included.
The warranty, an audio cable and mounting screws complete the
retail package contents.
The drive's front panel is colored light grey and has more than the usual
markings and logos displayed. On the tray door on the left we have the "dual"
logo signifying that this is a dual recorder, and on the right the 8x marking.
Below, from left to right are the internet address for a driver update site
where you can keep your drive's firmware up to date, the activity/power LED,
the DVD RW, RW DVD-ReWritable, and Compact Disc ReWritable logos, and finally
the eject button. Above and a little to the left of the eject button is the
emergency eject hole. The activity LED lights up green when busy and blinking
orange when recording is in progress.
On the rear panel (schematic included above for clarity) there are
the analogue and digital audio outputs (SPDIF), the IDE connector
and the power input.
Removing the screws and opening the drive's cover voids the drive's warranty.
For reference reasons, we post the following pictures.
Mediatek's MT1818E chip used on this recorder, is from the
same series as the one used on theLiteOn LDW-811S and Pacific Digital U-30201
drives.
- Installation
The BTC DRW1008IM was connected to our test PC and was identified
as "DVDRW IDE1008" under
WinXP. All tests were done with firmware revision v0055 (available soon).
The following pages include the test results of the BTC drive in comparison
to two other dual DVD burners, the LiteOn LDW-811S and the Optorite DD0401.
2. Data CD Reading Tests
BTC DRW1008IM DVD±RW recorder - Page 2
Data CD Reading Tests
- Pressed CD results (Click for
CDSpeed results)
Looking at the graph above for pressed CD media, it can be seen that the
BTC DRW1008IM was the fastest among the three drives. The final speed reached,
43.84x is quite a high reading speed, and confirms the manufacturers specifications
for 40x reading.
On the seek times test, the drive recorded good times but not the best, being
slightly slower that the Optorite DD0401.
- CD-R Media results (Click for
CDSpeed results)
We next made a copy of the pressed CD used in the previous test, in order
to check the drive's behaviour with CD-R media. Once again the BTC drive performed
very well, being the fastest.
Here too, while the drive's seek times were quite good, it was again a shade
slower than the Optorite drive.
- ReWritable Media (Click for
CDSpeed results)
For this reading test with ReWritable media, we used 24x High Speed rewritable
media from Mitsubishi Chemicals.
The reading speed with CD-RW media was quite good. The reported speeds place
the drive in the middle of our typical comparison, with Optorite proving to
be the fastest here.
3. CD Error Correction Tests
BTC DRW1008IM DVD±RW recorder -
Page 3
Error Correction Tests
In the following tests we check the drive's behaviour when reading
scratched / defective audio discs. The test discs used were the ABEX series
from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num:
844191
|
Errors (Loudness) dB(A)
|
Num:
47605
|
Avg:
-74.0 dB(A)
|
Max:
-36.0 dB(A)
|
Error Muting Samples
|
Num:
2697
|
Avg:
1.0 Samples
|
Max:
11 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
77
points (out of 100.0 maximum)
|
The drive had very good behaviour with the ABEX TCD-721R test disc, giving
a very low count on the number of errors at an average of -74 dB. Notice that
the maximum value was at -36 dB. The muting samples were 2697 while none were
skipped. The score of 77 points is a good one.
- ABEX TCD-726
Errors total
|
Num:
37
|
Errors (Loudness) dB(A)
|
Num:
4
|
Avg:
-73.6 dB(A)
|
Max:
-58.4 dB(A)
|
Error Muting Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
94.3
points (out of 100.0 maximum)
|
The Abex TCD-726 test disc is much easier for drives in general to read,
and as such, the BTC DRW1008IM drive corrected almost all
errors, only 4 were reported. The score in this test is 94.3 points out of
100, which is very good.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
more difficult tests. These tracks are referred to as Check Level-1 through
Check Level-5.
The
tracks are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
out
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested drive.
Error Level
|
1
|
2
|
3
|
4
|
5
|
BTC DRW1008IM
|
5/5
|
5/5
|
5/5
|
5/5
|
0/5
|
The drive succesfully passed the first 4 check levels for this test. The 5th
tracks produced a constant noise in the background. Notice that the 5th check
level, which has a scratch a size of 1.500 mm, is difficult to read with most
drives. The fact that the drive managed to read perfectly up to the fourth level
is quite good, and we can comfortably say that the drive is capable of reading
defective discs.
- Summary
Test Disc
|
Reading Speed
|
Score
|
ABEX TCD-721R
|
Max
|
77
|
ABEX TCD-726
|
94.3
|
Average Score
|
85.7
|
Combining the two scores from the ABEX tests gives an average total score of
85.7 points out of 100. This is a very good overall score.
4. DVD Reading Tests
BTC DRW1008IM
DVD±RW recorder -
Page 4
DVD reading tests
- Single Layer DVD-ROM (Click
for CDSpeed results)
In the DVD single layer read test, BTC and LiteOn produced very similar speeds,
while Optorite was slowest by only a small difference. The reported 12.4x speed
for the BTC DRW1008IM confirms the manufacturers specifications for 12x reading.
The manufacturer's specifications give the drive as having a seek time of 160msec
for DVD media. NeroCDSpeed reports that the drive needed 113ms for random seek,
putting it well within specs, while it needed 204ms for full seek time, and
134 ms for 1/3 seek. The seek times nonetheless, are a little on the slow side,
while best seek times came from LiteOn drive's with high
advance.
- Dual Layer PTP DVD-ROM (Click for
CDSpeed results)
The two layers of a PTP DVD-ROM disc are read sequentially with the drive
starting the read process from the inner tracks on the disc, which is the beginning
of each layer,
and progressing outwards towards to the outer tracks for each layer.
According to the manufacturer, the BTC DRW1008IM has a maximum reading speed
of 8x CAV with dual layer DVD-ROM discs. The drive managed to reach a maximum
reading speed of 8.28x and was only marginally slower than the other two.
Here too, the drives seek times are a little slow. LiteOn had the bets seek
time values.
- Dual Layer OTP DVD-ROM
The
first layer of an OTP dual layer DVD-ROM is read exactly the same way as the
first layer of the PTP disc we tested previously. The difference here is the
reading strategy
of the second layer on the disc. The beginning of the second layer is located
in the outer part of the disc, so the drive starts reading from the outer tracks
inwards towards the inner tracks of the disc.
Both layers were read flawlessly without reporting any error. The drive finished
the test with a peak speed of over 8x.
- DVD Ripping Tests
We measured the DVD-Video ripping speed of the BTC DRW1008IM using the
latest version of DVD Decrypter. The DVD Video title is the "Matrix" pressed
DVD-Video.
The BTC drive ripped the movie to hard disk at 7174 KB/s average. The performance
is good but a deal slower than the LiteOn drive which posted the highest transfer
rate.
- DVD Recordable / Rewritable reading Tests
The chart below shows the Nero CDSpeed average reading speed results with
the following media:
The BTC DRW1008IM returned satisfactory average speeds, especially with +/-R
media. But once again the Optorite drive proved to be the most capable reader
this time with DVD media.
5. DVD Error Correction Tests
BTC DRW1008IM
DVD±RW recorder -
Page 5
DVD Error Correction
Tests
In the following
tests we examined the DVD reading capabilities of the BTC DRW1008IM drive
with scratched / defective DVD media. For the tests we used CDVD
Benchmark and Nero CDSpeed. The reference test media
come
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its
surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer
rate test.
The drive read the 821 test disc without reporting any read errors. From the
graph above it can be seen that the drive did not have any problems reading
over the defective areas, regardless of the defect size. The maximum speed reached
at the end of the test was 12x.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on the surface and instead
defective areas ranging in dimensions from 0.5 to 1.1 mm. There
are also fingerprints with height
between
65 and
75 micrometers.
As in the previous test, no read errors occured with this disc. The drive
again managed to reach maximum reading
speed
slightly in excess of 12x CAV.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, on both layers.
Here too, the drive performed very well, this time with dual layered media.
The maximum speed reached was 8x, which shows the drive's reading ability with
such media.
ABEX TDR-845
This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
both defective areas and fingerprints. The dimensions of the defective areas
range from 0.5 to 1.1 mm and the fingerprints have height sized from 65
to 75 microns (micrometres).
This disc was also not a problem for the drive, although there are a few more
speed variations present than on previous tests (random yellow dots) as the
drive marched over the different defects present on this disc.
ABEX TDV-541
The
TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The
disc is based on the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The disc checks the layer switch operation
from layer 0 to layer 1 and also includes test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correcting
capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.
The drive read the TDV-541 test disc under CAV mode without reporting any readable
errors. The graph above reveals the good error correcting ability of the BTC
drive. The switch from the first layer to the second did not produce any problems
at all.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer
Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial
black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65
- 75 micrometre high fingerprints.
This disc too, seems to be no problem for the BTC drive. All
in all, it performed exceedingly well in these series of tests with defective
media.
6. Protected Disc Tests
BTC DRW1008IM
DVD±RW recorder -
Page 6
Protected Disc
Tests
- Reading Tests
To create an image of the various protected titles onto a hard disk, we used
CloneCD v.4.3.1.9 software and the appropriate settings, depending on the protection
type of the inserted disc. Below are summarized the capabilities of the BTC
drive, according to CloneCD software. Notice that the drive supports writing
of CD+G under RAW DAO:
The game titles we used for each protection scheme are given in the
table below:
Game Title
|
Protection Scheme
|
PSX "NBA Jam Extreme"
|
Lybcrypt
|
Serious Sam The Second Encounter v1.07
|
SafeDisc v.2.60.052
|
VRally II
|
SecuROM v.2
|
PSX Pressed Media
SafeDisc v.2
SecuROM v.2
The BTC drive managed to rip the contents of all test media in very short time,
with high speed. It was the fastst among the drives in the first two tests,
with PSX and SafeDisc, while being second (although not by much), to the LiteOn
drive with the Securom game title.
- Writing Tests
The BTC DRW1008IM supports the DAO-RAW writing mode.
For checking the drive's EFM correction status, we used 3 different game titles
with different SafeDisc 2 versions with the latest software patches installed.
After making the images of the various titles to the hard disk, we burned them
(maximum speed) with CloneCD. Two different discs were created for each
title; one with the "Amplify Weak Sectors" enabled and one more with
the
function disabled.
The table below shows the results of the attempted backups and whether
they ran (game installed / played normally), or not.
Drive |
Game Title |
SD2 Build |
Settings |
Amplify Weak Sectors On |
Amplify Weak Sectors Off |
BTC DRW1008IM |
Max Payne |
v2.51.020 |
Yes |
Yes |
Serious Sam - The Second Encounter
v1.07
|
v.2.60.052 |
Yes |
Yes |
The Sims Unleashed |
v.2.8 |
Yes |
Yes |
The Sims Superstar |
v2.9 |
No |
No |
The backups were tested in many CD-RW and DVD-ROM drives, and both installation
and playability worked flawlessly. Only Sims Superstar failed, which uses the
SafeDisc v2.9 protection scheme, but this is not at all unusual as virtually
all drives have failed with this protection scheme.
7. CD-DA - DAE Tests
BTC DRW1008IM
DVD±RW recorder -
Page 7
DAE Tests
- Pressed and CDR AudioCD results
The BTC DRW1008IM uses 32x CAV strategy for CD-DA.
Below is the resultant output from the CDSpeed transfer rate test with a pressed
audio CD:
According
to CDSpeed, the average reading speed with this disc was 32.36x, while the
reported seek times were rather good.
We ripped the contents of the same audio disc to our hard disk, using the
CDDAE software. The test returned an average ripping speed (burst mode) of 30.2x,
which is an acceptable speed. The LiteOn drive was the fastest at 39.9x while
the Optorite was the slowest.
The same pressed audio disc was copied onto a CD-R and was read
again with CDspeed. This time the BTC drive was the slowest among the three
drives with an average speed of 27.2x. The LiteOn drive once again was way
ahead with a speed of 39.8x.
- Advanced DAE Quality
In Nero's CD Speed Advanced DAE test, the BTC drive reported
an average speed of 21x, which is a poor performance, and a quality score of
100. CDSpeed reports that the drive can read Cd Text
and Subchannel Data but not Leadin and Leadout.
- Support of 90/99mins AudioCDs
BTC managed to rip the contents of our 90/99min test discs
successfully.
- Reading/Ripping Protected AudioCDs
For this test procedure we used two audio discs with different
audio protection schemes. We tested for both recognition and ripping to the
hard disk. The software used was Exact Audio Copy.
* Pressed Audio disc protected by Sony Key2Audio (Celine
Dion - New Day
Has Come)
* Pressed Audio disc protected by Cactus Data Shield 200 (Natalie
Imbruglia - White Lilies sIsland)
|
Key2Audio |
CDS200 |
EAC |
BTC DRW1008IM
|
OK
|
Recognize the disc but cannot rip or play the contents
|
LiteOn LDW-811S
|
OK
|
OK
|
Optorite DD0401
|
OK
|
Recognized the disc.Ripped and played
all tracks on the disc except the first.
|
The BTC DRW1008IM performed well with our Key2Audio disc, managing to both
read and rip. This wasn't the case with our other audio CD however, which uses
CDS200 protection. The BTC DRW1008IM recognized the disc but unfortunately could
neither rip or play the contents of the specific disc. For the same discs, the
Optorite drive only had problems with the first track on the CDS200 protected
disc, while the LiteOn managed to rip and play both.
8. CD Recording Tests
BTC DRW1008IM
DVD±RW recorder - Page
8
CD Recording Tests
- CD-R Writing Tests
The BTC DRW1008IM supports 8x, 16x, 24x, 32x and the maximum 40x CAV
writing speeds. Below you can see the CDSpeed writing simulation graph with
Taiyo Yuden
48x CD-R
media.
The
writing process began at 18.64x and finished at 42.14x reporting an average
recording speed of 31.91x. According to this, the manufacturers specifications
for 40x recording are comfirmed. The drive uses CAV mode.
- Recording Times
We created an 80min data compilation with Nero Burning Rom and recorded it
on a 700MB disc. The best time was that of the BTC drive, completing the task
in 3:09 minutes, with 40x writing speed selected. The performance
is very good for 40x recording speed.
Below are the best writing times at 8x, 16x,
24x, 32x and 40x with a Taiyo Yuden media.
In the followwing graph you can see the recording times with
various media brands.
Often, while recording with Creation, Hi-Space and Taiyo Yuden
media at a speed of 40x, the buffer underrun error was avoided on one occassion
where we received the following message.
- CD-RW Writing Tests
The
BTC DRW1008IM supports 24x P-CAV maximum rewriting speed, with Ultra Speed rewritable
media. Below are the results from the CDSpeed writing simulation test with blank
24x US-RW media from Mitsubishi Chemicals.
The test once again confirmed the drives specifications for 24x rewriting.
The burning procedure started at 18.77x and finished at 24.41x having an average
of 23.54x.
As a comparison, we provide the rewriting time of the BTC drive
against those of the LiteOn and Optorite drives.
We also used Nero Burning Rom software to burn a data disc using 24x US-RW
media from Mitsubishi Chemicals again. The data compilation burnt had a size
of 651 MB and the duration of the recording process was 3:40
minutes.
From BTC's official website, you can stay informed regarding CD media brands
that the drive supports. For your convinience we have included the links below:
CD-R
CD-RW
- Packet Writing Tests
Using InCD and Mitsubishi Chemicals 24x US-RW media for all Packet Writing
tests, quick format took 32sec. The formatted disc had
530mbs of free space. We copied a 403 MB file (412.822 KB) from Hard Disk
(on the same PC as the recorder) to the formatted RW media through Windows
explorer (drag and drop).
Operation
|
Duration
|
Average speed
|
Read
|
2:27 min
|
18.7X
|
Write
|
2:21 min
|
19.5X
|
- Other features
Overburning
|
Up to 96min
|
CD text reading/writing
|
Yes
|
9. 3T Jitter Tests - Page 1
BTC DRW1008IM
DVD±RW recorder -
Page 9
Writing Quality Tests - 3T Jitter Tests

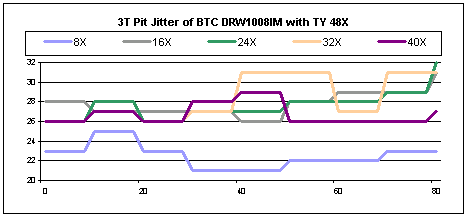

On an 80min 48X CD-R disc from Taiyo Yuden we burned the same AudioCD
project at 8x, 16x, 24x, 32x and 40x. The 3T
Pit & Land Jitter graphs are presented here.
- 3T Pit results
As we can easily conclude, from the given picture above, the BTC drive performed
extremely well, keeping the jitter values at a low, and certainly well within
the Red Book level. No matter what the speed, the drive reported good quality
results. The 8x recording speed was the best while all the others were also
rather good, especially 40x.
The average
3T Pit Jitter values for all recording speeds are illustrated in the following
table.
Here it can be clearly seen that the pit jitter levels were very
low.
- 3T Land results
As with pit jitter, land jitter values were also low and below the Red
Book limit of 35nsec. All the speed had quality results.
The following average graph confirms the low levels.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
8X
|
22.51
|
24.27
|
No
|
25 Pit, 28 Land
|
16X
|
27.71
|
28.44
|
No
|
31 Pit, 31 Land
|
24X
|
27.49
|
27.20
|
No
|
32 Pit, 30 Land
|
32X
|
28.32
|
26.95
|
No
|
31 Pit, 30 Land
|
40X
|
26.76
|
27.27
|
No
|
29 Pit, 29 Land
|
- Summary
The BTC DRW1008IM has proved to be a high quality CD recorder, regardless of
recording speed.
The following page where we check the jitter levels produced on various
manufacturers discs, should give a better indication
of the
writing
quality
level
of
the
drive.
10. 3T Jitter Tests - Page 2
BTC DRW1008IM
DVD±RW recorder -
Page 10
Writing Quality Tests - 3T Jitter Tests
The same Nero compilation, as in the previous test, was used in order to burn
media from different brands. The recording speed was the maximum 40x in all

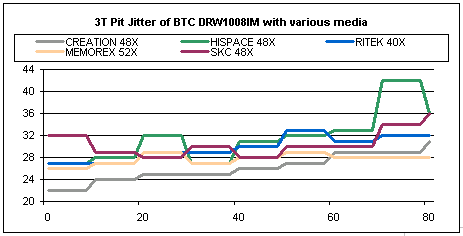

cases. The following graphs show the 3T Pit & Land Jitter results.
- 3T Pit results
With all media, the jitter levels were once again low. Only Hi-Space and SKC
media passed over the limit of 35nsec at the end.
The average 3T Jitter values for all manufacturers discs are illustrated in
the following graph.
- 3T Land results
Once again all the media brands gave low land values, with the exception of
Hi-Space which again, towards the end managed to go well over the limit.
The average values presented below illustrates the drives quality recording
levels.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
Creation 48x
|
26.37
|
26.00
|
No
|
31 Pit, 31 Land
|
Hi Space 48x
|
32.07
|
31.61
|
Yes
|
42 Pit, 42 Land
|
Ritek 40x
|
28.24
|
29.80
|
No
|
33 Pit, 33 Land
|
Memorex 52x
|
28.37
|
27.76
|
No
|
29 Pit, 30 Land
|
SKC 48x
|
30.46
|
30.27
|
Yes
|
36 Pit, 35 Land
|
- Summary
Except for Hi-Space media, the values for the various manufacturers discs seem
to be low and steady. Certainly the average values were very good, and the BTC
drive seems to be on the way to establishing itself as a high quality recorder.
On the following page we check the C1 and C2 error rates for the same discs.
These are the last of the quality tests.
11. C1 / C2 Error Measurements
BTC DRW1008IM
DVD±RW recorder -
Page 11
Writing Quality Tests - C1 / C2 Error Measurements
The C1 / C2 error rate was measured for the recorded discs burned during
the previous writing tests (jitter). The software used was UMDoctor Pro II,
and the reader the Optorite DD0203 drive.
- Taiyo Yuden 48x recorded at 8x
- Taiyo Yuden 48x recorded at 16x
- Taiyo Yuden 48x recorded at 24x
- Taiyo Yuden 48x recorded at 32x
- Taiyo Yuden 48x recorded at 40x
- Memorex 52x recorded at 40x
Below is presented information on the CD-R
media used in this test.
Disc
|
ID Code
|
Capacity
|
Taiyo Yuden 48X
|
TaiyoYuden 97m24s01f
|
79:59:72
|
Memorex 52x
|
Fuji 97m:26s45f
|
79:59:73
|
RITEK 48x
|
Ritek 97m15s17f
|
79:59:71
|
Creation 48x
|
Plasmon 97m27s18f
|
79:59:71
|
Hi-Space 48X
|
MPO 97m25s07f
|
79:59:00
|
SKC 48X
|
SKC 97m26s26f
|
79:59:73
|
- Summary
In the main, these are very good results. The C1 levels are rather low, with
the exception of Creation media. C2 errors were reported with Creation and more
pronounced with Hi-Space media. In the case of Creation media, the C2 errror
levels appear to be located in the same region on the disc which produced the
high jitter values in our previous tests. Other than this, the remaining results
were very good.
12. DVD Recording Tests
BTC DRW1008IM DVD±RW recorder - Page 12
DVD Recording Tests
- Writing Performance
The BTC DRW1008IM supports DVD-R/RW and DVD+R/RW writing. The maximum
supported speed for DVD+R is 8x (4x~6x~8x Z-CLV), 4x CLV for DVD-R, 4x CLV
for
DVD+RW and 2x CLV for DVD-RW media.
Currently, only a few 8x certified DVD+R media are available on the market.
The supported 8x DVD+R media which we tested came from Mitsubishi Chemicals
and Taiyo Yuden.
8x DVD+R
An
8x DVD+R disc from Mitsubishi-Kagaku was used to check the 8x writing strategy
of the drive. The software used was Nero CDSpeed, and its "create disc"
function.
The drive started writing at 3.98x, maintaining this speed until the 750MB
address mark on the disc, where the speed changed to 6x. This speed was kept
until the 2.75GB address mark where the drive accelerated to the final 8x for
the rest of the recording. Overall average speed was 6.31x.

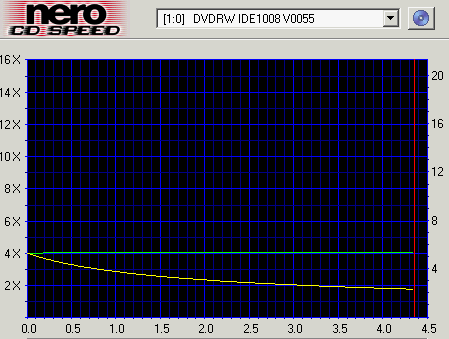

Below are the same tests with DVD-R, DVD+R and DVD+RW media.
4x DVD-R
4x DVD+RW
2x DVD-RW
- Burning Tests
The best recording times are illustrated in the following table after burning
4315MB of data on various DVD±R, DVD±RW media, using the maximum
allowed writing speed for each disc. For
comparison, we
also include
the
writing
times for the
Optorite DD0401 and LiteOn DRW-811S drives.
As you can see fron the tables above, the BTC drive was the fastest with
DVD-R/RW media. And while there was not much between the drives, only times
with DVD+R media proveda little on the slow side.

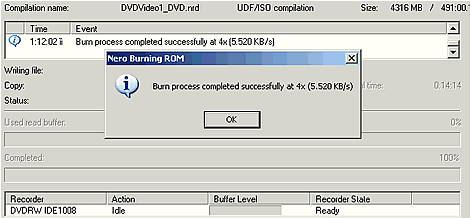

The following screenshot was taken from Nero, after successful
burnings. The
amount
of data
is the same for all the tests.
-
Mitshubishi Chemicals 8x DVD+R
-
Mitshubishi Chemicals 4x DVD+RW
Media
|
Code
|
Speed |
Mitshubishi Chemicals 8x DVD+R
|
MCC003
|
8x |
Taiyo Yuden 8x DVD+R
|
YUDEN000 T01
|
8x |
Mitshubishi Chemicals 4x DVD+R
|
MCC002
|
4x |
N-Tech 4x DVD+R
|
MEDIA ID 001
|
4x |
Pioneer 4x DVD-R
|
PVCR001002
|
4x |
Pony 4x DVD-R
|
RITEKG04
|
4x |
Mitshubishi Chemicals 4x DVD-R
|
MCC 01RG20
|
4x |
Mitshubishi Chemicals 4x DVD+RW
|
MKM A02
|
4x |
Sentinel 2.4x DVD+RW
|
SENTINELW01
|
2x |
Pioneer 2x DVD-RW
|
PVCW00V00245
|
2x |
TDK 2x DVD-RW
|
TDK502sakuM3
|
2x |
The table above presents the writing speeds of the drive for the various
media formats.
From BTC's official website, you can stay informed regarding DVD media brands
that the drive supports. For your convinience we have included the links below:
DVD+R
DVD+RW
DVD-R
DVD-RW
- Packet Writing Tests
For this test we copied a 403 MB file (412.822 KB) from Hard Disk (on the
same PC as the recorder) to the formatted RW media through Windows explorer
(drag and drop).
DVD-RW
|
Duration
|
Average speed
|
Read
|
2:08 min
|
2.4X
|
Write
|
2:34 min
|
1.99X
|
DVD+RW
|
Duration
|
Average speed
|
Read
|
2:07 min
|
2.4X
|
Write
|
3:58 min
|
0.9X
|
13. KProbe PI/PO Error Measurements
BTC DRW1008IM DVD±RW recorder - Page 13
KProbe PI/PO
quality results
The following screenshots show the PI/PO scans for the various DVD-/+R
and DVD-/+RW media, recorded with BTC DRW1008IM at the maximum permitted
speed.
The software used for the measurements was the KProbe v1.1.26, the ECC ws
set to 8 and the reader was LiteOn LDW-811s. The specific methodology is very
dependent on the
drive
used as a reader, while the reliability of the PI/PO provided output is also
not technically confirmed. Hence as a result, we cannot safely come up
with conclusive results,
although we do make a comparison
of the drive's behaviour
when using
various
DVD recordable/rewritable
media.
The recordable discs used came from Mitsubishi
Chemicals, Taiyo Yuden, N-Tech, Pioneer, Sentinel, TDK and Ritek. Further details
about each disc type are presented at the bottom of this page.
-
Mitshubishi Chemicals 8x DVD+R
-
Mitshubishi Chemicals 4x DVD+R
-
Mitshubishi Chemicals 4x DVD-R
-
Mitshubishi Chemicals 4x DVD+RW
Media
|
Code
|
Mitshubishi Chemicals 8x DVD+R
|
MCC003
|
Taiyo Yuden 8x DVD+R
|
YUDEN000 T01
|
Mitshubishi Chemicals 4x DVD+R
|
MCC002
|
N-Tech 4x DVD+R
|
MEDIA ID 001
|
Pioneer 4x DVD-R
|
PVCR001002
|
Pony 4x DVD-R
|
RITEKG04
|
Mitshubishi Chemicals 4x DVD-R
|
MCC 01RG20
|
Mitshubishi Chemicals 4x DVD+RW
|
MKM A02
|
Sentinel 2.4x DVD+RW
|
SENTINELW01
|
Pioneer 2x DVD-RW
|
PVCW00V00245
|
TDK 2x DVD-RW |
TDK502sakuM3 |
14. Conclusion
BTC DRW1008IM
DVD±RW recorder -
Page 14
Conclusion
Pros
|
Cons
|
- 8x DVD+R writing
- 4x DVD+RW/-R writing
- 40/24/40 CD-RW
- Very Good
CD/DVD error correction
- Good
writing quality with CD
- Creates working backups of SafeDisc v.2.80
- Supports CD-Text (reading/writing)
- Supports 99min audio discs
- Fast DVD ripping
- Fast ripping
speed with protected game discs
|
- 6x DVD±RW
reading
- Cannot
playback/rip CDS200 Audio
CD
- Low DAE
speed
- Increased DVD
seek times
- Writing
quality problems with specific CD-R
|
Overall, the BTC drive performed satisfactorily and appears to be a reliable,
quality recorder. The reading speeds for CD/DVD were rather good. Although
we
estimate that the 6x reading for DVD+RW and DVD-RW is low and could be faster.
The seek times were acceptable with CD media but they could be better with
DVD
media.
The error correction for Audio CDs was very good. The drive returned
low loudness and muting sample errors with no samples skipped. In the DVD error
correction tests, the BTC drive performed excellently. All of our test DVDs
played succesfully from the drive without any errors reported. The drive just
ignored the defeactive areas on those discs.
In the protected disc tests, the BTC drive had good behaviour, although the
drive cannot make SafeDisc v2.9 working backups, however all previous versions
are supported. The drive is also very fast ripping with all the game types we
tried.
From the DAE test that we carried out we fell that the drive's response could
be better. The drive can read fast Audio CD's but the average speed in the advanced
DAE quality test were rather low, only 21x. Plus the fact that the drive didn't
manage to play/rip the CDS200 protected Audio CD.
In the writing test the drive performed well, with low times recorded. The
only concern was that accasionally the "buffer underrun was avoided"
error messsage popped up. The drive also supports up to 96min overburning.
From the quality measurement tests that we carried out, the drive reported
very low jitter values at all recording speeds and with all the media brands.
Only with Hi-Space media some C2 error were reported, but in our opinion this
cannot deter from the drive's very good performance, among the best we have
seen for these tests.
In the DVD recording tests we would like to see the writing speed beginning
at 6x rather than 4x, and the duration with 6x writing to be less. Apart from
this the drive performed well without errors. The recording quality for DVD
media was good, according to KProbe measurements.
BTC will plans to release a Bit Setting software for the drive in order to
achieve better compatibility for the DVD+R/+RW format.
BTC DRW1008IM is available in the market at a price of 140-130 Euros, depending
on your area. The price is quite competitive, although you will possibly need
some extra searching over the net to find it at this price.
