1. Installation
ASUS
CRW5224 CD-RW - Page 1
- Introduction
After
having already tested two upcoming 52X recorders we were pleased to see another
manufacturer shipping a drive with same specs (52X writing, 24X re-writing,
52X reading). The previous ASUS CRW-4816A had offered a good reading/writing
performance but "suffered" in possibly the most important part called
"writing quality". We are testing the new CRW5224 in our usual exhaustive
tests compared with AOpen CRW5224 and SONY CRX220E1. Which recorder is the faster?
- Specifications
The ASUS CRW5224 supports the CAV recording technology for reading/re-writing
and recording. The drive's features according to Nero Info Tool are the following:
The drive supports 52X maximum reading / writing and 24X re-writing speeds.
The buffer is only 2MB and the reading of CD-Text and CD+G is supported. Nero
Info Tool also reports that retrieving of C2 error information is supported
but its accuracy would be examined later. Note that the Mt. Rainier implementation
is present.
FlextraLink and FlextraSpeed technologies are present to prevent the buffer
underrun problems and ensure the burning quality. In addition the DDSSII feature
is an enhanced follow-up to the first generation Double Dynamic Suspension System
developed by ASUS and designed to minimize the vibration caused by the spindle
motor and resonance between components as well as the drive and PC case. Also
the AI Auto Speed Adjustment Technology helps the drive function in the best
status and adjusts its reading speed in accordance with the quality of a variety
of certified media in different formats when reading them.

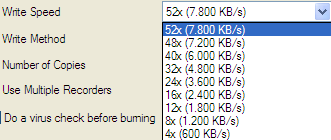

The following pictures show the drive's supported reading/writing speeds:
The official specifications taken from ASUS website are posted below:
Model |
CRW-5224A |
Performance |
Data
Transfer Rate |
CAV
write/ P-CAV rewrite/ CAV read |
Sustained
Data Transfer Rate |
CD
(Read): 52X Max. 7800 KB/sec (CAV) |
DAE:
52X Max. 7800 KB/sec (CAV) |
CD-R
(Write): 52, 48X, 40X, 32X, 24X, 20X, 16X, 12X, 8X, 4X |
CD-RW
(Rewrite): 24X, 16X, 12X, 10X, 8X, 4X, 2X |
Random
Access Time |
100
ms typical @ 1/3 stroke |
Writing Modes: |
TAO
(Disc-At-Once), DAO (Disc-At-Once), DAO-RAW,
SAO (Session-At-Once), Packet Write, Multi-Session, Overburn |
O/S Compatibility |
Windows XP/ NT/ ME/ 2000/ 98/ 98SE, Netware, OS/2 Warp, Linux, SCO UNIX,
MS-DOS, MPC level 3 compliant |
Interface |
ATAPI/
E-IDE (ANSI X3T9.2 90-143.) |
Data Buffer
|
2MB |
Anti-Coaster
Technology |
FlextraLink |
Recording
Technology |
FlextraSpeed |
Bundle Software |
Latest
CD Recording Software |
Audio
Outputs |
Line out Output |
0.7V
rms typical |
Headphone |
0.7V
rms typical |
Disc |
Disc Formats |
CD-DA,
CD-ROM, CD-ROM XA, Photo CD, Mixed Mode CD-ROM, CD-I,
CD-Extra, CD-Text, Video CD, DVCD, Bootable CD |
Disc Diameters |
8
cm and 12 cm |
Recommended
Media |
CD-R |
Acer,
CMC, Maxell, Mitsubishi Chemical, Mitsui, Philips, Princo, Prodisc, Ricoh,
Ritek, SONY, Taiyo Yuden, TDK, Verbatim, YAMAHA
Hitachi Maxwell, MaxMax, CMC |
CD-RW |
Acer,
CMC, Digimaster, Maxell, MaxMax, Mitsubishi Chemical, Plextor, Ricoh, Ritek,
SONY, TDK, Traxdata, Verbatim, YAMAHA |
Reliability |
MTBF |
100,000
Power On Hours |
Operating
Duty Cycle (Read) 20% POH |
Operating
Duty Cycle (Write) 1% POH |
MTTR |
1/2
hour |
Configuration |
Mounting
Orientations |
Vertical and Horizontal (+5o ~ -5o) |
Dimensions
(H/W/D) |
41.5
x 149.0 x 197.5 mm (1.63" x 5.87" x 7.78" ) |
Weight |
997g
(2.2lb) |
- "FlexSpeed" and "DDSS II" technologies
As ASUS explains:
.,
prevents users from buffer underrun problems caused by an empty data buffer,
thereby eliminating the creation of unusable discs. Throughout the recording
process, FlextraLink consistently monitors the data buffer status
to ensure best recording quality. Once the available data drops below 1% of
the total buffer capacity, FlextraLink suspends the recording
and sets a marker at the last written position to avoid recording blocks. As
soon as enough cache data is refilled in, the pickup head repositions itself
to the marker and restarts the recording. FlextraLink uses minimal
system resources so the PC remains full operational and available for other
applications even during recording process.
The
DDSS II is an enhanced follow-up to the first generation Double Dynamic Suspension
System developed by ASUS. The DDSS technology is designed to minimize the vibration
caused by the spindle motor and resonance between components as well as the
drive and PC cases. DDSS II makes tracking and focusing even more precise, and
successfully reduces the vibration and noise caused by high revolution of the
spindle motor.
enhances accuracy and reliability when writing/re-writing across a broad base
of certified media. It continuously monitors the recording media and sets the
optimal writing speeds to ensure best recording quality. The built-in proprietary
AI Auto Speed Adjustment Technology helps the driver function in the best status
when reading across a broad base of certified media in different formats. It
not only continuously monitors the reading media but also sets the optimal reading
speeds. The latter greatly saves power and prolongs driver's life.
- CAV vs. P-CAV
CAV features three main charateristics:
- Higher average recording speed
- Minimum recording time
- Constant motor speed throughout when writing data
CAV recording technology is also known as Full CAV. A CAV drive maintains
a consistent rotation speed that results in different transfer rates. The linear
velocity increases gradually as the read head move across the inner area of
the disk to the outer area. A CAV drive also features minimum recording time
and higher average recording speed.
The read head of a Z-CLV drive stops writing data, and buffer underrun happens
every time when the motor changes speeds. Linking technologies, such as FlextraLink,
BURN-Proof, JustLink, SafeBurn, to name a few, activates when buffer underrun
occurs. On the other hand, no extra links will be produced during the recording
process of a CAV drive that runs at a constant rotation speed, allowing a smooth
transferal to higher speeds. Recording time is therefore greatly reduced, while
average recording speed improves significantly.
P-CAV (Partial Constant Angular Velocity) Recording Technology
P-CAV recording technology is a cooperation of CLV and CAV that offers a stable
and reliable way to record data. The transfer rate will continue to increases
until the drive reaches its maximum writing speed, and then maintains a constant
rate comparable to that of CLV technology. A P-CAV drive is considered by many
to be an ideal solution for Audio CDs and pre-mastering a disk for mass duplication.
The technology also brings stable recording quality since no links are produced
during recording process.
- Recording/Re-writing speeds
The ASUS CRW5224 supports 52X with the use of CAV recording technology. As
Nero CD Speed reviled, the drive starts writing at 23.43X and gradually ends
at the 52.98X speed, giving an average of 40.10X. This result indicates that
the ASUS CRW5224 could be the faster recorder but the actual recording tests
were slightly different...
With other CD-R media, the drive's average writing speed is lower down to
39.75X:
The drive at 48X recording speed, uses P-CAV recording technology:
At the 32X, the P-CAV recording technology is also present:
With Imation 80min 48X media, the drive lowered its recording speed down to
32X in order to avoid write error:
When using a US-RW media, the CRW5224 will start burning at 22.09X and gradually
finishes the task at 23.89X. That gives an average of 23.84X, which is an almost
equal performance to other P-CAV US-RW writers (Plextor PX-W4824A and YAMAHA
CRW-F1).
- The package
We
got the retail package that includes: the drive, one piece of ASUS 52X CD-R
(real manufacturer ACER), one piece of ASUS 24X US-RW (real manufacturer Mitsubishi
Chemicals), one IDE cable and mounting screws. The recording software comes
from Ahead (Nero v5.5.9.2/InCD 3.37). There is also a printed manual in two
languages (English-Traditional Chinese) and a quick installation guide in 12
languages. The drive hits the market really soon at the retail price of less
than $100.
On the front of the drive there are the "ASUS", the "HS-RW"
and the "52x24x52" logos. Despite the fact that the drive supports
the 24X writing speed, the "US-RW" log is not present on the bezel.
You will also find two leds, the eject/play buttons and the headphone input
jack/volume selector:
On the rear panel of the drive you can see the usual connectors (IDE interface,
power), the jumpers for making the drive Master/Slave, the SPDIF output connector
and the analog/digital output connectors. The 3 jumpers on the left are used
to setup the drive's working mode, PIO-4Mode (default) or UDMA33. For setting
up the UDMA33 mode you just have to remove the middle jumper:
- Inside the drive
After removing the bottom screws we can see the internal of the drive:
The drive is based upon MediaTek chipsets. Below are the chipsets used at the
ASUS 48x and 52x drives:
ASUS CRW4816A
|
ASUS CRW5224
|
|
|
|
|
IIn case you wonder if you can use the firmware from ASUS CRW-5224A on the
ASUS CRW-4816A in order to gain the higher recording speeds you will be disappointed.
Despite the succeful flash, the drive will not be recognized from the OS...
- Installation
The ASUS CRW5224 was installed as a Master in the primary IDE BUS. The drive
worked in UDMA-33 mode. After booting, it identified itself as an "ASUS
CRW-5224A". We used Nero v5.5.9.17, CloneCD v4.0.1.10 and Ahead InCD
v3.51.16 for the recording tests. The drive is a November 2002 model with firmware
revision v1.10 installed. After all tests finished, ASUS send us a newer firmware
revision (v1.16) that fixed some of the problems we had noticed. The new firmware
(v1.16) was used to re-test all the negative issues.
ASUS CRW-5224A will automatically reduce the maximum writing speed (52x) when
it detects lower quality media for burning. There is no way to overpass this.
Other manufacturers (Plextor, Yamaha, and Sony) offer the option to write all
media at the maximum speed by disabling the media check quality system. Despite
a possible argument of some users, ASUS doesn't support this, but offers a safer
way to burn media. The pictures below come from Nero when non-52X certified
blank media was inserted.
2. Data Reading Tests
ASUS
CRW5224 CD-RW -Page 2
Data Tests
- Pressed CD results: (Click to see the CD
Speed Graph)
The faster drive is ASUS with an average reading speed of 39.54X. This is
the faster result ever measured from a CD-RW drive. The SONY220E1 follows with
38.25X and the AOpen CRW5224 comes last with 38.05X.
The seek times of the ASUS drive are higher than SONY's. In the random seek
mode, the difference is really small, but the drive seems to be slower in the
1/3 and full modes.
- CDR Media: (Click to see the CD
Speed Graph )
With CD-R media, the ASUS drive continues to lead the race, while the SONY
CRX220E1 has improved its performance to 39.33X.
The ASUS drive lowered its seek times with CD-R media and got
the first place.
- RW media: (Click to see the CD
Speed Graph)
The ASUS drive read the US-RW media at 31.15X. The AOpen takes the lead with
a full 48X CAV reading performance.
3. CD Error Correction Tests
ASUS
CRW5224 CD-RW - Page 3
Error Correction Tests
In the following tests we examine the reading error correction capabilities
of the ASUS CRW5224.
- EAC CD-R Test Disc
- Test Results (Max Reading)
Errors total
|
Num: 36614
|
Errors (Loudness) dB(A)
|
Num: 38171
|
Avg:-85.6 dB(A)
|
Max: -53.3 dB(A)
|
Error Muting Samples
|
Num: 91
|
Avg:1 Samples
|
Max: 1 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max:0 Samples
|
Total Test Result
|
80.5 points (of 100.0 maximum)
|
In the maximum ripping speed, the ASUS CRW5224 showed a good behaviour and
got a score of 80.5 out of 100 (perfect).
- ABEX TCD-721R
- Test Results (Max speed)
Errors total
|
Num: 194891
|
Errors (Loudness) dB(A)
|
Num: 219353
|
Avg:-79.4 dB(A)
|
Max: -35.8 dB(A)
|
Error Muting Samples
|
Num: 6643
|
Avg: 1.0 Samples
|
Max: 9 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Total Test Result
|
74.5 points (of 100.0 maximum)
|
The ABEX 721R test disc is very hard for many drives and the ASUS CRW5224 doesn't
seem to be an exception. The good news is that the error spikes kept below -35.8
dB(a) at several points, while there were no skip samples. The result is an
average performance and the score for the drive is 74.5 points.
- ABEX TCD-726
- Test Results (Max Speed)
Errors total
|
Num: 11141
|
Errors (Loudness) dB(A)
|
Num: 25854
|
Avg:-87.3 dB(A)
|
Max: -53.7 dB(A)
|
Error Muting Samples
|
Num: 316
|
Avg: 1 Samples
|
Max: 2 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Total Test Result
|
76.9 points (of 100.0 maximum)
|
The ASUS drive performed adequately and gave a few errors getting a 76.9 score.
- Conclusion
Test Disc
|
Reading Speed
|
ASUS CRW5224
|
Score
|
EAC CD-R
|
Max
|
80.5
|
ABEX TCD-721R
|
Max
|
74.5
|
ABEX TCD-726
|
Max
|
76.9
|
Average Score
|
77.30
|
The ASUS CRW5224 gets an average score of 77.30 out of 100, which is lower
than what AOpen CRW5224 and SONY CRX220E1 got in previous tests.
- C2 Information accuracy
- Test Results (MAX Speed)
The C2 accuracy of the ASUS CRW5224 seems to reach the perfection with a 100%
score. The results from EAC analyser seems to agree:
Test Disc
|
Reading Speed
|
ASUS CRW5224
|
Score
|
EAC CD-R
|
Max
|
100
|
ABEX TCD-721R
|
Max
|
99.9
|
ABEX TCD-726
|
Max
|
100
|
Average Score
|
100
|
Below are the C2 error graphs as produced by EAC analyser software...
4. CloneCD Reading Tests
ASUS
CRW5224 CD-RW - Page 4
CloneCD Reading
Tests
- Procedure
We used CloneCD and 4 original CDs - Serious Sam 2 (SafeDisc 2), Desperados
(LaserLock 2), V-Rally 2 Expert (SecuROM 2) and NBA Jam Extreme (PSX) - in order
to test the reading times of the drive. We also tested the reading performance
with backups of the original CDs, since the reading speed varies between original
and backup media. The following picture show the drive(s) reading/writing features
as CloneCD reports:
- PSX Pressed Media
For this test we used the PSX game 'NBA Jam Extreme' and we ripped the image
to the HD with CloneCD. The ASUS drive is very fast and needs only 43 secs to
finish the task.
- SafeDisc v.2 Results
The ASUS CRW5224 has an average performance but it is much faster from the
two competitors of the test. The SD2 disc was read in only 6mins.
- LaserLock v.2 Results
The ASUS CRW5224 still takes the lead with LaserLock 2 protected
discs.
- SecuROM v.2 Results
All drives can read SubChannel data from Data/Audio tracks. The ASUS CRW5224
completed this test faster than the other drives, the SONY CRX220E1 comes second
and the AOpen CRW5224 follows with a lower performance.
5. DAE Tests
ASUS
CRW5224 CD-RW - Page 5
DAE Tests
- DAE features
- Pressed AudioCD
The ASUS CRW-5224A is probably the faster CD-RW with pressed Audio discs.
The drive goes up to 52X DAE and gives an average of 37.6X, leaving the AOpen
and Sony drives the second and third positions, respectively.
- Audio CD-R media
With CD-R media, the ASUS drive is still fast enough but the AOpen CRW5224
got the first place with 35.5X. Note that with the CD-R Test disc, the ASUS
drive reported 212 errors in a specific point...
- EAC Secure Extract Ripping mode
EAC's secure extract ripping mode results, which ensures maximum produced
WAV quality. Note that for each drive we used the built-in detection function:
Tested Drives
|
Average DAE Speed (X)
|
Pressed
|
CDR
|
ASUS CRW5224
|
17.4
|
13.2
|
Sony CRX220E1
|
10.9
|
10.5
|
AOpen CRW5224
|
26.4
|
26.4
|
- Advanced DAE test
All the drives got a "100" score. The DAE speed for
the ASUS drive is 37.66X, while the AOpen CRW5224 gets the second place with
35.5X.
- Bad CDR Media results
We used CD DAE software to rip the whole disc (756539616 sectors) to the
hard disk.
|
Average Speed (X)
|
Errors
|
Errors Of Total Disc (%)
|
ASUS CRW5224
|
Recognizes the disc contents, cannot
rip!
|
Sony CRX220E1
|
Read error at 0.2% of total disc
|
AOpen CRW5224
|
8.3
|
177229355
|
23.43
|
The condition of the disc can be considered as very bad, so the purpose of
this test is not to get the best results with any read errors, but to estimate
the capabilities of the drive. The ASUS drive does recognize the disc contents
but cannot rip any track at all.
- Ripping 90 and 99mins AudioCDs
Tested drives
|
Ripping up to
|
ASUS CRW5224
|
Can read up to 99 minutes
|
Sony CRX220E1
|
Can read up to 98 minutes
|
AOpen CRW5224
|
Can read up to 99 minutes
|
- Reading/Ripping Protected AudioCDs
For the test procedure we used 2 protected AudioCDs, which we
tested in both recognition and ripping (with EAC BURST mode) processes:
* Pressed AudioCD with Sony Key2Audio (Celine Dion - New Day Has
Come)
* Pressed AudioCD with Cactus Data Shield 200 (Natalie Imbruglia - White Lilies
Island)
|
Key2Audio
|
CDS200
|
EAC
|
ASUS CRW5224
|
Cannot recognize disc contents
|
Rips entire disc but under burst mode
several tracks reported with errors
|
Sony CRX220E1
|
Recognizes disc contents but cannot rip |
AOpen CRW5224
|
Rips entire disc but under burst mode several
tracks reported with errors
|
The ASUS CRW5224 was able to rip CDS200 protected Audio discs, while none of
the tested drive could even recognize Key2Audio protected discs...
6. CDR Tests
ASUS
CRW5224 CD-RW - Page 6
CDR Tests
The ASUS CRW5224 supports 4X, 8X, 12X, 16X (CLV), 24X (P-CAV), 32X (P-CAV),
40X (P-CAV), 48X (P-CAV) and 23-52X (CAV) writing speeds.
The drive's FlextraSpeed system will reduce the maximum writing speed in order
to maintain the best writing quality for the inserted media. User will notice
this effect within Nero Burning Rom since the maximum burning speed will be
lower than the drive's maximum supported.
- Recording Tests

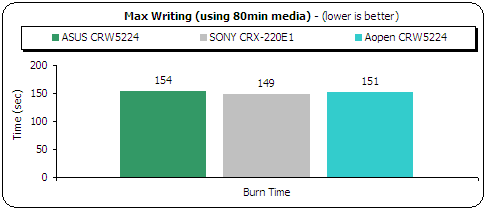

The amount of the data we burned was 704MB (80:01:26), for all the drives.
The SONY CRX220E1 finishes the task first with 149secs (2:29mins) and the AOpen
CRW5224 comes second with 151secs (2:31mins, while the ASUS CRW5224 takes the
last place with 154secs (2:34mins). The CDSpeed writing test may showed 40.10X
average writing speed, but the drive manages to finish last.
How can this be possible? The answer can be found when monitoring the burning
process. The drive takes too much time during the lead-in area (almost 20secs).
The track starts recording after 23secs so the final burning time is higher
than we could expected. This behaviour wasn't noticed for the 48X writing speed.
Maybe with future firmware upgrades, ASUS CRW5224 could become faster...

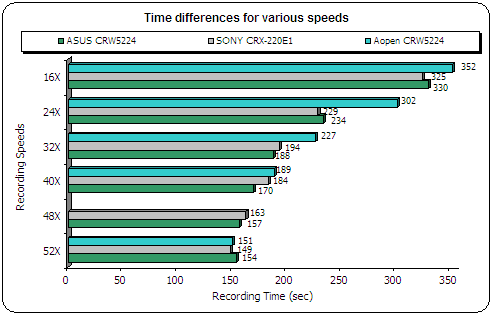

The above graph shows the differences of the recording performances for the
three tested drives in all the supported writing speeds. The results are the
best we had for each speed. As we can see the AOpen CRW5224 was the slower drive
in almost all the recording speeds with an exception at the maximum (52X) where
it takes the second place. The SONY CRX220E1 is the faster drive for the 16X,
24X and 52X recording speeds. The ASUS CRW5224 takes the lead at 32X, 40X and
48X.
Below is a table that shows the time differences compared to the 16X (CLV)
recording speed for each drive. We also calculated the % difference for each
recording speed (% gain in recording time).
Recording Speeds
|
SONY CRX-220E1
|
ASUS CRW5224
|
AOpen CRW5224
|
Time difference
|
% difference
|
Time difference
|
% difference
|
Time difference
|
% difference
|
52X
|
176
|
54.15
|
176
|
53.33
|
201
|
57.10
|
48X
|
162
|
49.84
|
173
|
52.42
|
-
|
-
|
40X
|
141
|
43.38
|
163
|
48.48
|
163
|
46.31
|
32X
|
131
|
40.31
|
142
|
43.03
|
125
|
35.51
|
24X
|
96
|
29.54
|
96
|
29.09
|
50
|
14.20
|
User will notice a major performance difference compared to the 16X (CLV) at
40X, 48X and 52X recording speeds. On the other hand, the difference between
the 48X and the 52X speeds is only 3secs!
- ASUS CRW5224 recording results
- Overburning Tests
The ASUS drive can overburn up to 99mins without any problems.
- CD-Text Results
Both drives can read/write CD-Text without any problems.
- CloneCD Writing Tests
The CloneCD software reports that the drive supports the DAO-RAW feature.
With the use of proper media, DAO-RAW writing can be performed at 52X (CAV).
For checking the drive's EFM correction status, we used 3 different game titles
with different SafeDisc 2 versions with the latest software patches installed.
We used the drive as reader/writer at maximum reading/recording speed. Two discs
were burned for each game. One disc was burned with PadusDJ and the other with
CloneCD (Amplify Weak Sectors On). The results are posted in the following table:
Game Title
|
Tested Drive
|
SD2 Build
|
Settings
|
CloneCD (Amplify Weak Sectors On)
|
PadusDJ
|
Max Payne v1.05
|
Creative 52X
CD-ROM
|
v.2.50.020
|
Ok
|
TEAC 40X
CD-ROM
|
BTC DV316
DVD-ROM
|
Serious Sam - The Second Encounter v1.07
|
Creative 52X
CD-ROM
|
v.2.60.052
|
Ok
|
TEAC 40X
CD-ROM
|
BTC DV316
DVD-ROM
|
The Sims - Unleashed
|
Creative 52X
CD-ROM
|
v2.80.010
|
Ok
|
TEAC 40X
CD-ROM
|
BTC DV316
DVD-ROM
|
As you can see, both the Sony and the AOpen drives didn't have any problems
backup SafeDisc v2.5x.xx ~ 2.80.xx builds.
7. Writing Quality Tests
ASUS
CRW5224 CD-RW - Page 7
Writing Quality Tests

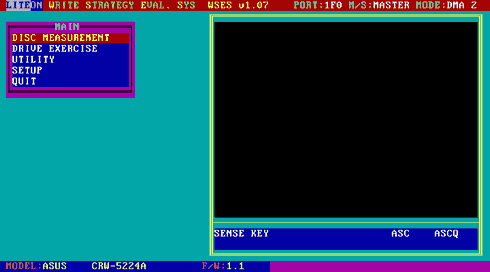

We used various media and burn them at the maximum allowed writing speed.
The writing quality scores are in the following table:
- Firmware v1.10
Brand
|
Maximum Writing Allowed speed
|
C1 Errors
|
Average Burning Time (mins)
|
Comments
|
Max
|
Average
|
CMC Magnetics
80min 48X
|
52X
|
28
|
1.1
|
2:37
|
|
That's 80min 48X
|
48X
|
13
|
1.0
|
2:43
|
SKC 80min 16X
|
52X
|
16
|
1.7
|
2:37
|
Mitsubishi Chemicals
80min 48X
|
48X
|
37
|
1.2
|
2:42
|
Ciba Plasmon
80min 48X
|
48X
|
25
|
1.5
|
2:40
|
Mitsui 80min 40X
|
40X
|
23
|
0.5
|
2:50
|
Imation 80min 48X
|
52X
|
35
|
5.5
|
2:40
|
TDK D-VIEW
80min 24X
|
52X
|
89
|
0.8
|
2:42
|
C2 errors at the end of the disc
|
TY 80min 32X
|
32X
|
42
|
1.9
|
3:08
|
|
ASUS 80min 52X
|
52X
|
72
|
2.9
|
2:39
|
RITEK 80min 48X
|
52X
|
17
|
0.9
|
2:37
|
The ASUS CRW5224 showed a good overall writing quality. The drive's best score
comes with Mitsui SGUltra 80min 40X written at 40X. The next best result comes
with RITEK 80min 48X written at 52X. The TDK D-VIEW 24X (based upon RITEK) doesn't
seem to handle very well the increased 52X writing speed and had C2 errors at
the end. Several other quality media are not supported for the 52X maximum speed
such as:
- Hitachi-Maxell 80min 40X->32X
- Intenso 80min 40X->40X
- Fuji 80min 40X ->16X
- C1/C2 Error rate from ASUS 80min 52X @ 52X
- C1/C2 Error rate from TDK D-VIEW 80min 24X @ 52X
- C1/C2 Error rate from RITEK 80min 48X @ 52X
- C1/C2 Error rate from Imation 80min 48X @ 52X
- Firmware v1.16
Brand
|
Maximum Writing Allowed speed
|
C1 Errors
|
Average Burning Time (mins)
|
Comments
|
Max
|
Average
|
CMC Magnetics
80min 48X
|
52X
|
34
|
3.2
|
2:34
|
|
SKC 80min 16X
|
52X
|
22
|
2.4
|
2:35
|
|
Mitsui 80min 48X
|
48X
|
150
|
28.8
|
2:37
|
|
Imation 80min 48X
|
52X
|
36
|
5.8
|
3:05
|
The drive allowed 52X speed but drops
at 32X
|
RITEK 80min 48X
|
52X
|
22
|
1.1
|
2:37
|
|
The ASUS CRW5224 with the newer v1.16 firmware was slight faster only with
CMC Mangetics media. The recording time lowered by 3 secs. The drive with Imation
80min 48X media may permitted 52X writing speed, but lowered its recording speed
down to 32X. Lastly with Mitsui 48X media we had good recording timing results
but not very good writing quality.
- C1/C2 Error rate from Mitsui 80min 48X @ 48X
Below is the supported list for the 52X/48X writing speeds with the v1.16
firmware revision:
Manufacturer
|
ID
|
Capacity
|
52X writing speed
|
|
97 15 05
|
795974
|
|
97 15 17
|
795973
|
|
97 22 67
|
795974
|
|
97 26 07
|
795974
|
|
97 24 15
|
795974
|
|
97 32 19
|
743001
|
|
97 26 11
|
795973
|
|
97 32 05
|
745900
|
|
97 26 66
|
795973
|
|
97 26 26
|
795973
|
|
97 32 19
|
795971
|
|
97 26 66
|
795971
|
|
97 26 66
|
751000
|
|
97 24 16
|
95974
|
|
97 26 07
|
795971
|
|
97 15 17
|
795970
|
|
97 26 07
|
795964
|
48X writing speed
|
|
97 26 56
|
795974
|
|
97 26 66
|
795974
|
|
97 15 12
|
795974
|
|
97 26 57
|
795974
|
|
97 24 01
|
795974
|
|
97 32 19
|
795972
|
|
97 34 23
|
795973
|
|
97 34 23
|
795974
|
|
97 18 67
|
795974
|
|
97 27 18
|
795974
|
|
97 28 15
|
795972
|
|
97 17 06
|
795974
|
|
97 17 16
|
795974
|
|
97 27 66
|
741203
|
|
97 27 66
|
795971
|
|
97 31 01
|
744501
|
|
97 27 58
|
795974
|
|
97 18 65
|
795974
|
In the following table you can see the manufacturing details of the media
we used for our tests.
Name
|
Real Manufacturer
|
ID Code
|
Capacity
|
Mitsubishi Chemicals 80min 48x
|
Mitsubishi Chemicals
|
97m34s23f
|
79:59.73
|
Intenso 80min 40x
|
Prodisc
|
97m32s19f
|
79:59.74
|
Mitsui 80min 40X
|
Mitsui
|
97m27s58f
|
79:59.74
|
Taiyo Yuden 80min 32X
|
Taiyo Yuden
|
97m24s01f
|
79:59.73
|
Ciba Plasmon 80min 48X
|
Plasmon
|
97m27s18f
|
79:59.74
|
Imation 80min 32X
|
CMC Mangetics
|
97m26s66f
|
79:59:74
|
RITEK 80min 48X
|
RITEK
|
97m15s17f
|
79:59:70
|
ASUS 80min 52X
|
ACER
|
97m22s67f
|
79:59:74
|
CMC Magnetics 80min 48X
|
CMC Mangetics
|
97m26s66f
|
79:59:71
|
TDK D-VIEW 80min 24X
|
RITEK
|
97m15s17f
|
79:59:73
|
That's 80min 48X
|
Taiyo Yuden
|
97m24s01f
|
79:59.72
|
Hitachi Maxell 80min 40X
|
Hitachi-Maxell
|
97m25s29f
|
79:59:74
|
Fuji 80min 40X
|
Fuji Photo Film
|
97m26s45f
|
79:59:73
|
- Compatibility with WSES software
The ASUS CRW5224 can work with the WSES software.
Unfortunately the drive dos not work with the C1/C2 measurement test
But it works great with the Read C1/C2 error count. Below is the test result
with the written TDK D-VIEW test disc. Notice that C2 errors occurred at 78:23:04mins.
8. RW/Packet Writing Tests
ASUS
CRW5224 CD-RW - Page 8
RW Writing Tests
The ASUS CRW5224 supports the new 24X US-RW (P-CAV) recording technology.
With US-RW media, the drive supports a variety of recording speeds starting
from 10X (CLV), 12X (CLV), 16X (CLV) and of course 24X (P-CAV).
With HS-RW media, it supports the 4X, 8X, 10X and the 12X (CLV) writing speeds.
For the burning tests, we burned a full 74mins disc with all the drives.
The results are showed in the following chart. We used the maximum supported
speed for each drive.
The ASUS CRW5224 makes the surprise and finishes first with US-RW media.
The drive needed only 219secs (3:39mins). The YAMAHA comes second with 221secs
while the PleXWriter PX-W4824A third with 224secs. The AOpen CRW5224 and SONY
CRX-220E1 are slower due to the use of the CAV recording and cannot compete
the ASUS CRW5224. With HS-RW media, we had the following results:
Drive
|
Writing Time
|
SONY CRX220E1
|
402
|
AOpen CRW5224
|
409
|
ASUS CRW5224
|
402
|
- Packet Writing Tests
We used Ahead InCD v3.51.61 for the packet writing tests.
The formatted disc had 534 MB of free space. We copied a 403 MB file (403.147
kbs) from a Hard Disk (on the same PC as the writers) to the formatted RW media
using Windows Explorer (we dragged and dropped) and we completed the test more
than once, to eliminate any possible time measurement faults and user errors.
The ASUS CRW5224 perfomed very good under packet writing mode with the US-RW
media. The YAMAHA and Plextor drive leads the packet writing tests. With HS-RW
media, the ASUS CRW5224 had also very good reading/writing performance and shares
the second place with SONY CRX220E1:
Drive
|
Average Writing Speed (X)
|
Average Reading Speed (X)
|
SONY CRX220E1
|
8.58
|
20.45
|
AOpen CRW5224
|
8.67
|
24.37
|
ASUS CRW5224
|
8.58
|
21.41
|
9. Mt. Rainier Tests
ASUS
CRW5224 CD-RW - Page 9
Mt. Rainier Tests
- InCD Tests
For testing the Mt. Rainier performance, we used was InCD v3.51.61 by Ahead
Software. After the format process, we immediately started the recording process
(drag & drop). When the drive finished, we started the reading process back
to the HD.
Drive
|
Average Writing Speed (X)
|
Average Reading Speed (X)
|
YAMAHA
CRW-F1DX
|
12X HS-RW
|
7.08
|
20.31
|
24X US-RW
|
12.7
|
20.89
|
PleXWriter PX-W4824A
|
10X HS-RW
|
6.36
|
16.60
|
24X US-RW
|
12.80
|
16.13
|
SONY CRX220E1
|
12X HS-RW
|
8.27
|
19.75
|
24X US-RW
|
10.61
|
19.75
|
AOpen CRW5224
|
12X HS-RW
|
1.35
|
22.46
|
24X US-RW
|
2.25
|
23.14
|
ASUS CRW5224
|
12X HS-RW
|
-
|
-
|
24X US-RW
|
9.50
|
11.56
|
The ASUS CRW5224 worked only with US-RW under MRW format and not with HS-RW.
The drive either locked or InCD reported an error:
- EasyWrite tests
- Introduction
The Philips Easy Write tests checks the quality level of the Mt Rainier implementation.
The drive accepted the EasyWrite test suite commands so we had the chance to
test its performance. However failed in all tests only few minutes after the
test started...
- Basic Command Test Results
Below are the test results using MRW PartA v1.60 validation script.
|
Tests
|
ASUS CRW5224
|
Mandatory Startup Basic Command Set
|
MRW Feature
|
Passed
|
SMART Feature
|
Supported Profiles
|
Mode Sense Pages
|
Background Format
|
Minimal Blank
|
Check Format Capacity for Mode 24 Hex
|
Format Unit
|
Read Disc Information
|
FAILED : Disc Type is Mode 2 Form 1 XA
Disc : Failed
|
Check Write Mode Page
|
Not Yet Implemented !
|
Set Write Mode Page Parameters
|
Passed
|
Test GAA Addressing
|
Set GAA Area Addressing
|
Passed
|
Write Data Outside GAA Area
|
Write Data Inside GAA Area
|
Synchronize Cache
|
Read Data Inside GAA Area
|
Verify Data Inside GAA Area
|
Set DMA Area Addressing
|
Read/Write in Ice
|
Read Track Info
|
Passed
|
Write in Iced Area (Address = 128205
- Blocks = 236)
|
Synchronize Cache
|
Read & Verify Iced Area (Address
= 128205 - Blocks = 236)
|
Early Eject
|
Eject Disc with Background Format in
Progress
|
Passed
|
Close Track/Session
|
Eject Disc
|
Script Validation Time
|
|
00 Hours 01 Minutes 03 Seconds 512 MSec
|
The ASUS CRW5224 fails to complete the test...
- Light/Heavy Rock'N'Roll Tests (Normal HS-RW Media)
Below are the test results using the Light & Heavy Rock'N'Roll validation
scripts. The ASUS CRW5224 stops after performing only 4-5 actions.
Tests
|
AOpen CRW5224
|
SONY CRX-220E1
|
ASUS CRW5224
|
Light R&R
|
Ok!
|
FE
|
FE
|
Light R&R Test Duration
|
02 Hours 54 Minutes 31 Seconds 522 MSec
|
00 Hours 17 Minutes 29 Seconds 429 MSec
|
|
Heavy R&R
|
FE
|
Ok!
|
FE
|
Heavy R&R Test Duration
|
00 Hours 47 Minutes 12 Seconds 216 MSec
|
02 Hours 20 Minutes 13 Seconds 849 MSec
|
|
Remarks:
Time: hours:mins:secs:msecs
FE = Fatal Error
- Light/Heavy Rock'N'Roll Tests (Defect HS-RW Media)
Below are the test results using the Light & Heavy Rock'N'Roll validation
scripts. The ASUS CRW5224 stops after performing only 4-5 actions.
Tests
|
AOpen CRW5224
|
SONY CRX-220E1
|
ASUS CRW5224
|
Light R&R
|
Ok!
|
FE
|
FE
|
Light R&R Test Duration
|
02 Hours 10 Minutes 28 Seconds 178 MSec
|
00 Hours 29 Minutes 36 Seconds 815 MSec
|
|
Heavy R&R
|
FE
|
Ok!
|
FE
|
Heavy R&R Test Duration
|
00 Hours 47 Minutes 11 Seconds 152 MSec
|
03 Hours 41 Minutes 53 Seconds 354 MSec
|
|
Remarks:
Time: hours:mins:secs:msecs
FE = Fatal Error
10. Conclusion
ASUS
CRW5224 CD-RW- Page 10
Conclusion
Positive (+)
|
Negative (-)
|
- Supports 52X (CAV) CD-R and 24X (P-CAV)
US-RW writing speeds
- Supports "FlextraLink", "FlextraSpeed" and DDSSII
technologies
- Supports Mt. Rainier format
- Very good US-RW writing performance
- Good writing quality
- Drive is less noisy than others 52X recorders
- Can return C2 error information with very high accuracy!
- Fastest DAE ripping speeds ever measured with pressed discs
- Can rip CDS200 protected Audio discs
- Very good CloneCD reading performance
- Supports DAO-RAW writing and can backup SafeDisc v2.80.010 builds
- Supports reading/writing of SubChannel Data
- Supports CD-Text (reading/writing)
- Supports Overburning (up to 99mins)
- Supports UDMA33 connection interface
- Retail package contains Nero, 52X CD-R, 24X US-RW media at the price
of <$120
|
- Takes too much time during the lead-in
area resulting higher burning time
- Average CD error correction capabilities
- Mt. Rainier performance with HS-RW needs improvement
- Drive doesn't pass EasyWrite test suite tests
- Cannot rip Key2Audio protected Audio discs
- Cannot rip our BAD DAE test disc
|
The ASUS CRW5224 is the first 52X retail drive that came in our labs. We had
already tested two other 52X recorders but they were engineer samples. So we
were curious how the real 52x recorder would perform. The answer in general
can be concluded in one word "satisfactory". The ASUS CRW5224 is the
faster reader we ever tested either with data/audio pressed discs. The noise
was lower than we had seen with other 52x recorders due to DDSSII system. The
FlextraSpeed seems working correctly since we didn't have a single coaster while
at the same time the writing quality was kept at good levels. With specific
media, the drive even allowed 52X writing speed after started recording dropped
down to 32X to maintain the writing quality. That's a major improvement over
the previous CRW-4816A series.
Continuing mentioning the positives, the drive can rip CDS200 protected audio
discs, can retrieve C2 error information with very high accuracy, is able to
rip protected discs fast enough and of course to backup them accurately, up
to SD2 v2.80.010 builds. Audiophiles will find CD-Text and overburning features
useful and its superb DAE performance with pressed discs (and slight lower with
CD-R) will lower the ripping time. Lastly, the retail package contains all the
necessary items for someone to start recording (CD-R, US-RW media, etc.).
On the negative side, the burning times are higher than other 52X recorders
at the maximum speed by few seconds, but that's not a real problem. Users who
have damaged any CD-R media may face problems reading them since the drive denied
ripping our DAE CD-R test disc, while it also refused to rip Key2Audio protected
discs. Lastly, the drive won't work properly with HS-RW under Mt. Rainier format
neither passes the EasyWrite test suite tests.
Concluding we can say that we are satisfied with ASUS's CRW5224 despite the
various glitches. We hope that ASUS engineers will fix the remaining issues
with a new firmware upgrade for the future buyers. The drive is already sold
at a price of less than $125. If you are looking for a fast and fairly priced
recorder then you have a good choice. The ASUS CRW5224 gets our "SAFE BUY"
award for its performance/price ratio.
