Appeared on: Tuesday, January 28, 2014

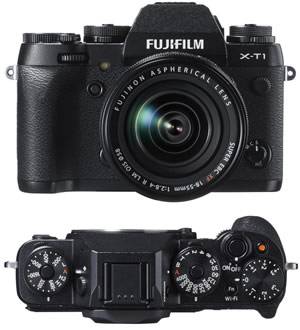

New Fujifilm X-T1 Interchangeable Lens Camera Shipping Next Month

Fujifilm today announced the X-T1, the latest addition to the X-Series range.

The X-T1 features evolved SLR-style handling, mechanical dials and weather-resistance (when paired with a weather resistant X mount lens), together with all the features of an X-Series camera, such as compact size, mobility and high-speed performance.

What?s more, its newly developed electronic viewfinder (0.77x magnification) is almost indistinguishable from an optical viewfinder thanks to its fast display speed (0.005 sec lag time, 2.36m dot resolution OLED).

The camera is powered by the EXR Processor II and its 16.3 megapixel X-Trans CMOS II sensor. The X-Trans CMOS II sensor phase detection AF built in so a response of just 0.08 seconds is achieved. The EXR Processor II allows a 0.5 second start-up time, 0.05 second shutter time lag and a 0.5 second shooting interval. Image quality is further enhanced by the inclusion of a Lens Modulation Optimiser (LMO) for interchangeable lens cameras. This echnology has been made possible by the integrated development of lens, sensor and processor and is based on the optical performance and characteristics of each individual lens to maximise its resolving power.

It also allows up to 8 frames per second with tracking AF and is the first model to be compatible with SDXC UHS-II format memory cards.

Fujifilm is launching three weather-resistant zoom lenses to complement the X-T1 camera, these will all be available during 2014, with the XF18-135mm launching in June. The three lenses are the XF18-135mmF3.5-5.6 R OIS WR, XF16-55mmF2.8 R OIS WR and the XF50-140mmF2.8 R OIS WR.

Shipping in February, Fujifilm is selling the X-T1 for $1,300 for the body alone, or $1,700 when combined with an 18-55mm f/2.8-4 lens.

Model Name

FUJIFILM X-T1

Number of effective pixels

16.3 million pixels

Image sensor

23.6mm?15.6mm(APS-C)X-Trans II CMOS with  primary colour filter
Total number of pixels: 16.7 million pixels

Sensor Cleaning system

Ultra Sonic Vibration

Storage media

SD memory card / SDHC memory card / SDXC (UHS-II) memory card

File format  (still image)

JPEG (Exif Ver 2.3 ,
RAW (RAF format), RAW+JPEG
(Design rule for Camera File system compliant, DPOF-compatible)

(movie)

Movie File Format : MOV
Movie Video Compression : H.264
Audio : Linear PCM  Stereo

Number of recorded pixels

L:<3:2>4896x3264 / <16:9>4896x2760 / <1:1>3264 ? 3264
M:<3:2>3456x2304 / <16:9>3456x1944 / <1:1>2304 ? 2304
S:<3:2>2496x1664 / <16:9>2496x1408 /  <1:1>1664 ?1664
<Motion Panorama>
L  Vertical:2160x9600 /  Horizontal:9600x1440
M    Vertical:2160x6400 /  Horizontal:6400x1440

Lens mount

FUJIFILM X mount

Sensitivity

AUTO (Control available up to ISO6400)
Equivalent to ISO 200  - 6400   (Standard Output Sensitivity)
Extended output sensitivity : Equivalent to ISO 100, 12800, 25600 and 51200

Exposure control

TTL 256-zone metering, Multi / Spot / Average

Exposure mode

Programmed AE/ Shutter Speed priority AE/ Aperture priority AE / Manual exposure

Exposure compensation

-3.0EV - +3.0EV, 1/3EV step
(movie recording : -2.0EV - +2.0EV)

Image Stabiliser

Supported with OIS type lenses

Face Detection

Yes

Shutter type

Focal Plane Shutter

Shutter speed

(P mode) 1/4 sec. to 1/4000 sec.,
(All other modes) 30 sec. to 1/4000 sec.
Bulb (max.60min.)
Time 1/2  to 30 sec
Synchronized shutter speed for flash :1/180 sec or slower

Continuous shooting

Approx. 8.0 fps  (JPEG : max. approx. 47 frames)
Approx. 3.0 fps  (JPEG :up to the capacity of the card)
* Recordable frame number may vary depending on the type of memory card used.
* The frame rate varies with shooting condition and the number of images recorded.

Auto bracketing

AE Bracketing (±1/3EV, ±2/3EV, ±1EV)
Film Simulation Bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100% ・ 200% ・ 400%)
ISO sensitivity Bracketing (±1/3EV, ±2/3EV, ±1EV)
White balance Bracketing (±1, ±2, ±3)

Focus (mode)


Single AF / Continuous AF/MF Distance Indicator

(type)

Intelligent Hybrid AF (TTL contrast AF/TTL phase detection AF) , AF assist illuminator available

(AF frame selection)

Area (EVF/LCD : 49 areas with 7x7)/ Multi
* Changeable size of AF frame among 5 types

White balance

Automatic scene recognition
Custom / Colour temperature selection (K)
Preset: Fine / Shade / Fluorescent light (Daylight) / Fluorescent light (Warm White) /
Fluorescent light (Cool White) / Incandescent light / Underwater

Self-timer

10sec. / 2sec. Delay

Interval timer shooting

YES
Setting: Interval, Number of shots, Starting time

Flash

External flash EF-X8 (included ) (Super Intelligent Flash)
Guide number :  approx. 8(ISO100・m) / approx 11 (ISO200 ・m)

Flash modes

Activated when external flash is connected
Red-eye removal OFF: Auto / Forced Flash / Slow Synchro / Suppressed Flash / Rear-curtain Synchro / Commander
Red-eye removal ON: Red-eye Reduction Auto / Red-eye Reduction & Forced Flash / Suppressed Flash / Red-eye Reduction & Slow Synchro / Red-eye Reduction & Rear-curtain Synchro / Commander
 *Red-eye removal is active when Face Detection is set to ON.

Hot shoe

Yes (Dedicated TTL Flash compatible)

Viewfinder

0.5-in., approx.2,360K-dot OLED colour viewfinder
Coverage of viewing area vs. capturing area :  approx. 100%
Eye point  : approx. 23 mm (from the rear end of the camera's eyepiece)
Diopter adjustment : -4m-1 to +2m-1
Magnification :0.77x with 50 mm lens (35 mm format equivalent) at infinity and diopter set to  - 1.0 m?1)
Diagonal angle of view : approx. 38° (Horizontal angle of view :approx.  31°)
Built-in eye sensor

LCD monitor

3.0-in, aspect ratio 3:2, approx. 1,040K-dot,  Tilt type colour  LCD monitor
(Approx. 100% coverage)

Movie recording

Full HD  1920x1080 60p/30p Continuous recording : up to approx. 14 min.
HD  1280x 720 60p/30p Continuous recording : up to approx. 27min.
* Use a card with SD Speed Class with "Class10" or higher.

Mode dial

Film Simulation mode

10 type (PROVIA/STANDARD, Velvia/VIVID, ASTIA/SOFT, PRO Neg Hi, PRO Neg. Std, MONOCHROME, MONOCHROME+Ye FILTER, MONOCHROME+R FILTER, MONOCHROME+G FILTER, SEPIA)

Dynamic range setting

AUTO(100-400%), 100%, 200%, 400%

Advanced filter

Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple)

Other photography  functions

Auto Red-eye Removal, Setting (Colour, Sharpness, D-range, Gradation), Select custom setting,  Motion panorama, Colour space,  Framing guideline, Frame No. memory, Histogram display, Preview depth of focus, Lens Modulation Optimizer, Pre-AF, Focus check, Focus Peak Highlight, , Digital Split Image*3, Electronic level, Multiple exposure, Interval timer shooting,   Release priority/Focus priority selection, Function button setting, (RAW, Movie, etc.), ISO AUTO control, Instant AF setting (AF-S/AF-C)

Playback  functions

RAW conversion, Image rotate, Red-eye reduction, Photobook assist, Erase selected frames, image search, Multi-frame playback (with micro thumbnail), Slide show, Mark for upload, Protect, Crop, Resize, Panorama, Favourites

Wireless transmitter (standard)

IEEE 802.11b/g/n (standard wireless protocol)

 (access mode

Infrastructure

Wireless function

Geotagging / Wireless communication (Image transfer) / View & Obtain Images / Remote camera shooting / PC Autosave

Other functions

PictBridge, Exif Print, Language selection, Time difference, High Performance mode, Silent mode

Video outputs

USB2.0(High-Speed) / micro USB terminal
* connectable with Remote Release RR-90 (sold separately)        &nb sp;

HDMI mini connector (Type C)

 Others

Microphone/shutter release input: Φ2.5mm, stereo mini connector

Power supply

NP-W126 Li-ion battery (included)

Dimensions

129.0 (W) mm x 89.8(H) mm x 46.7(D) mm / 5.0 in. (W) x 3.5 in. (H) x 1.8 in. (D)
(Minimum depth: 33.4 mm/ 1.3 in.)

Weight

Approx. 440g / 15.4 oz. (including battery and memory card)

Approx. 390 g / 13.7 oz. (excluding accessories, battery and memory card)

Operating Temperature

-10℃ -  +40℃

Operating Humidity

10 - 80%  (no condensation)

Battery life  for still images

Approx 350 frames (When XF35mmF1.4R is set, LCD monitor/viewfinder on,
and supplied flash EF-X8 not attached)

Battery life for movies

Consecutive movie recording : Approx. 103 min. (Face detection is set to OFF)
*Individual movies cannot exceed approx. 14 min on Full HD mode, and approx. 27 min on HD mode in length.

Starting up period

Approx. 0.5 sec, when High Performance mode set to ON
Approx. 1.0 sec, when High Performance mode set to OFF
  * FUJIFILM research

Accessories included

Li-ion Battery NP-W126
Battery Charger BC-W126
Shoe-mounted flash unit EF-X8
Shoulder strap
Body cap
Metal strap clip
Protective cover
Clip attaching tool
Hot shoe cover
Tall-orientation battery grip connector cover
Sync terminal cover
CD-ROM (Viewer software, RAW File Converter etc.
Owner's manual         &n bsp;         &nbs p;                     &n bsp;         &nbs p;
